General
1.0 lb (450 g)
Maps & Memory |
|
| Waypoints/favorites/locations | 5000 |
|---|---|
| Track points | 50,000 |
| Tracks | 50 |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| Has built-in receiver | |
| Supports WAAS | |
Optional Map Support |
|
| Quickdraw Contours | |
|---|---|
Electrical Features |
|
| Power Input | 12 to 20 Vdc |
|---|---|
| Typical current draw | 0.40 A |
| Max current draw | 1.5 A |
| Power Consumption |
4.8 |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Traditional sonar (dual frequency/beam) | Built-in |
| ClearVü | |
| Frequency | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz |
| Transmit power | 500 W (RMS) |
| Bottom Lock (shows return from the bottom up) | |
| Water Temperature Log | |

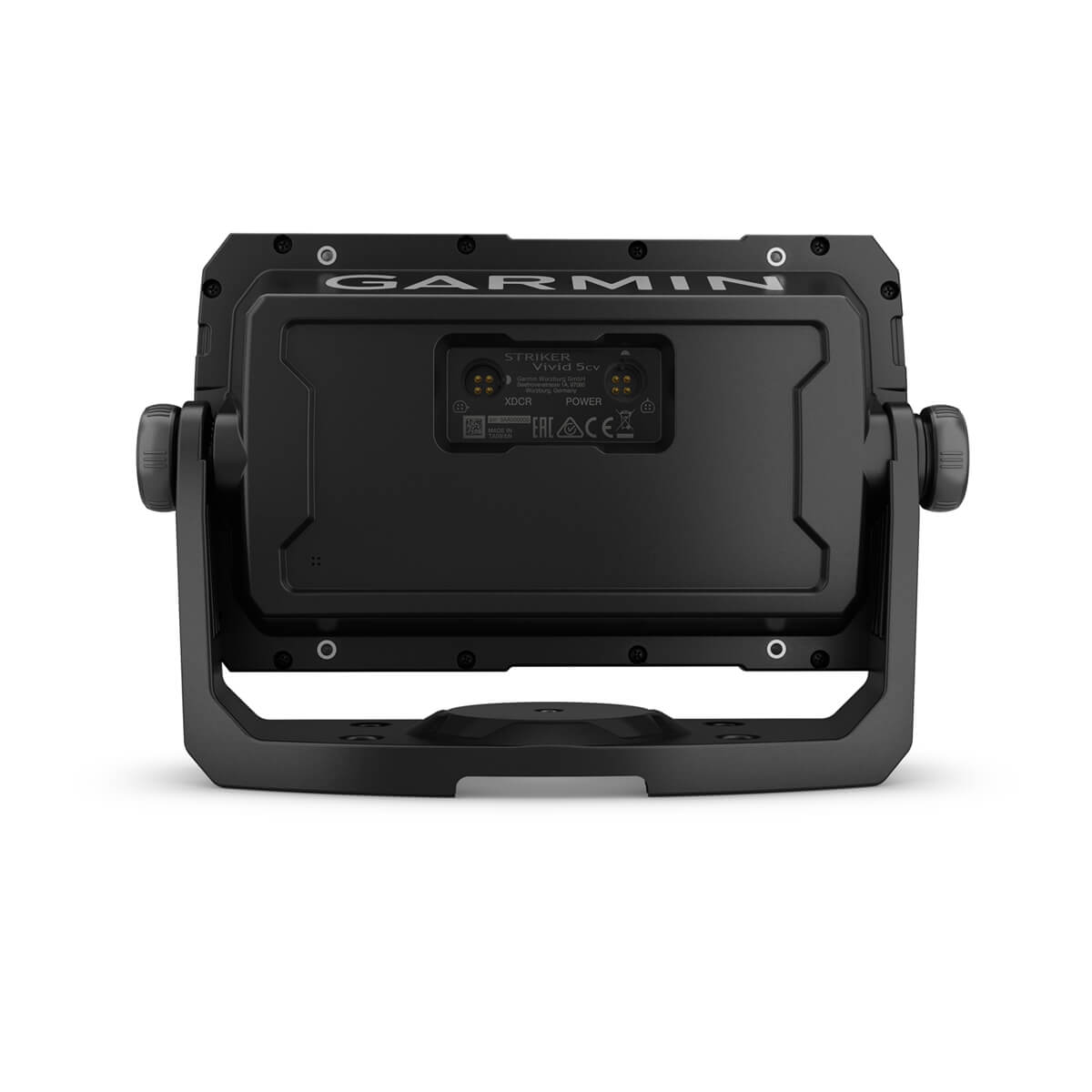

Connections |
|
| 4-pin transducer ports | 1 |
|---|---|
Fishfinder Features |
|
| Split-screen zoom | |
|---|---|
| Fish Symbol ID (helps identify fish targets) | |
| Autogain technology (minimizes clutter; maximizes targets) | |
| Adjustable depth line (measures depth of underwater objects) | |
| A-scope (real time display of fish passing through transducer beam) | |
| Water temperature sensor included | |
| Depth range shading | |
