General

Channels Monoblock/2/3/4/5/6/8 Physical dimensions (Height) 2.05″ (52 mm) Physical dimensions (Width) Monoblock (300 W)/2-Channel: 6.85″ (174 mm)
Monoblock (600 W)/3/4-Channel: 8.52″ (216 mm)
5 (700 W)/ 6-Channel: 10.23″ (260 mm)
Monoblock (1000 W)/5 (1000 W)/8-Channel: 14.73″ (374 mm) Physical dimensions (Depth) 7.09″ (180 mm) Weight

Monoblock (300 W): 3.8 lbs (1.72 kg)
Monoblock (600 W): 6.3 lbs (2.86 kg)
2-Channel: 3.75 lbs (1.7 kg)
3/4-Channel: 4.8 lbs (2.18 kg)
5-Channel (700 W): 6.15 lbs (2.79 kg)
6-Channel: 5.8 lbs (2.63 kg)

Warranty 3 years Operating voltage 11-14.5 VDC (12 V Models)

Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	Monoblock (300 W): 200 W x 1 Monoblock (600 W): 400 W x 1 Monoblock (1000 W): 600 W x 1 2-Channel: 75 W RMS x 2/200 W x 1 (Bridged) 3-Channel: Main: 75 W x 2/Sub: 180 W x 1 4-Channel: 75 W RMS x 4/200 W x 2 (Bridged) 5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1 5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1 6-Channel: 75 W x 6/200 W x 3 (Bridged) 8-Channel: 75 W x 8/200 W x 4 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	Monoblock (300 W): 300 W x 1 Monoblock (600 W): 600 W x 1 Monoblock (1000 W): 1000 W x 1 2-Channel: 100 W RMS x 2 3-Channel: Main: 100 W x 2/Sub: 300 W x 1 4-Channel: 100 W RMS x 4 5-Channel (700 W): Main: 100 W x 4/Sub: 300 W x 1 5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1 6-Channel: 100 W x 6 8-Channel: 100 W x 8
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)	Monoblock (300 W): 160 W x 1 Monoblock (600 W): 300 W x 1 Monoblock (1000 W): 500 W x 1 2-Channel: 60 W x 2/180 W x 1 (Bridged) 3-Channel: Main: 60 W x 2/Sub: 180 W x 1 4-Channel: 60 W x 4/180 W x 2 (Bridged) 5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1 5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1 6-Channel: 60 W x 6/180 W x 3 (Bridged) 8-Channel: 60 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)	Monoblock (300 W): 270 W x 1 Monoblock (600 W): 500 W x 1 Monoblock (1000 W): 800 W x 1 2-Channel: 90 W x 2 3-Channel: Main: 90 W x 2/Sub: 300 W x 1 4-Channel: 90 W x 4 5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1 5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1 6-Channel: 90 W x 6 8-Channel: 90 W x 8
Rated continuous (RMS) power (28.8 V input @ 4 Ohm < 1% THD)	6-Channel (24 V): 75 W x 6/200 W x 3 (Bridged) 8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (28.8 V input @ 2 Ohm < 1% THD)	6-Channel (24 V): 100 W x 6 8-Channel (24 V): 100 W x 8
Rated continuous (RMS) power (25 V input @ 4 Ohm < 1% THD)	6-Channel (24 V): 60 W x 6/180 W x 3 (Bridged) 8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (25 V input @ 2 Ohm < 1% THD)	6-Channel (24 V): 90 W x 6 8-Channel (24 V): 100 W x 8
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs	Monoblock (300 W): > 100 dB Monoblock (600 W): > 87 dB Monoblock (1000 W): > 83 dB 2/4/6-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Main Channels	3/5-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Subwoofer Channel	3/5-Channel: > 103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs	Monoblock (300 W): > 80 dB Monoblock (600 W): > 67 dB Monoblock (1000 W): > 53 dB 2/4/6-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Main Channels	3/5-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Subwoofer Channel	3/5-Channel: > 83 dB
Damping factor @ 4 Ω	Monoblock (300 W): > 120/50 Hz Monoblock (600 W): > 1000/50 Hz Monoblock (1000 W): > 1000/50 Hz 2/4/5/6-Channel: > 150/50 Hz 3-Channel: > 120/50 Hz
Damping factor @ 2 Ω	Monoblock (300 W): > 60/50 Hz Monoblock (600 W): > 500/50 Hz Monoblock (1000 W): > 500/50 Hz 2/4/5/6-Channel: > 75/50 Hz 3-Channel: > 60/50 Hz
THD+N @ Rated Power	Monoblock (300 W/600 W)/2/4/6-Channel: <1% @ 2 Ω per Channel
THD+N @ Rated Power: Main Channels	3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
THD+N @ Rated Power: Subwoofer Channel	3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
Frequency response (+0, -1dB)	Monoblock (300 W): 10 Hz-1 kHz Monoblock (600 W/1000 W): 7 Hz-500 Hz 2/4/6-Channel: 12 Hz-22 kHz
Frequency response (+0, -1dB): Main Channels	3/5-Channel (700 W/1000 W): 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel	3/5-Channel (700 W/1000 W): 10 Hz-1 kHz
Input voltage range @ RCA inputs	Monoblock (300 W/600 W/1000 W)/2/3/4-Channel: 200 mV – 4 V RMS
Fuse rating	Monoblock (300 W): 30 A Monoblock (600 W): 50 A 2-Channel: 20 A 3-Channel: 50 A 4-Channel: 40 A 5-Channel (700 W): 60 A 6-Channel: 50 A 6-Channel (24 V): 30 A 8-Channel (24 V): 40 A Monoblock (1000 W)/5 (1000 W)/8-Channel: 80 A
Recommended fuse type(s)	AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge	2/6 -Channel (24 V): 8 AWG wire Monoblock (300 W/600 W/1000 W)/3/4/5/6/8-Channel (24V): 4 AWG wire

Signal Processing
Filter mode(s): Channels 1 & 2	Monoblock (300 W/600 W/1000 W): Off or Low-Pass only 2/4/6-Channel: Off, Low-Pass or High-Pass 3/5-Channel (700 W/1000 W): Off or High-Pass only
Filter Slope(s): Channels 1 & 2	Monoblock (300 W/600 W/1000 W): 12/24 dB/octave 2/3/4/5 (700 W/1000 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 1 & 2	Monoblock (300 W/600 W/1000 W): 50 Hz-500 Hz 2/3/4/6-Channel: 50 Hz-500 Hz 5-Channel (700 W/1000W): 50 Hz-5 kHz
Filter mode(s): Channels 3 & 4	4/6-Channel: Off, Low-Pass or High-Pass 5-Channel (700 W/1000 W): Off, High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4	4/5 (700 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 3 & 4	4/5 (700 W)/6-Channel: 50 Hz-500 Hz
Filter mode(s): Channels 5 & 6	6-Channel: Off, Low-Pass or High-Pass
Filter Slope(s): Channels 5 & 6	6-Channel: 12 dB/octave
Filter frequency range: Channels 5 & 6	6-Channel: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel	3/5-Channel (700 W/1000 W): Off or Low-Pass only
Filter slope(s): Subwoofer Channel	3/5-Channel (700 W/1000 W): 12/24 dB/octave
Filter frequency range: Subwoofer Channel	3/5-Channel (700 W/1000 W): 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers
Infrasonic filter: Subwoofer Channel	Monoblock (600 W): 30 Hz, defeatable
Remote level control	Optional HD-RLC or MHD-RLC (water-resistant)
Remote level modes	3/5-Channel (700 W/1000 W): All Channels or Sub Channels
Channel input mode switch	3/4-Channel: yes (2/4 Channels) 5-Channel (700 W/1000 W): yes (2/4/6 Channels)
Pass-through preamp output	Monoblock (300 W/600 W)/2/3/4-Channel: Buffered
Source channel selection for PreOuts	3/5-Channel (700 W/1000 W): yes (1&2/Sum/Sub) 4-Channel: yes (1&2/Sum)

Sale

Back to products

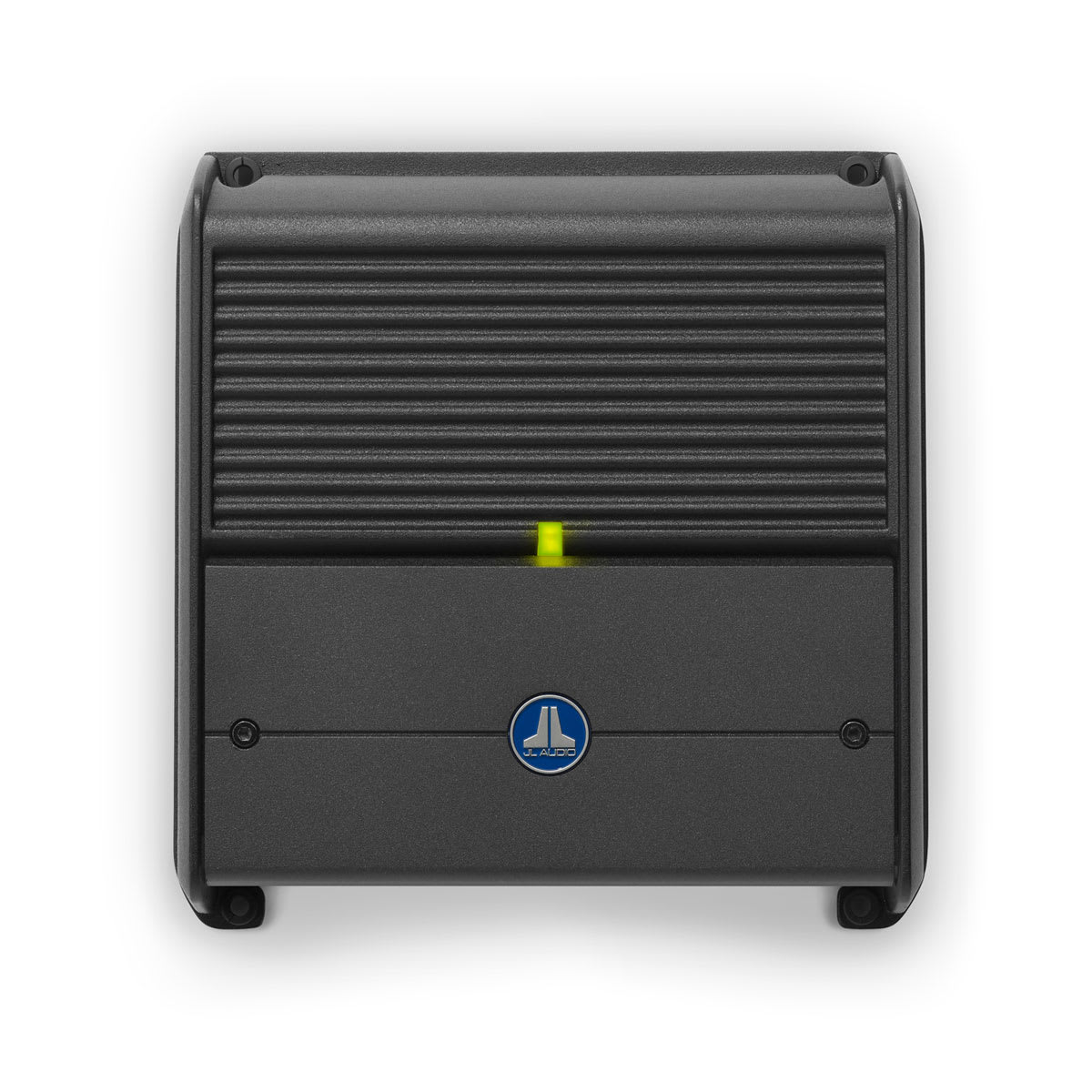

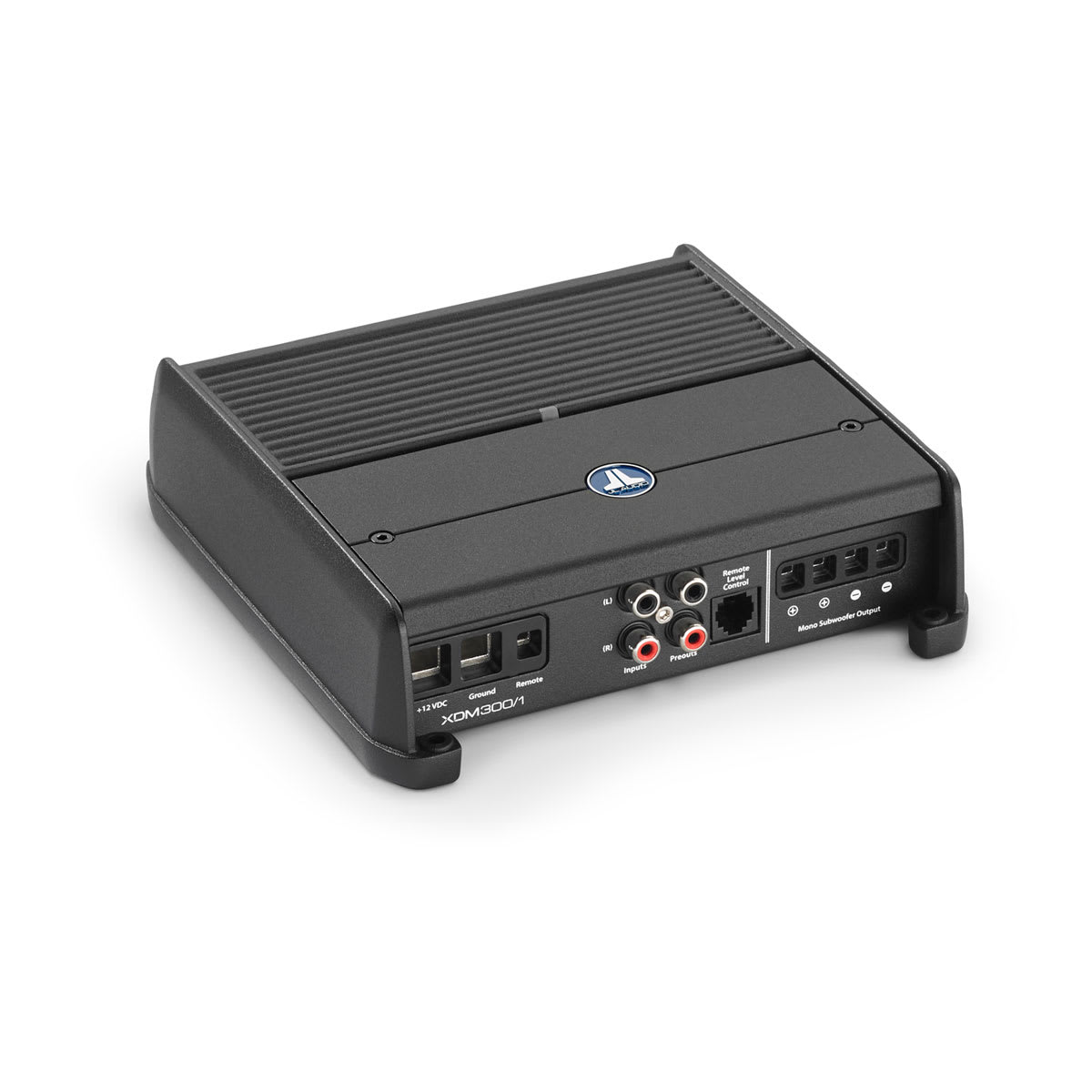

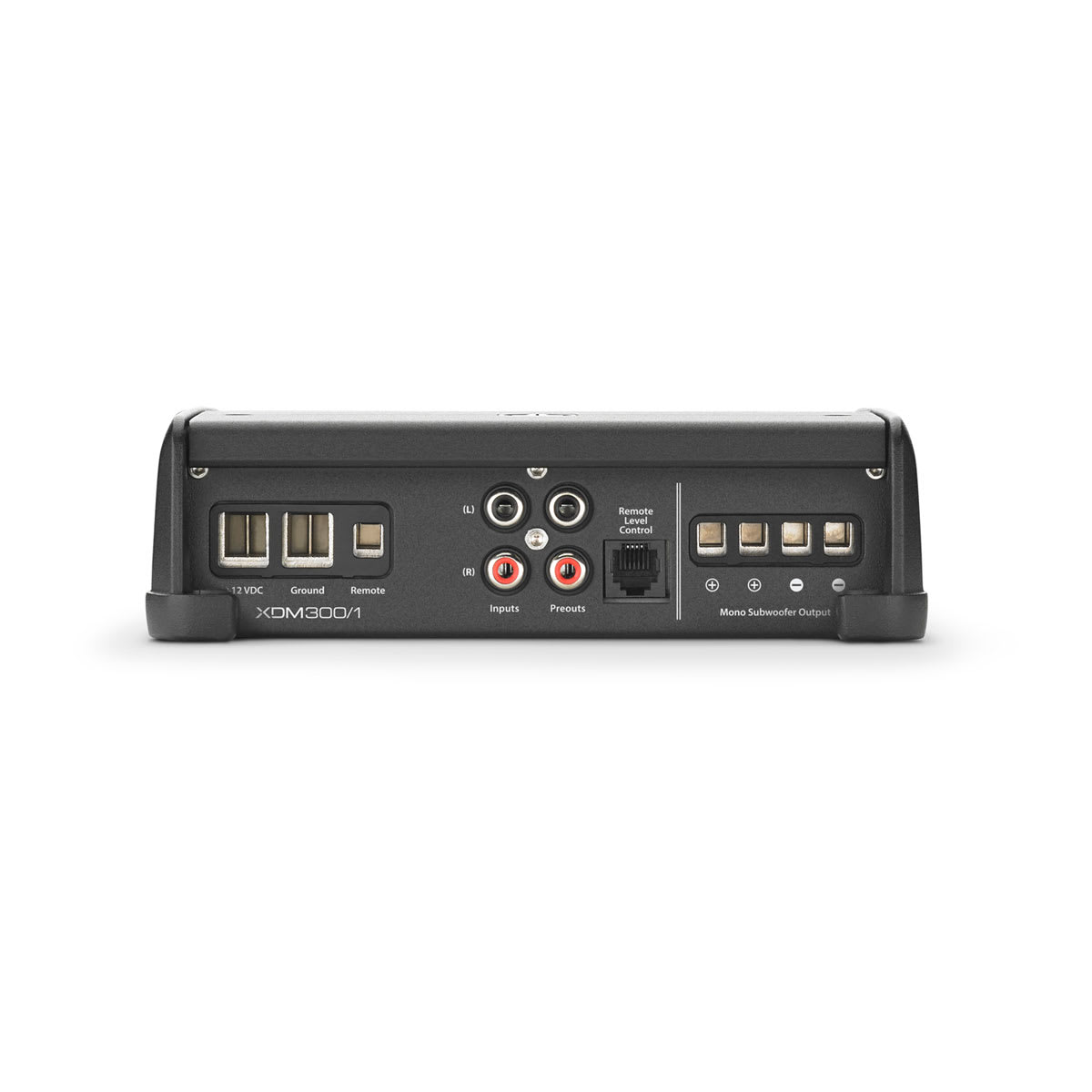

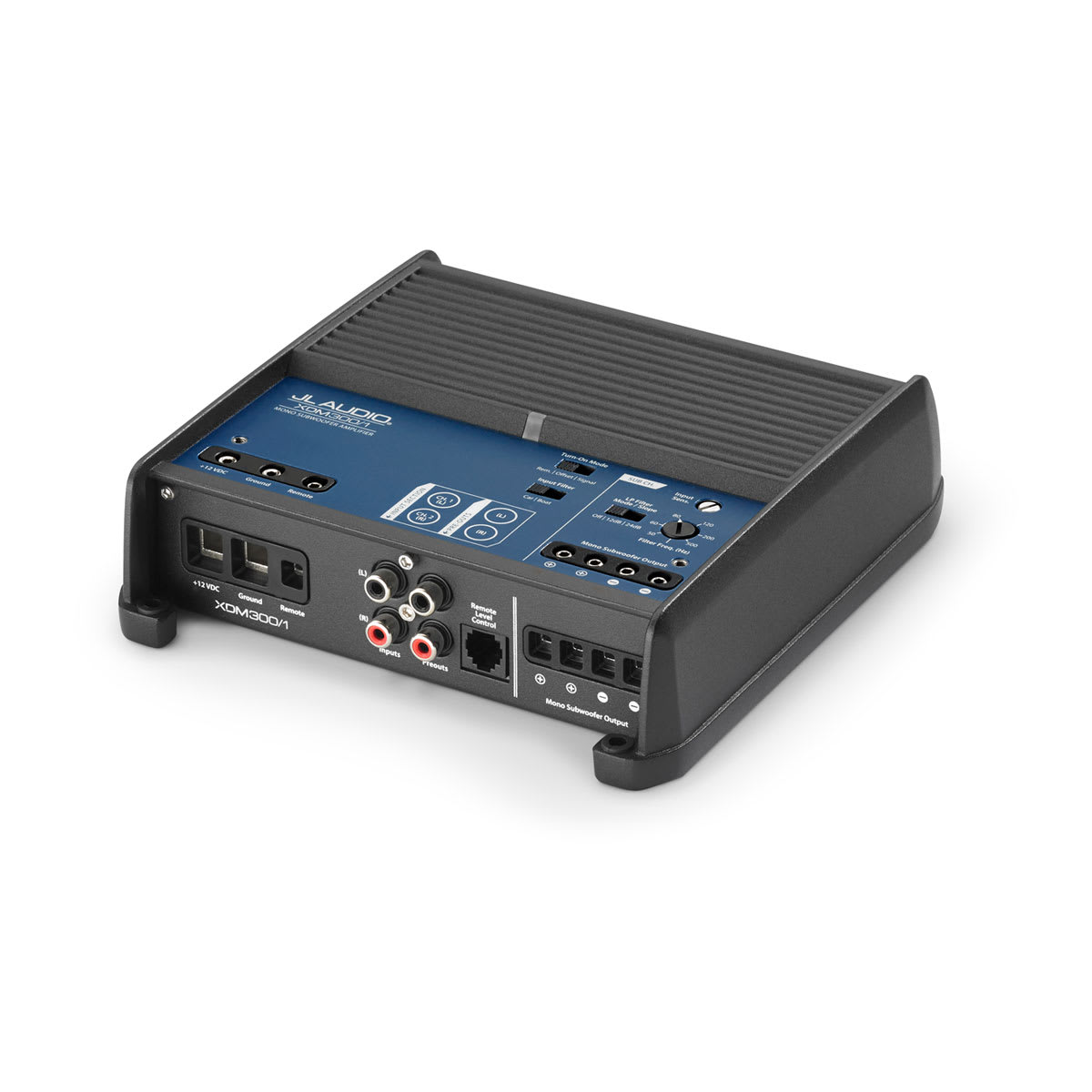

JL Audio® XDM Car and Marine Amplifier

Price range: $159.00 through $183.00

XDM are powerful, compact amplifiers with a dual-mode input filter, studio-grade signal processing, & multiple channel configurations to drive any system.

Channels	1 2 3 4 5 6 8
Total Power	200 W 300 W 400 W 500 W 600 W 700 W 800 W 1000 W
24 V	yes No Clear

Compare

Add to wishlist

Description
Additional information

Description

Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	Monoblock (300 W): 200 W x 1 Monoblock (600 W): 400 W x 1 Monoblock (1000 W): 600 W x 1 2-Channel: 75 W RMS x 2/200 W x 1 (Bridged) 3-Channel: Main: 75 W x 2/Sub: 180 W x 1 4-Channel: 75 W RMS x 4/200 W x 2 (Bridged) 5-Channel (700 W): Main: 75 W x 4/Sub: 180 W x 1 5-Channel (1000 W): Main: 75 W x 4/Sub: 400 W x 1 6-Channel: 75 W x 6/200 W x 3 (Bridged) 8-Channel: 75 W x 8/200 W x 4 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	Monoblock (300 W): 300 W x 1 Monoblock (600 W): 600 W x 1 Monoblock (1000 W): 1000 W x 1 2-Channel: 100 W RMS x 2 3-Channel: Main: 100 W x 2/Sub: 300 W x 1 4-Channel: 100 W RMS x 4 5-Channel (700 W): Main: 100 W x 4/Sub: 300 W x 1 5-Channel (1000 W): Main: 100 W x 4/Sub: 600 W x 1 6-Channel: 100 W x 6 8-Channel: 100 W x 8
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)	Monoblock (300 W): 160 W x 1 Monoblock (600 W): 300 W x 1 Monoblock (1000 W): 500 W x 1 2-Channel: 60 W x 2/180 W x 1 (Bridged) 3-Channel: Main: 60 W x 2/Sub: 180 W x 1 4-Channel: 60 W x 4/180 W x 2 (Bridged) 5-Channel (700 W): Main: 60 W x 4/Sub: 180 W x 1 5-Channel (1000 W): Main: 60 W x 4/Sub: 360 W x 1 6-Channel: 60 W x 6/180 W x 3 (Bridged) 8-Channel: 60 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)	Monoblock (300 W): 270 W x 1 Monoblock (600 W): 500 W x 1 Monoblock (1000 W): 800 W x 1 2-Channel: 90 W x 2 3-Channel: Main: 90 W x 2/Sub: 300 W x 1 4-Channel: 90 W x 4 5-Channel (700 W): Main: 90 W x 4/Sub: 300 W x 1 5-Channel (1000 W): Main: 90 W x 4/Sub: 600 W x 1 6-Channel: 90 W x 6 8-Channel: 90 W x 8
Rated continuous (RMS) power (28.8 V input @ 4 Ohm < 1% THD)	6-Channel (24 V): 75 W x 6/200 W x 3 (Bridged) 8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (28.8 V input @ 2 Ohm < 1% THD)	6-Channel (24 V): 100 W x 6 8-Channel (24 V): 100 W x 8
Rated continuous (RMS) power (25 V input @ 4 Ohm < 1% THD)	6-Channel (24 V): 60 W x 6/180 W x 3 (Bridged) 8-Channel (24 V): 90 W x 8/180 W x 4 (Bridged)
Rated continuous (RMS) power (25 V input @ 2 Ohm < 1% THD)	6-Channel (24 V): 90 W x 6 8-Channel (24 V): 100 W x 8
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs	Monoblock (300 W): > 100 dB Monoblock (600 W): > 87 dB Monoblock (1000 W): > 83 dB 2/4/6-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Main Channels	3/5-Channel: > 104 dB
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Subwoofer Channel	3/5-Channel: > 103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs	Monoblock (300 W): > 80 dB Monoblock (600 W): > 67 dB Monoblock (1000 W): > 53 dB 2/4/6-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Main Channels	3/5-Channel: > 84 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz – 20 kHz noise bandwidth): Analog Inputs – Subwoofer Channel	3/5-Channel: > 83 dB
Damping factor @ 4 Ω	Monoblock (300 W): > 120/50 Hz Monoblock (600 W): > 1000/50 Hz Monoblock (1000 W): > 1000/50 Hz 2/4/5/6-Channel: > 150/50 Hz 3-Channel: > 120/50 Hz
Damping factor @ 2 Ω	Monoblock (300 W): > 60/50 Hz Monoblock (600 W): > 500/50 Hz Monoblock (1000 W): > 500/50 Hz 2/4/5/6-Channel: > 75/50 Hz 3-Channel: > 60/50 Hz
THD+N @ Rated Power	Monoblock (300 W/600 W)/2/4/6-Channel: <1% @ 2 Ω per Channel
THD+N @ Rated Power: Main Channels	3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
THD+N @ Rated Power: Subwoofer Channel	3/5-Channel (700 W/1000 W): <1% @ 2 Ω per Channel
Frequency response (+0, -1dB)	Monoblock (300 W): 10 Hz-1 kHz Monoblock (600 W/1000 W): 7 Hz-500 Hz 2/4/6-Channel: 12 Hz-22 kHz
Frequency response (+0, -1dB): Main Channels	3/5-Channel (700 W/1000 W): 12 Hz-22 kHz
Frequency response (+0, -1dB): Subwoofer Channel	3/5-Channel (700 W/1000 W): 10 Hz-1 kHz
Input voltage range @ RCA inputs	Monoblock (300 W/600 W/1000 W)/2/3/4-Channel: 200 mV – 4 V RMS
Fuse rating	Monoblock (300 W): 30 A Monoblock (600 W): 50 A 2-Channel: 20 A 3-Channel: 50 A 4-Channel: 40 A 5-Channel (700 W): 60 A 6-Channel: 50 A 6-Channel (24 V): 30 A 8-Channel (24 V): 40 A Monoblock (1000 W)/5 (1000 W)/8-Channel: 80 A
Recommended fuse type(s)	AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge	2/6 -Channel (24 V): 8 AWG wire Monoblock (300 W/600 W/1000 W)/3/4/5/6/8-Channel (24V): 4 AWG wire

Signal Processing
Filter mode(s): Channels 1 & 2	Monoblock (300 W/600 W/1000 W): Off or Low-Pass only 2/4/6-Channel: Off, Low-Pass or High-Pass 3/5-Channel (700 W/1000 W): Off or High-Pass only
Filter Slope(s): Channels 1 & 2	Monoblock (300 W/600 W/1000 W): 12/24 dB/octave 2/3/4/5 (700 W/1000 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 1 & 2	Monoblock (300 W/600 W/1000 W): 50 Hz-500 Hz 2/3/4/6-Channel: 50 Hz-500 Hz 5-Channel (700 W/1000W): 50 Hz-5 kHz
Filter mode(s): Channels 3 & 4	4/6-Channel: Off, Low-Pass or High-Pass 5-Channel (700 W/1000 W): Off, High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4	4/5 (700 W)/6-Channel: 12 dB/octave
Filter frequency range: Channels 3 & 4	4/5 (700 W)/6-Channel: 50 Hz-500 Hz
Filter mode(s): Channels 5 & 6	6-Channel: Off, Low-Pass or High-Pass
Filter Slope(s): Channels 5 & 6	6-Channel: 12 dB/octave
Filter frequency range: Channels 5 & 6	6-Channel: 50 Hz-500 Hz
Filter mode(s): Subwoofer Channel	3/5-Channel (700 W/1000 W): Off or Low-Pass only
Filter slope(s): Subwoofer Channel	3/5-Channel (700 W/1000 W): 12/24 dB/octave
Filter frequency range: Subwoofer Channel	3/5-Channel (700 W/1000 W): 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers
Infrasonic filter: Subwoofer Channel	Monoblock (600 W): 30 Hz, defeatable
Remote level control	Optional HD-RLC or MHD-RLC (water-resistant)
Remote level modes	3/5-Channel (700 W/1000 W): All Channels or Sub Channels
Channel input mode switch	3/4-Channel: yes (2/4 Channels) 5-Channel (700 W/1000 W): yes (2/4/6 Channels)
Pass-through preamp output	Monoblock (300 W/600 W)/2/3/4-Channel: Buffered
Source channel selection for PreOuts	3/5-Channel (700 W/1000 W): yes (1&2/Sum/Sub) 4-Channel: yes (1&2/Sum)
