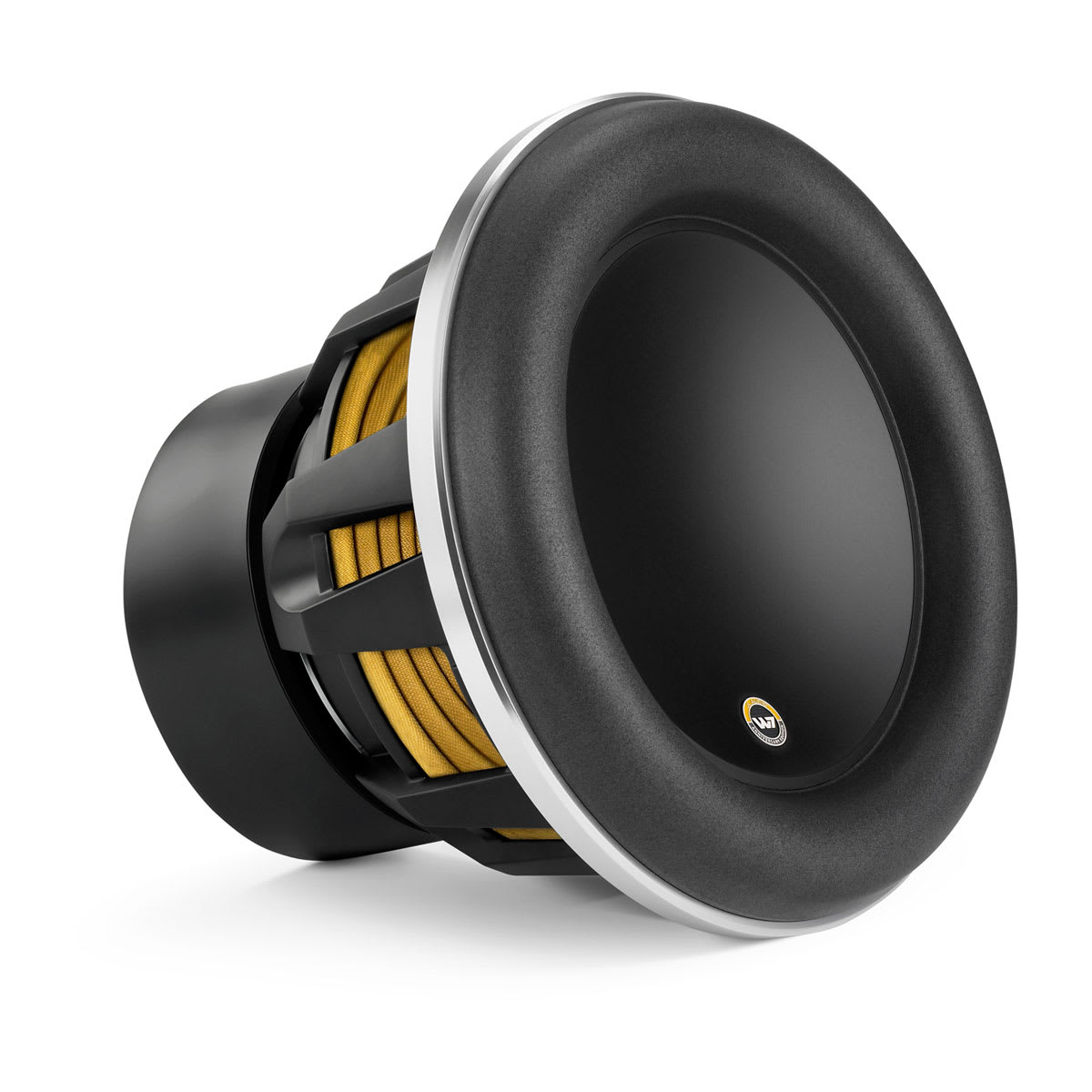

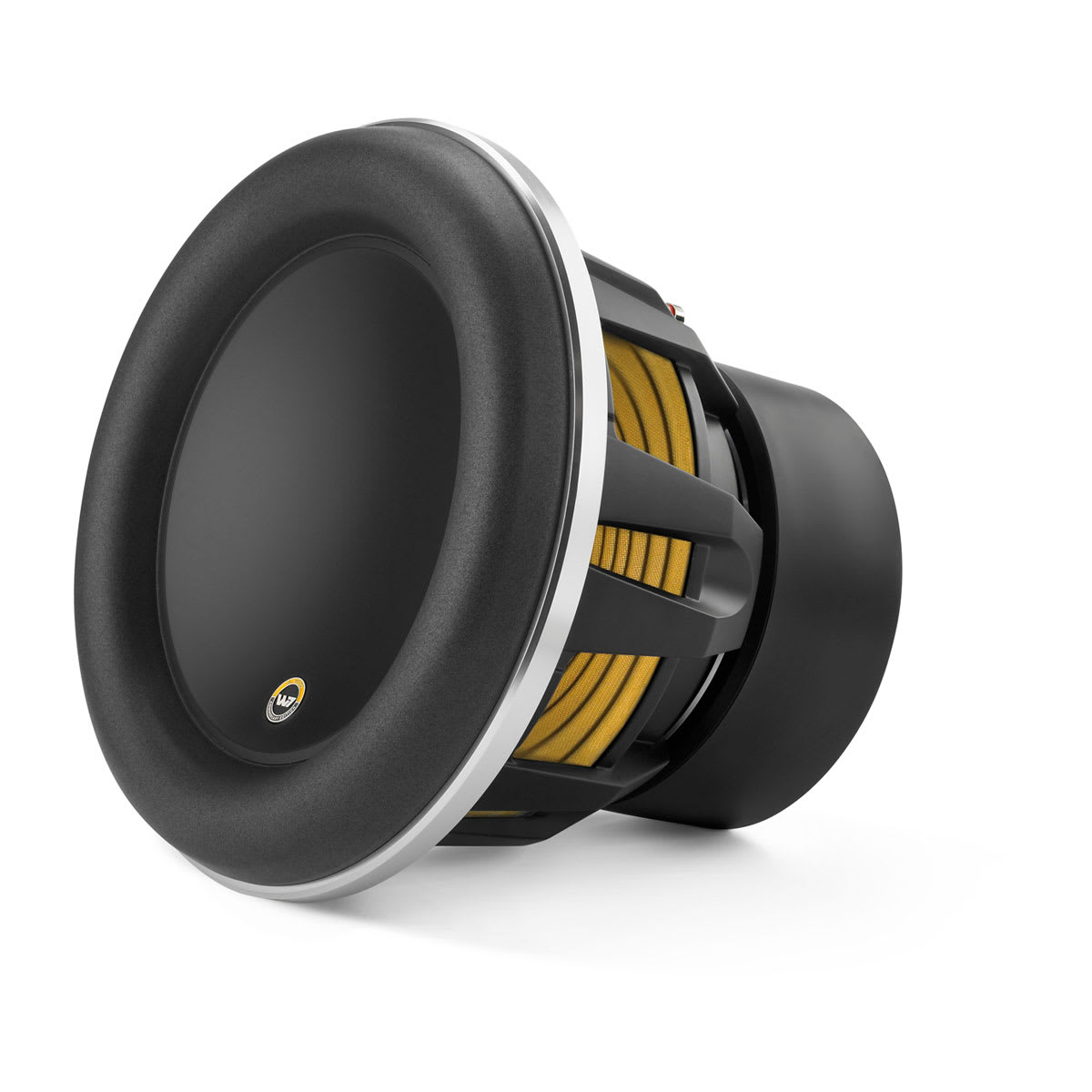

General
10″: 30 lbs (13.6 kg)
12″: 45 lbs (20.4 kg)
13.5″: 52 lbs (23.6 kg)
10″: 750 W
12″: 1000 W
13.5″: 1500 W
10″: 84.3 dB
12″: 86.2 dB
13.5″: 86.3 dB
10″: 300-750 W
12″: 400-1000 W
13.5″: 500-1500 W

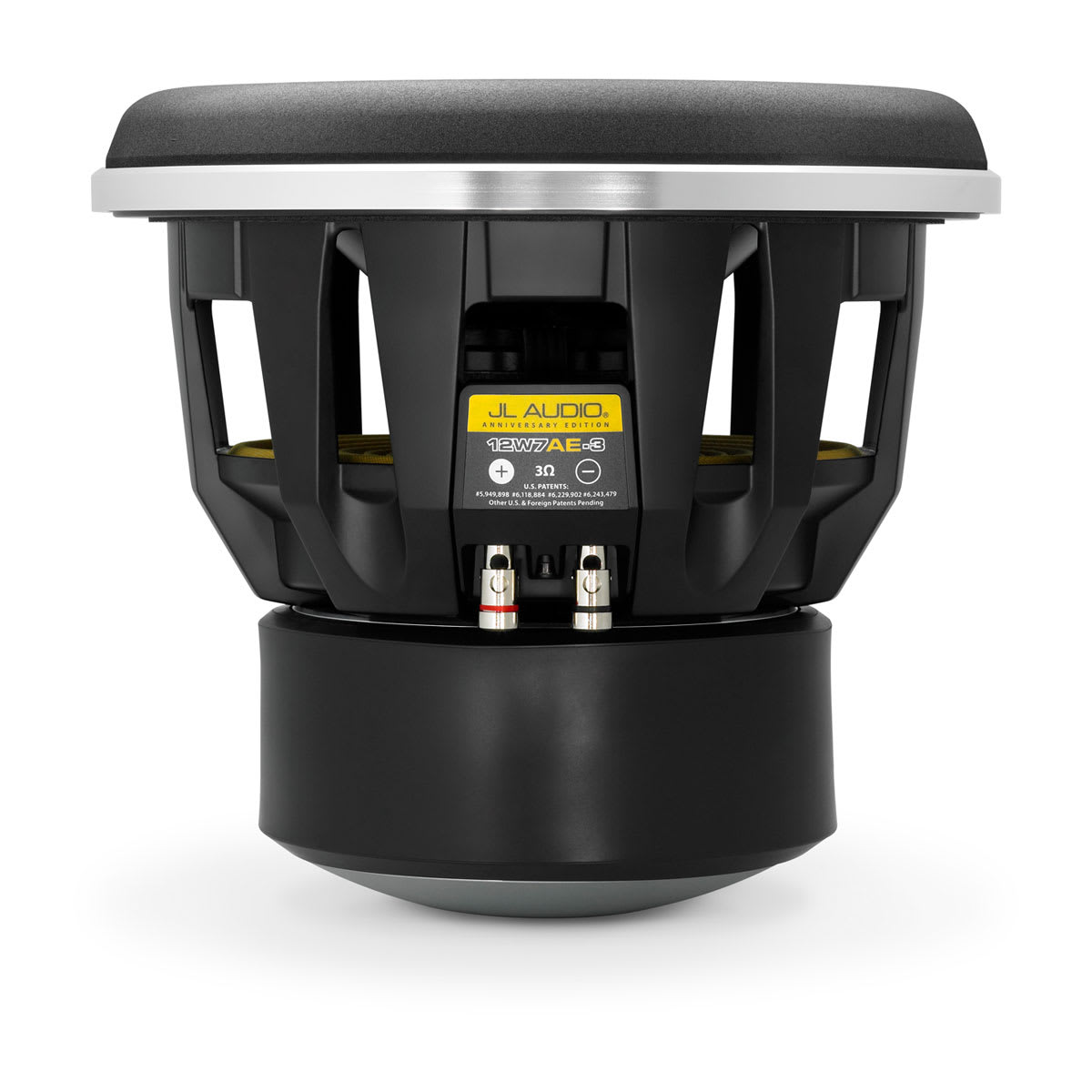

Connections |
|
| Speaker connections | Push-button terminal |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | 8″: 8.5″ (216 mm) 10″: 10.5″ (267 mm) 12″: 12.5″ (318 mm) 13.5″: 14″ (356 mm) |
|---|---|
| Mounting depth clearance | 8″: 6.83″ (173 mm) 10″: 8.0″ (203 mm) 12″: 9.5″ (241 mm) 13.5″: 10.5″ (267 mm) |
| Mounting hole | 8″: 6.94″ (176 mm) 10″: 8.74″ (222 mm) 12″: 10.5″ (267 mm) 13.5″: 11.9″ (302 mm) |
| Bolt hole circle | 8″: 7.39″ (188 mm) 10″: 9.34″ (237 mm) 12″: 11.27″ (286 mm) 13.5″: 12.7″ (323 mm) |
| Motor outer diameter | 8″: 5.79″ (147 mm) 10″: 6.55″ (166 mm) 12″: 7.5″ (191 mm) 13.5″: 8.38″ (213 mm) |
| Driver displacement | 8″: 0.06 cu ft (1.7 L) 10″: 0.09 cu ft (2.5 L) 12″: 0.14 cu ft (4.0 L) 13.5″: 0.21 cu ft (5.9 L) |
Parameters |
|
| Free Air Resonance (FS) | 8″: 35.2 Hz 10″: 30.6 Hz 12″: 27.2 Hz 13.5″: 23.5 Hz |
|---|---|
| Electrical “Q” (Qes) | 8″: 0.654 10″: 0.578 12″: 0.514 13.5″: 0.476 |
| Mechanical “Q” (Qms) | 8″: 9.5 10″: 7.647 12″: 7.807 13.5″: 7.517 |
| Total “Q” (Qts) | 8″: 0.612 10″: 0.537 12″: 0.482 13.5″: 0.448 |
| Equivalent Compliance (Vas) | 8″: 0.61 cu ft (17.4 L) 10″: 1.28 cu ft (36.1 L) 12″: 2.33 cu ft (66.0 L) 13.5″: 3.68 cu ft (104.3 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 8″: 0.75″ (19 mm) 10″: 0.9″ (23 mm) 12″: 1.15 in (29 mm) 13.5″: 1.25 in (32 mm) |
| Reference Efficiency (NO) | 8″: 0.11% 10″: 0.17% 12″: 0.25% 13.5″: 0.27% |
| Effective piston area (SD) | 8″: 38 in² (0.0245 m²) 10″: 59.8 in² (0.0386 m²) 12″: 84 in² (0.0542 m²) 13.5″: 107.35 in² (0.0693 m²) |
| DC resistance (RE) | 8″: 2.78 Ω 10″: 2.75 Ω 12″: 2.47 Ω 13.5″: 2.41 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 0.75″ (19 mm) |
|---|---|
| Front baffle thickness | 8″: 0.75″ (19 mm) 10″/12″/13.5″: 1.0″ (25 mm) |
| Volume (net int.) | 8″: 0.875 cu ft (24.8 L) 10″: 1.25 cu ft (35.4 L) 12″: 1.375 cu ft (38.94 L) 13.5″: 1.875 cu ft (53.1 L) |
| External width (W) | 8″: 12.875″ (327 mm) 10″: 14.5″ (368 mm) 12″: 15″ (381 mm) 13.5″: 16″ (407 mm) |
| External height (H) | 8″: 12.875″ (327 mm) 10″: 14.5″ (368 mm) 12″: 15″ (381 mm) 13.5″: 16″ (407 mm) |
| External depth (D) | 8″: 14″ (356 mm) 10″: 15.375″ (391 mm) 12″: 16.125″ (410 mm) 13.5″: 18.875″ (479 mm) |
| -3 dB cutoff frequency (F3) | 8″: 41.3 Hz 10″: 40.5 Hz 12″: 40.4 Hz 13.5″: 37.4 Hz |
| System resonance (FC) | 8″: 45.9 Hz 10″: 43.5 Hz 12″: 44.7 Hz 13.5″: 40.5 Hz |
| System Q at resonance (QTC) | 8″: 0.798 10″: 0.763 12″: 0.791 13.5″: 0.77 |
Ported Enclosure Specifications |
|
| Wall thickness | 0.75″ (19 mm) |
|---|---|
| Front baffle thickness | 8″: 0.75″ (19 mm) 10″/12″/13.5″: 1.0″ (25 mm) |
| Volume (net int.) | 8″: 1 cu ft (28.3 L) 10″: 1.5 cu ft (42.5 L) 12″: 1.75 cu ft (49.6 L) 13.5″: 2.375 cu ft (67.3 L) |
| External width (W) | 8″: 18.75″ (476 mm) 10″: 21.75″ (552 mm) 12″: 22.75″ (578 mm) 13.5″: 25.875″ (657 mm) |
| External height (H) | 8″: 12.875″ (327 mm) 10″: 14.5″ (368 mm) 12″: 15″ (381 mm) 13.5″: 16″ (406 mm) |
| External depth (D) | 8″: 14″ (356 mm) 10″:1 4.625″ (371 mm) 12″: 15.875″ (403 mm) 13.5″: 17.25″ (438 mm) |
| Internal slot port width | 8″: 1.375″ (35 mm) 10″: 1.5″ (38 mm) 12″: 1.875″ (48 mm) 13.5″: 2.25″ (57 mm) |
| Internal slot port height | 8″: 11.375″ (289 mm) 10″: 13″ (330 mm) 12″: 13.5″ (343 mm) 13.5″: 14.5″ (368 mm) |
| Internal slot port length | 8″: 27.875″ (708 mm) 10″: 24.375″ (619 mm) 12″: 24.75″ (629 mm) 13.5″: 26.25″ (667 mm) |
| Port extension length | 8″: 13.1875″ (335 mm) 10″: 9″ (229 mm) 12″: 7.9375″ (202 mm) 13.5″: 7.875″ (200 mm) |
| Tuning frequency (FB) | 8″: 36.8 Hz 10″: 35.3 Hz 12″: 36.7 Hz 13.5″: 34.6 Hz |
| -3 dB cutoff frequency (F3) | 8″: 30.1 Hz 10″: 29.9 Hz 12″: 32.8 Hz 13.5″: 30.3 Hz |
Additional |
|
| Additional |
Nominal impedence: 8″>”/10″>”/12″>”: 3 Ω; 13.5″>”: Dual 1.5 Ω The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. All specifications are subject to change without notice. |
|---|---|
