Name: JL Audio® Receiver
SKU: 010-03378-00
Availability: InStock

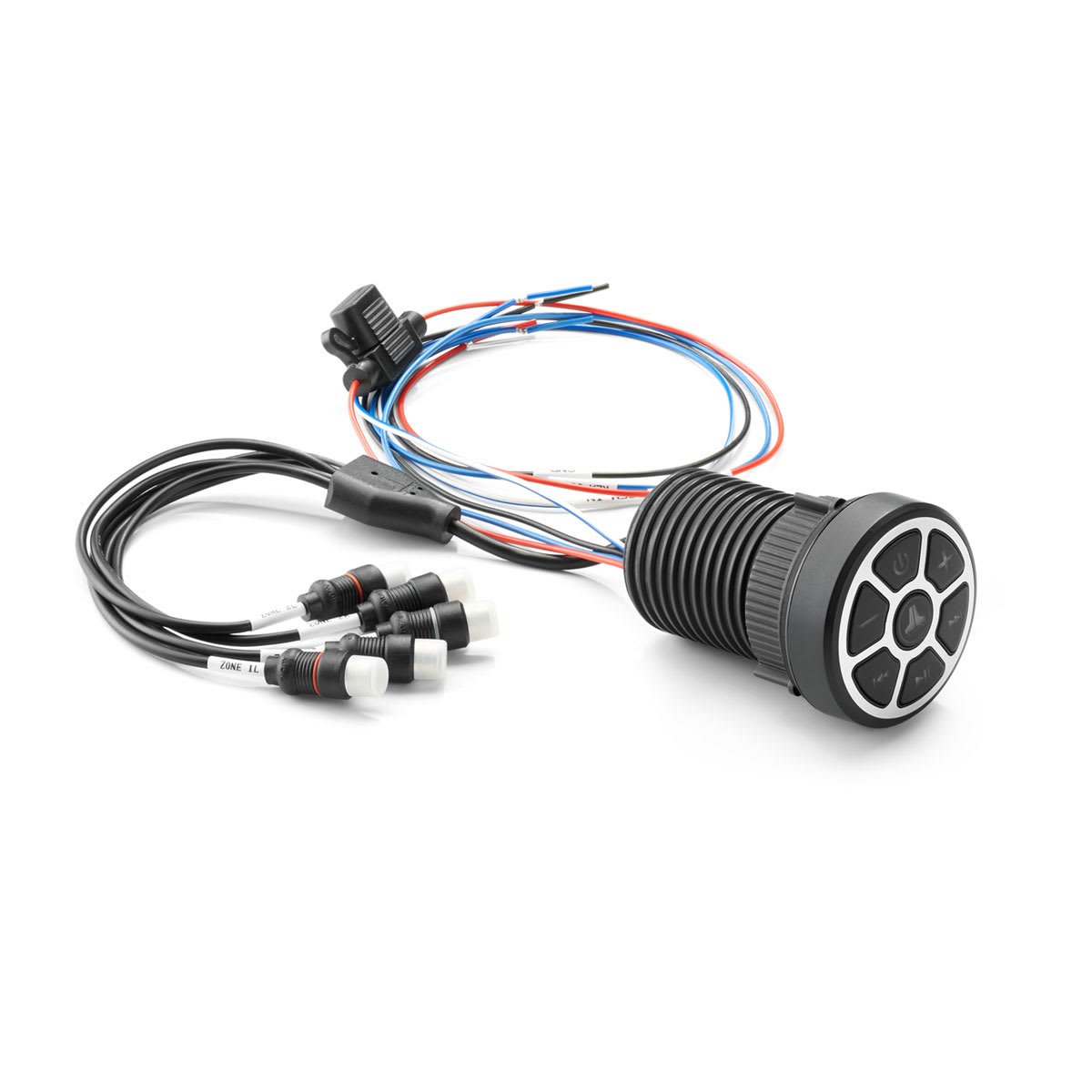

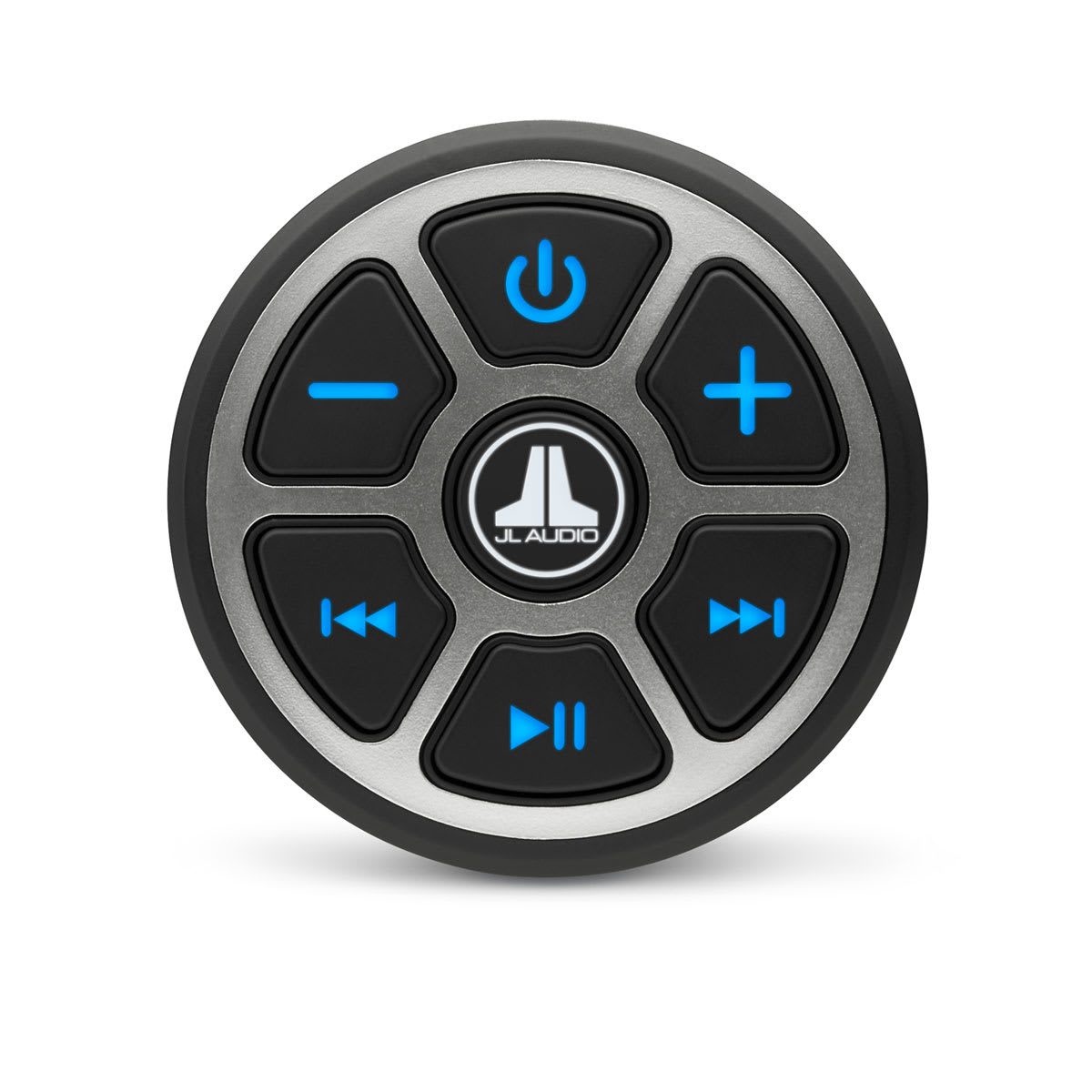

JL Audio® Receiver

JL Audio® receiver with BLUETOOTH makes it simple to integrate your compatible streaming devices with the audio system on your boat or powersport vehicle.

General

Physical dimensions (Height) Controller: 2.15″ (55 mm)
Receiver: 2.28″ (58 mm) Physical dimensions (Width) Controller: 2.15″ (55 mm)
Receiver: 2.64″ (67 mm) Physical dimensions (Depth) Controller: 3.10″ (79 mm)
Receiver: 0.79″ (20 mm) Control Surface Dust/Water Rating (when properly installed) Controller: IP67
Receiver: IPX7 Current draw (max) Controller: 108 mA
Receiver: 40 mA Warranty 2 years

Networking
Bluetooth® wireless range	Up to 35 ft (11 meters)
Wireless frequencies/protocols	Bluetooth®

Electrical Features
Power Input	Controller: 8-16 VDC Receiver: 10-16 VDC

Stereo Features
Multi-Zone™ technology	see Additional
Bluetooth® wireless technology

Sources
Supported sources	Bluetooth®

Connections
RCA pre-out (left, right and subwoofer – requires external amplification)	Controller: 2 zones (L+R), 1 mono output Receiver: L + R only
Line out (requires external amplification)	Controller: 2 (L + R per zone) Receiver: 1 (L + R)
Subwoofer out (requires external amplification)	Controller: Zone 1 (1 mono output)

Additional
Additional	Multi-Zone Technology: Controller only
