Name: JL Audio PowerWedge™ TW3 Enclosed Car Subwoofer
SKU: 010-03242-00
Availability: InStock

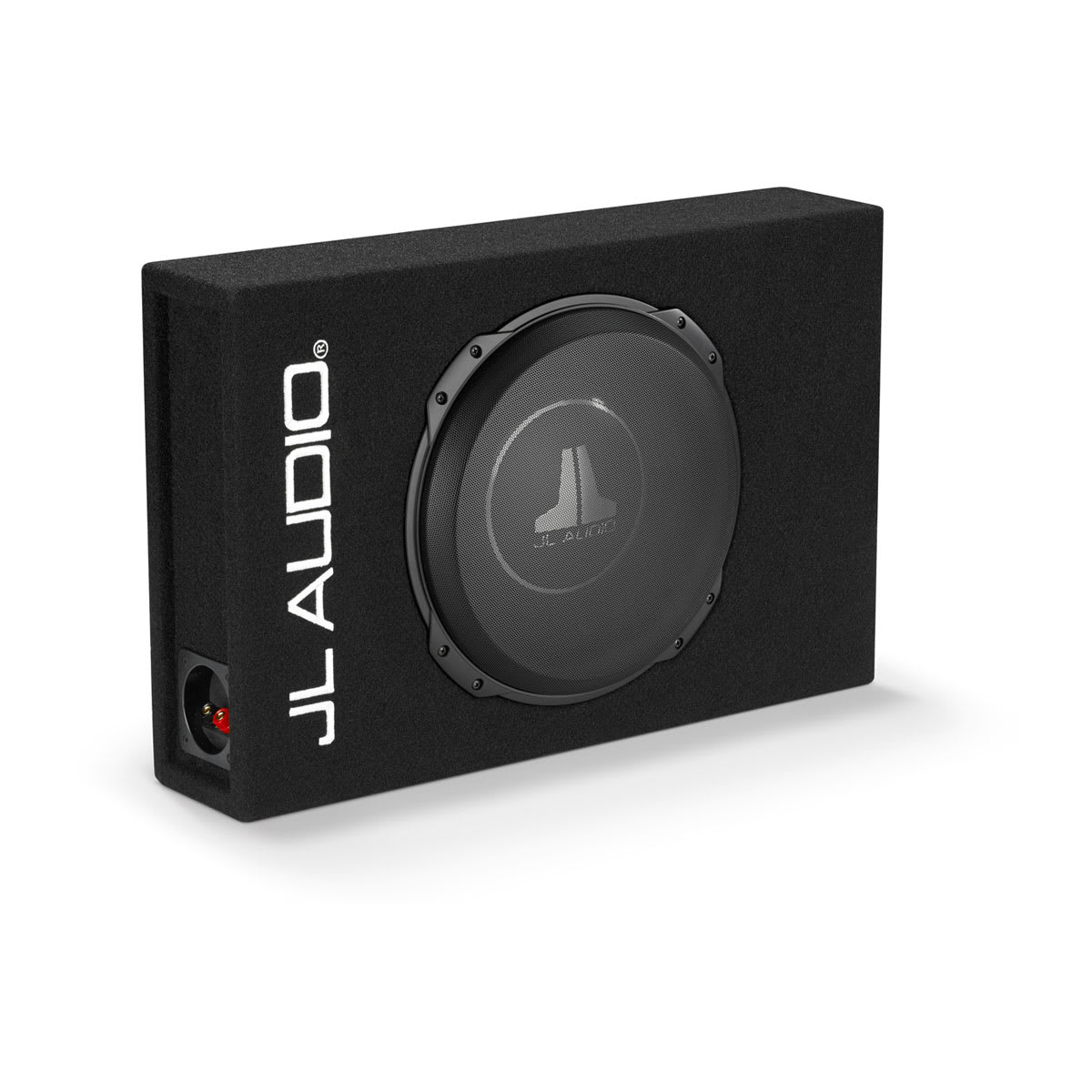

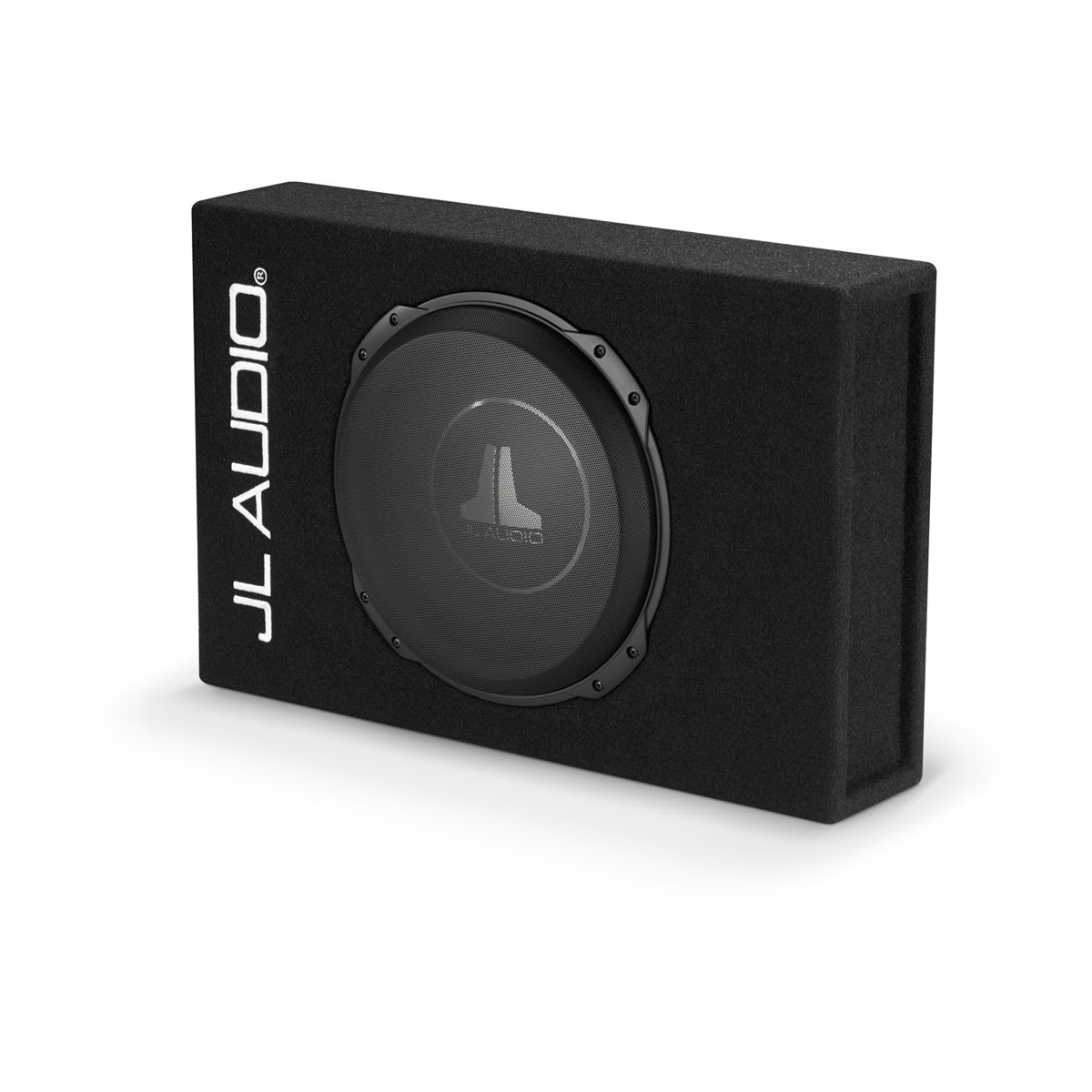

JL Audio PowerWedge™ TW3 Enclosed Car Subwoofer

PowerWedge™ TW3 is an enclosed car subwoofer with a compact enclosure design, thin-line drivers, available in 10- or 12- inches, and has a 2-year warranty.

General

Sizes 10″/10″ Truck/12″/12″ Truck Physical dimensions (Height) 10″: 14″ (357 mm)
10″ Truck: 12.375″ (314 mm)
12″: 15.625″ (397 mm)
12″ Truck: 14.625″ (371 mm) Physical dimensions (Width) 10″: 20.75″ (527 mm)
10″ Truck: 19″ (483 mm)
12″: 23.75″ (603 mm)
12″ Truck: 12″: 21.75″ (537 mm) Physical dimensions (Depth) 10″: 4.5″ (114 mm)
10″ Truck: Top: 4.1″ (104 mm)
10″ Truck: Base: 6.25″ (159 mm)
12″: 5.0625″ (129 mm)
12″ Truck: Top: 4.5″ (114 mm)
12″ Truck: Base: 7″ (178 mm) Weight 10″/10″ Truck: 21.2 lbs (9.6 kg)
12″: 30.5 lbs (13.8 kg)
12″ Truck: 29 lbs (13.2 kg) Continuous power handling (RMS) 400 W Nominal impedance 2 Ω Recommended amplifier power (RMS) 100-400 W Cone material Mineral-filled polypropylene Enclosure type 10″/12″: Sealed
10″ Truck/12″ Truck: Sealed, truck enclosure Grille(s) included Warranty 2 years

Connections
Speaker connections	Five-way binding post terminal

Size

10\", 12\", 13\"

Truck-style Box

yes, No
