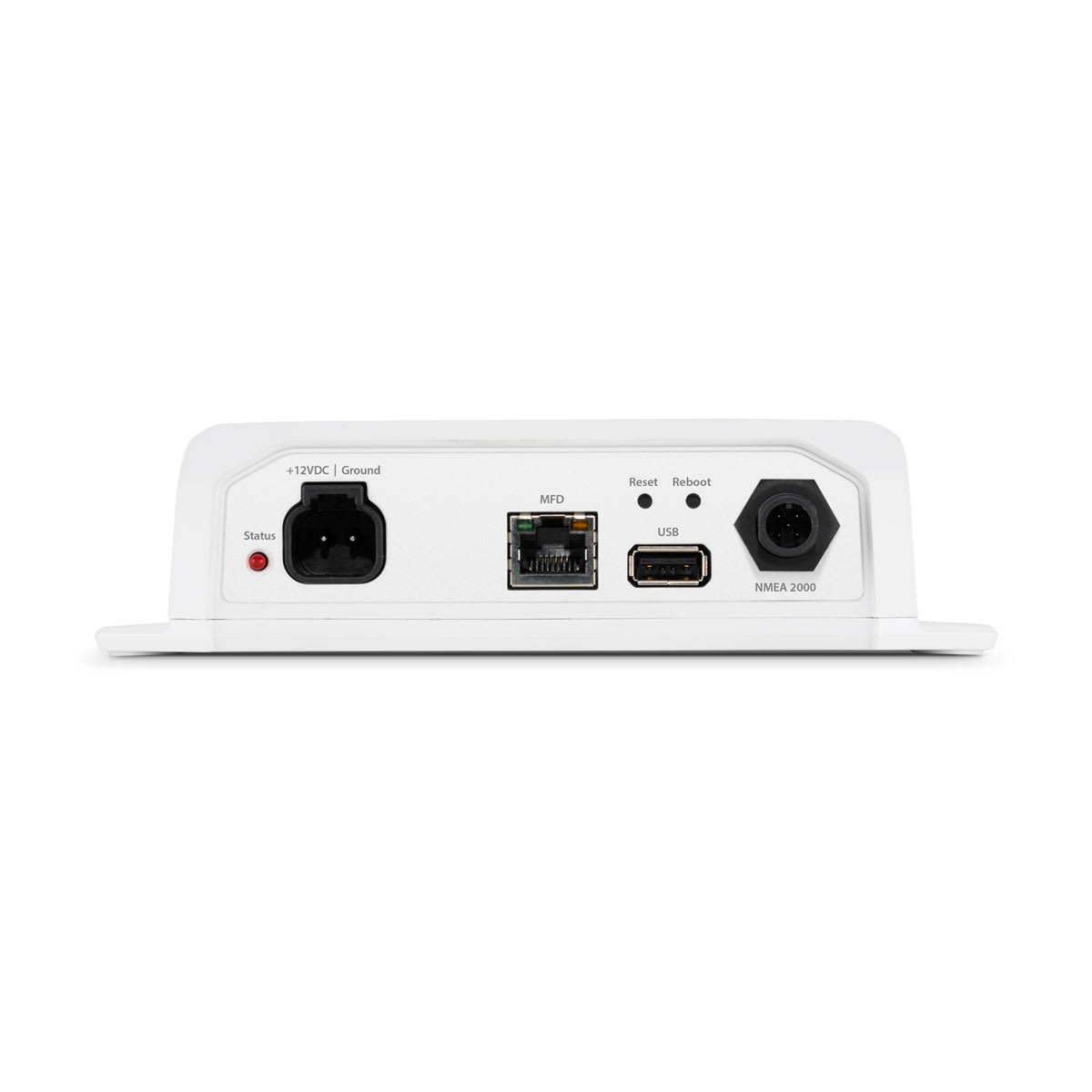

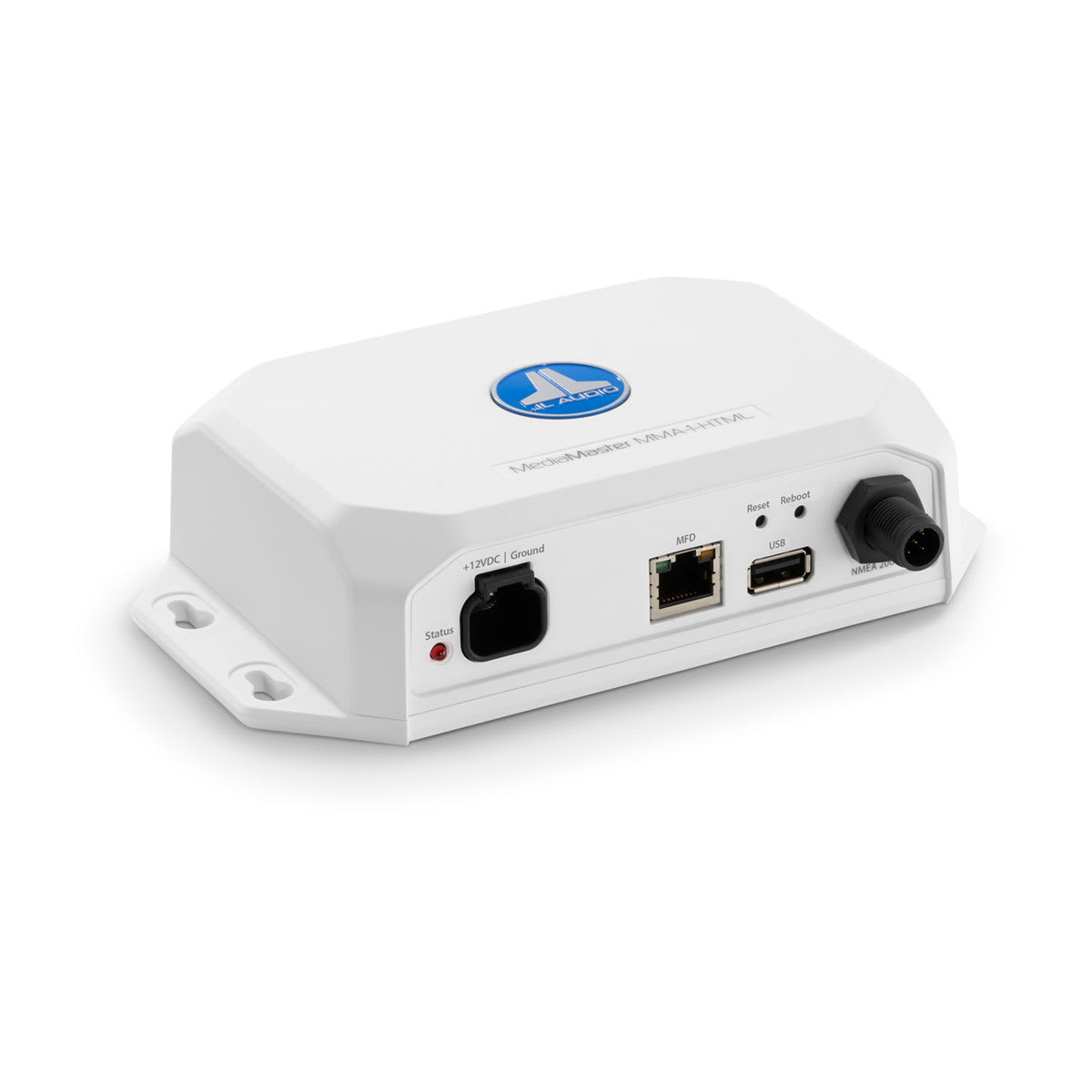

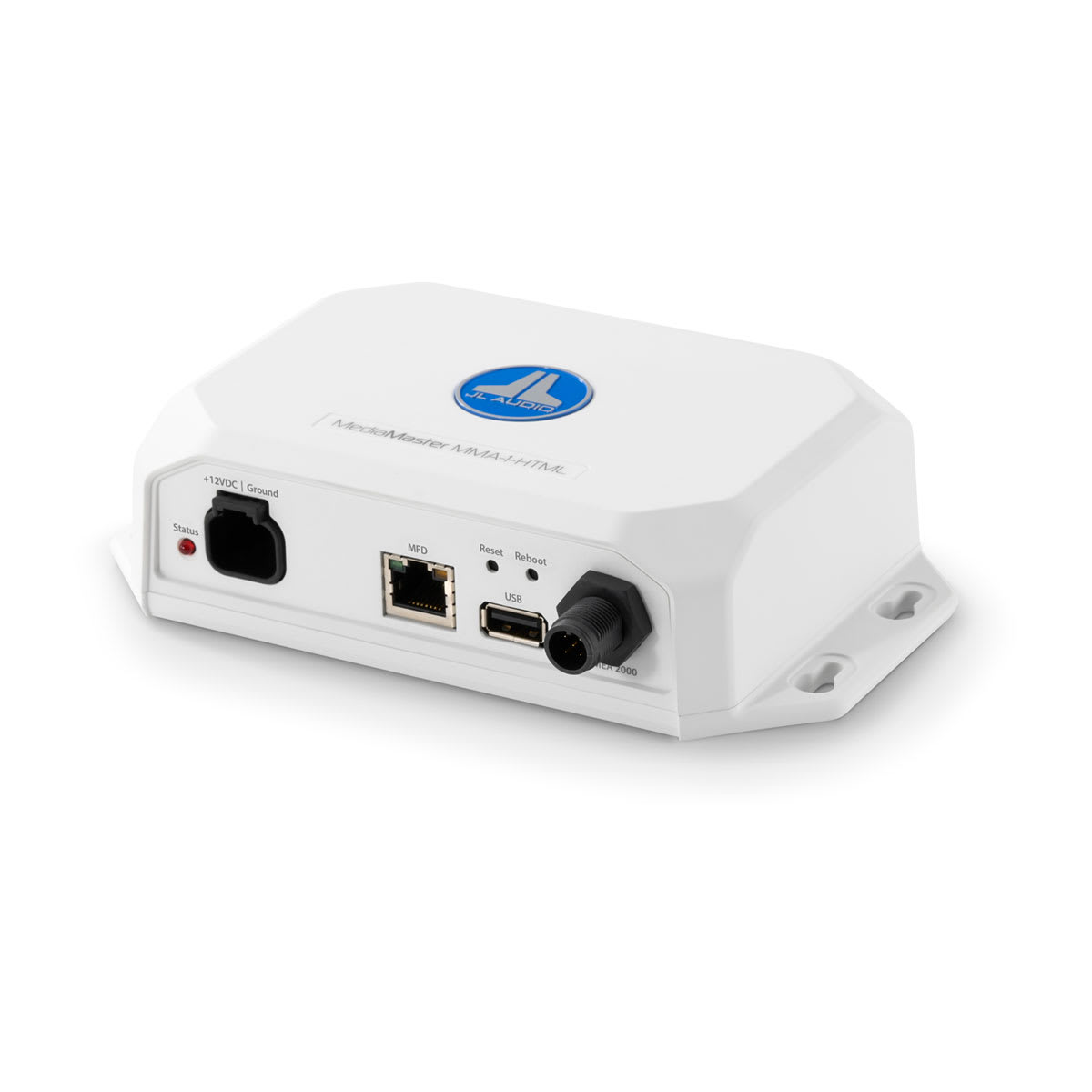

Name: JL Audio® MFD Data Interface for MediaMaster® Source Unit
SKU: 010-03135-00
Availability: InStock

JL Audio® MFD Data Interface for MediaMaster® Source Unit

The MMA-1-HTML is an NMEA 2000 certified data interface engineered to generate MediaMaster-themed UI navigation and controls onto your vessel's compatible MFD.

General

Physical dimensions (Height) 1.73″ (44 mm) Physical dimensions (Width) 6.77″ (172 mm) Physical dimensions (Depth) 3.98″ (101 mm) Operating temperature range -4° F to +149° F (-20° C to +65° C) Current draw (max) 150 mA Warranty 3 years

Networking
NMEA 2000® LEN	1 (50 mA)

Electrical Features
Power Input	10-15.9 VDC

Stereo Features
Multi-language interface	English/French/German/Italian/Spanish
Software updates	USB

Sources
Supported sources	Derived from host source unit
Supported audio formats (USB)	Derived from host source unit

Connections
Ethernet ports	1
NMEA 2000® ports	1 (Micro-C connector)
USB 2.0 ports	1 (Software update only)
