General |
|
| Input channels | 2 |
|---|---|
| Output channels | 2 |
| Physical dimensions (Height) | 1.23″ (31 mm) |
| Physical dimensions (Width) | 4.72″ (120 mm) |
| Physical dimensions (Depth) | 3.04″ (77 mm) |
| Weight |
2.58 lbs (1.17 kg) |
| Power supply type | Switching, MOSFET PWM, Regulated |
| Warranty | 2 years |
| Operating voltage | 9-16 VDC |
Audio |
|
| Signal-to-Noise Ratio @ 2 V (RMS) | Gain at Min: 118 dB Gain at Max: 103 dB (20 kHz Bandwidth) |
|---|---|
| THD+N @ Rated Power | 0.01% at 2V RMS (1kHz) |
| Frequency response (+0, -1dB) | 3 Hz-32 kHz |
| Input voltage range @ RCA inputs | 40V RMS per Channel (maximum) |
| Input type | Differential-balanced |
| Input impedance | Normal: 20kΩ Low Z: 20Ω |

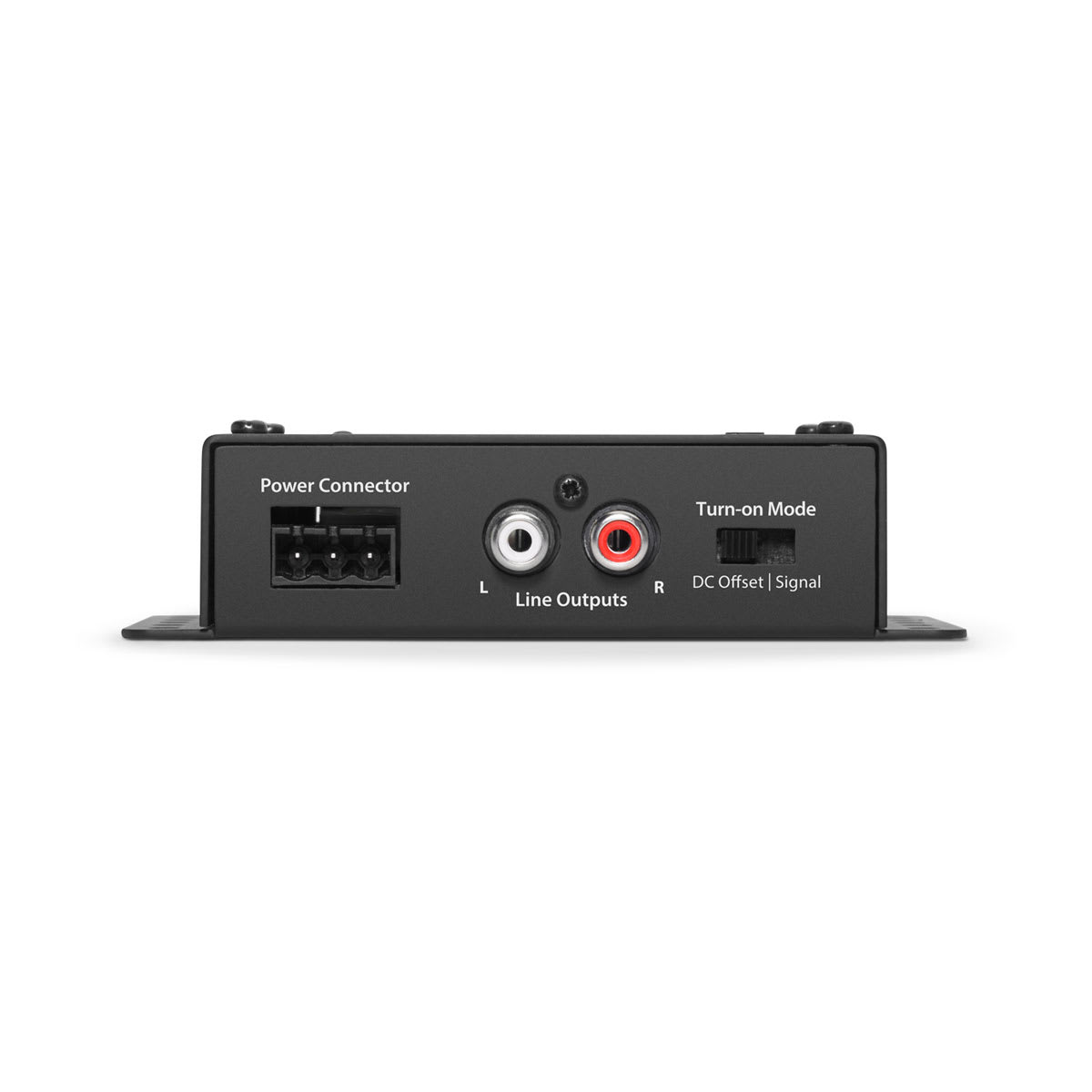

| Analog output | Unbalanced, stereo RCA jacks |
| Maximum unclipped output (RMS) | 8 V |
| Output impedence | 450 Ω |
| Gain range | -27.3 dB (full CCW) to +3.2 dB (full CW) |
| Current consumption (Standby) | <1.6 mA |
| Current consumption (Idle) | 0.13 A at 13.8V |
| Fuse rating | 1 A |
| Recommended fuse type(s) | Fast-acting, ATO/ATC or similar |
