General
12″: 18.5″ (470 mm)
Dual 12″: 31.96″ (812 mm)
13.5″: 19.25″ (489 mm)
12″: 15.0625″ (384 mm)
Dual 12″: 14.92″ (379 mm)
13.5″: 16.50″ (419 mm)
12″: 17.75″ (451 mm)
Dual 12″: 20.39″ (518 mm)
13.5″: 19.25″ (489 mm)
10″>”: 69 lbs (31 kg)
12″>”: 117 lbs (53 kg)
Dual 12″>”: 224 lbs (102 kg)
13.5″>”: 133 lbs (60 kg)
12″: 1800 W short-term
Dual 12″: 3600 W short-term
13.5″: 3000 W short-term
12″: 21-119 Hz (±1.5 dB)
Dual 12″: 20-97 Hz (±1.5 dB)
13.5″: 20-86 Hz (±1.5 dB)
12″: 19 Hz/150 Hz
Dual 12″: 19 Hz/110 Hz
13.5″: 18 Hz/127 Hz
12″: 17 Hz/167 Hz
Dual 12″: 15 Hz/157 Hz
13.5″: 16 Hz/154 Hz

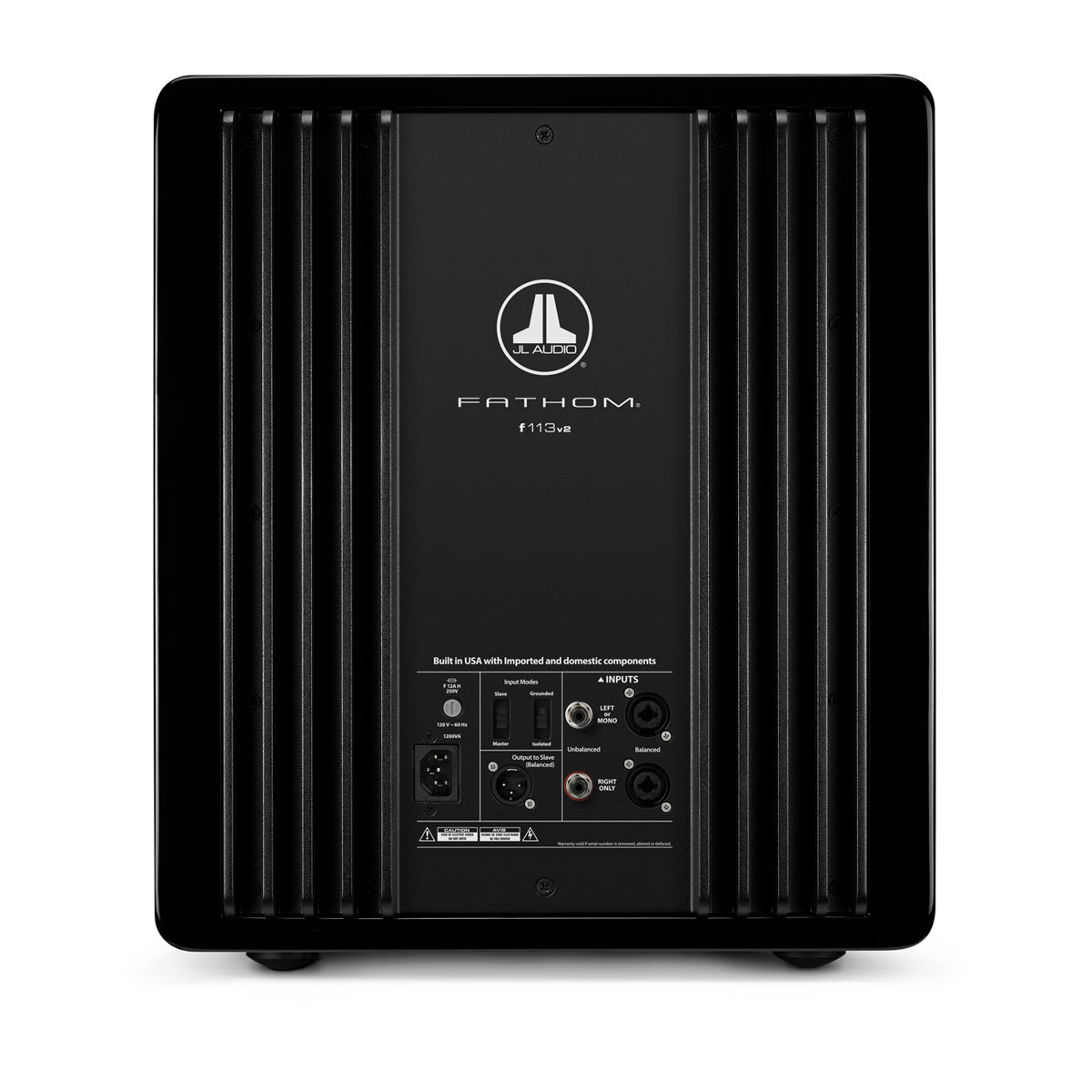

Signal Processing |
|
| Unbalanced inputs | Stereo or mono (two RCA jacks) |
|---|---|
| Balanced inputs | Stereo or mono (two female XLR jacks) |
| Input grounding | Isolated or grounded |
| Input modes | Master or slave |
| Level control | Reference (fixed gain) or variable, from full mute to +15 dB over reference gain |
| Filter mode(s) | Low-pass |
| Filter slope(s) | 12/24 dB/octave |
| Filter frequency range | 30 Hz-130 Hz |
| Filter defeat function | |
| Polarity | 0 or 180º |
| Phase | Variable, 0-280º |
| Extreme Low Frequency (E.L.F.) trim | Variable, -12 dB to +3 dB at 28 Hz |
| Output to slave | Balanced (one male XLR jack) |
| Calibration mode | Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone |
Parameters |
|
| Effective piston area (SD) | 10″: 60 in² (0.0387 m²) 12″: 84 in² (0.0542 m²) Dual 12″: 168 in² (0.1084 m²) 13.5″: 107.35 in² (0.0693 m²) |
|---|---|
| Effective displacement | 10″: 160 cu in (2.6 L) 12″: 287 cu in (4.7 L) Dual 12″: 574 cu in (9.4 L) 13.5″: 386 cu in (6.3 L) |
