Name: JL Audio® Fathom® IWSv2 Subwoofer System
SKU: BUNDLE-JLAFIWSv2-ICAS
Availability: InStock

JL Audio® Fathom® IWSv2 Subwoofer System

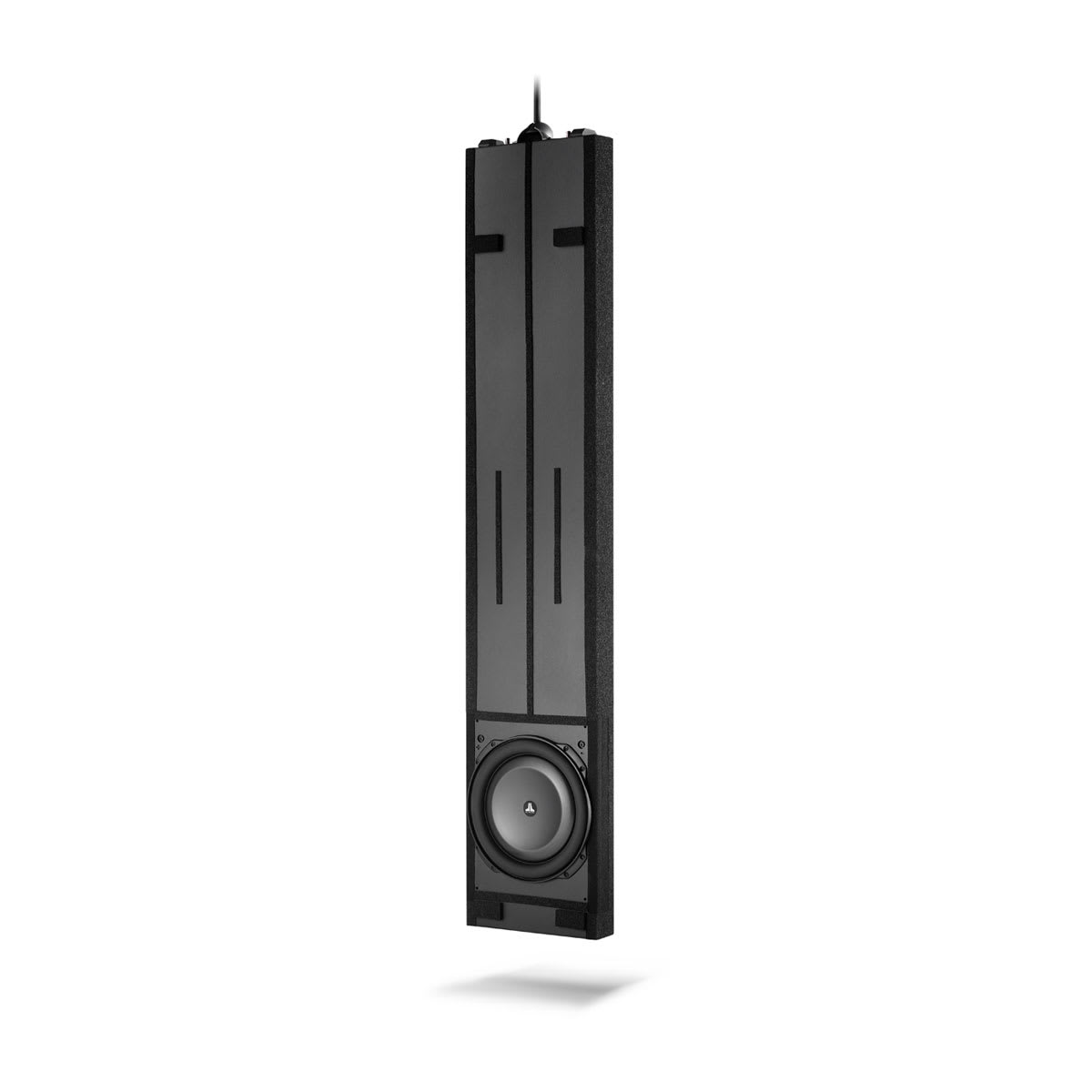

Fathom® IWSv2 in-wall subwoofer is an in-wall system fits in standard 2" x 4" wall construction and with features a unique floating mount design, and rack-mountable amplifier.

General

Sizes 13.5″/Dual 13.5″ Light modes off, on or dim Amplifier Power (RMS) 13.5″: 1000 W short-term
Dual 13.5″: 2000 W short-term Frequency response (Anechoic) 26 Hz-101 Hz (± 1.5 dB) Frequency response (Anechoic, -3dB) 25 Hz/112 Hz Frequency response (Anechoic, -10dB) 22 Hz/150 Hz Enclosure type Sealed Enclosure finish Black texture-coated Grille(s) included Power modes off, on or automatic (signal-sensing) Warranty 3 years

Signal Processing
Unbalanced inputs	Stereo or mono (two RCA jacks)
Balanced inputs	Stereo or mono (two female XLR jacks)
Input grounding	Isolated or grounded
Input modes	Master or slave
Level control	Reference (fixed gain) or Variable, from full mute to +15 dB over reference gain
Filter mode(s)	Low-pass
Filter slope(s)	12/24 dB/octave
Filter frequency range	30 Hz-130 Hz
Filter defeat function
Polarity	0 or 180º
Phase	Variable, 0-270º, referenced to 80 Hz
Extreme Low Frequency (E.L.F.) trim	Variable, -12 dB to +3 dB at 23 Hz
Output to slave	Balanced (one male XLR jack)
Calibration mode	Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone

Amplifier Specifications
Width (W)	17.4″ (442 mm)
Height (H)	3.5″ (89 mm)
Depth (D)	17.9″ (455 mm)
Net weight (each)	13.5″: 35 lbs (15.9 kg) Dual 13.5″: 43 lbs (19.5 kg)

Enclosure Specifications for 2″ x 4″ Stud Construction
Cavity Width (W): Minimum	14.375″ (365 mm)
Cavity Width (W): Maximum	14.875″ (378 mm)
Cavity Height (H): Minimum	93.625″ (2,378 mm)
Width (W)	13.75″ (349 mm)
Height (H)	70″ (1,778 mm)
Depth (D)	2.94″ (75 mm)

Enclosure Specifications for 2″ x 6″ Stud Construction
Cavity Width (W): Minimum	14.375″ (365 mm)
Cavity Width (W): Maximum	14.875″ (378 mm)
Cavity Height (H): Minimum	93.625″ (2,378 mm)
Width (W)	13.75″ (349 mm)
Height (H)	55″ (1,397 mm)
Depth (D)	4.70″ (119 mm)

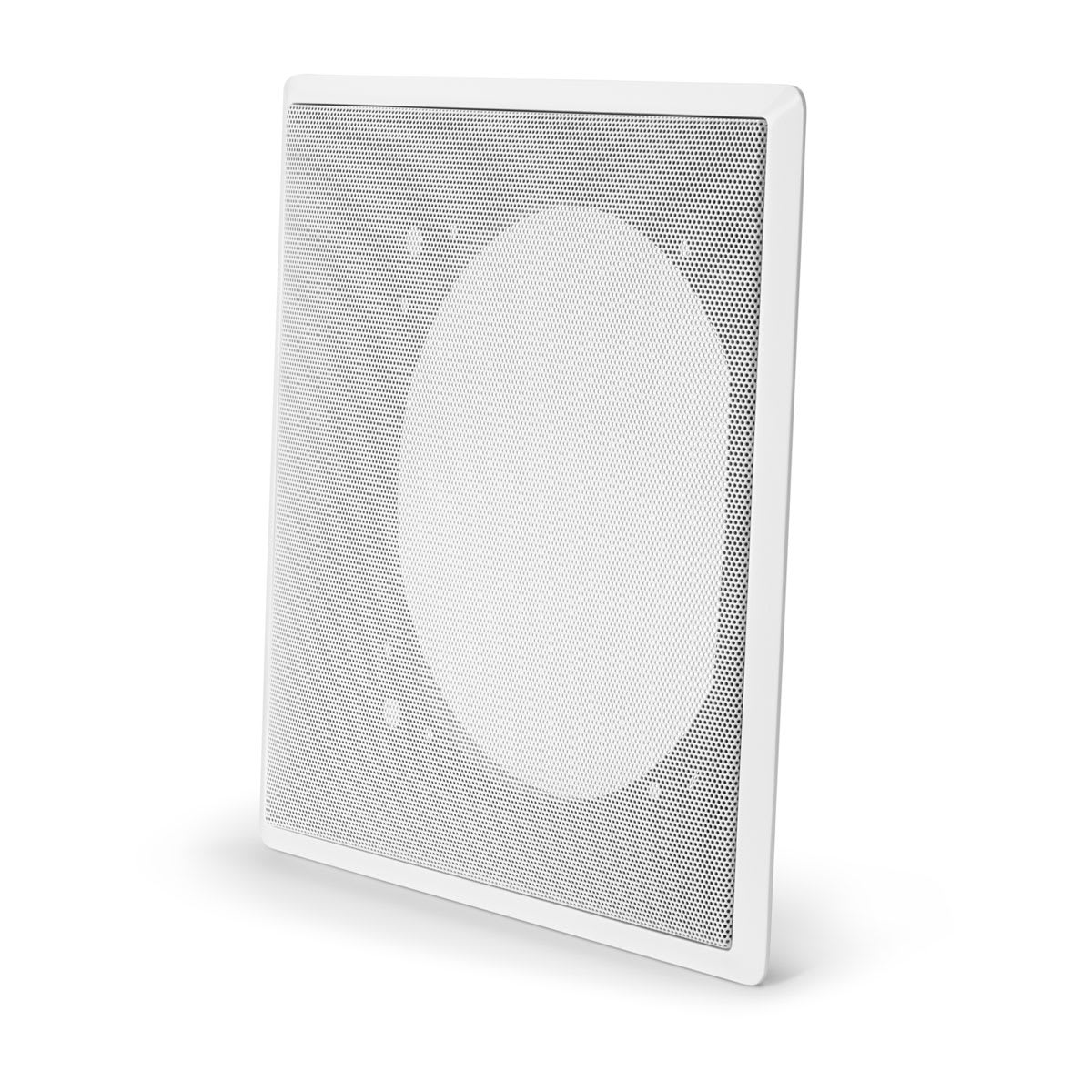

Grille Specifications
Grille width (W)	17.14″ (435 mm)
Grille height (H)	17.64″ (448 mm)
Opening width (W)	16″ (406 mm)
Opening height (H)	16.5″ (419 mm)

Parameters
Effective piston area (SD)	13.5″: 98.26 in² (0.0634 m²) Dual 13.5″: 196.51 in² (0.1268 m²)
Effective displacement	13.5″: 147.3 cu in (2.41 L) Dual 13.5″: 294.6 cu in (4.82 L)
