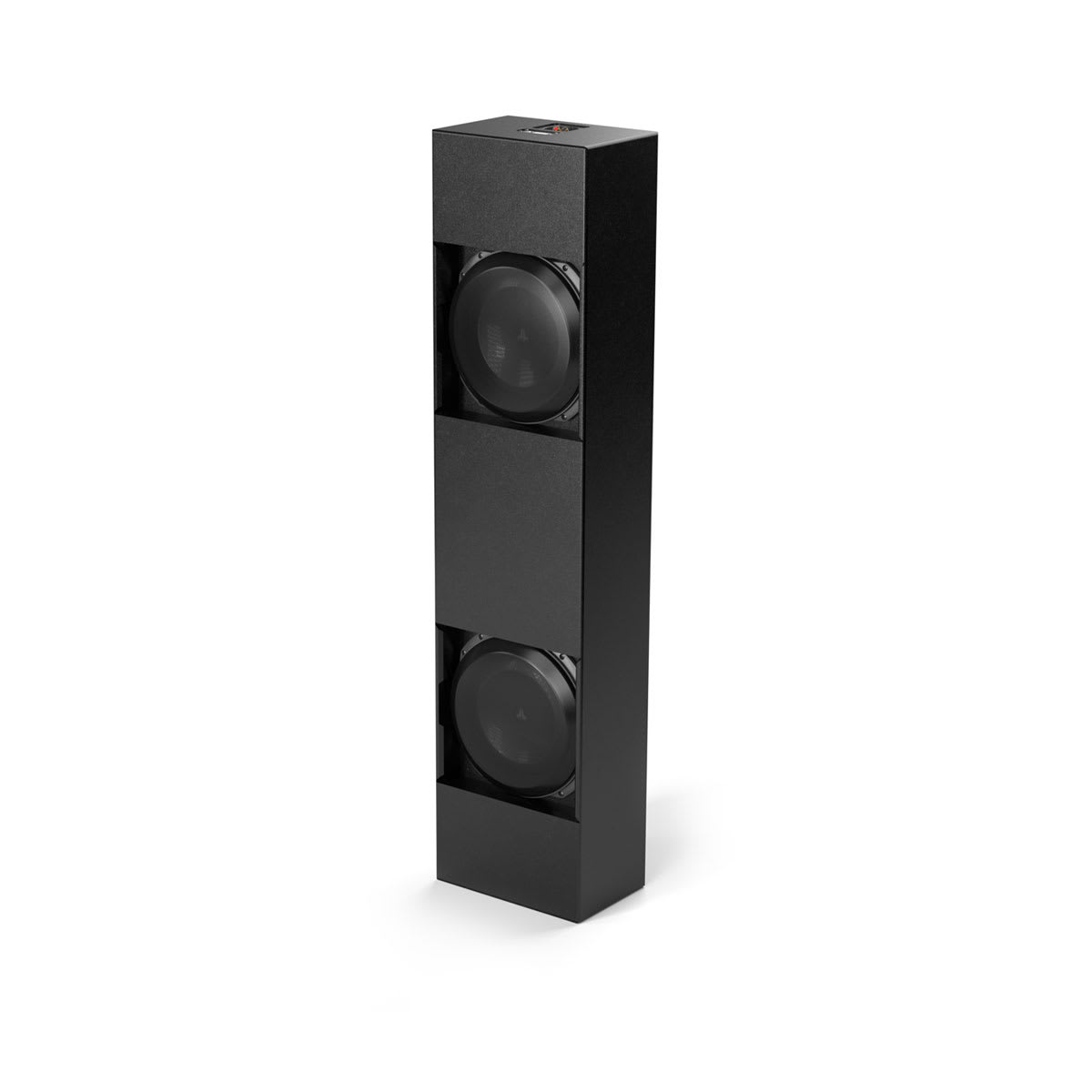

Name: JL Audio Fathom™ Custom Theater Subwoofer
SKU: 010-03374-00
Availability: InStock

JL Audio Fathom™ Custom Theater Subwoofer

Fathom® Custom Theater Subwoofer is an in-wall, subwoofer systems with up to 2,000 watts of power are available in a variety of enclosure sizes, come with and single or dual 13.5-inch thin-line subwoofer models..

General

Sizes 13.5″/Dual 13.5″ (driver)
5.25″/5.75″/9″/14″ (enclosure depth) Physical dimensions (Height) 13.5″ (5.25″ depth): 58.75″ (1,492 mm)
13.5″ (5.75″ depth): 23.94″ (608 mm)
13.5″ (9″ depth): 30.69″ (780 mm)
Dual 13.5″ (9″ depth): 59.20″ (1,504 mm)
13.5″ (14″ depth): 19.56″ (497 mm) Physical dimensions (Width) 13.5″ (5.25″ depth): 14″ (356 mm)
13.5″ (5.75″ depth): 23.94″ (608 mm)
13.5″ (9″ depth): 14″ (356 mm)
Dual 13.5″ (9″ depth): 14″ (356 mm)
13.5″ (14″ depth): 14″ (356 mm) Physical dimensions (Depth) 13.5″ (5.25″ depth): 5.25″ (133 mm)
13.5″ (5.75″ depth): 5.75″ (146 mm)
13.5″ (9″ depth): 9″ (229 mm)
Dual 13.5″ (9″ depth): 9″ (229 mm)
13.5″ (14″ depth): 14″ (356 mm) Continuous power handling (RMS) 13.5″: 1000 W
Dual 13.5″: 2000 W Frequency response (Anechoic) 28 Hz-117 Hz (± 1.5 dB) Frequency response (Anechoic, -3dB) 25 Hz/123 Hz Frequency response (Anechoic, -10dB) 22 Hz/150 Hz Enclosure type Sealed Enclosure finish Black texture-coated Grille(s) included Warranty 3 years

Parameters
Effective piston area (SD)	13.5″: 98.26 in² (0.0634 m²) Dual 13.5″: 196.51 in² (0.1268 m²)
Effective displacement	13.5″: 147.3 cu in (2.41 L) Dual 13.5″: 294.6 cu in (4.82 L)

Enclosure Depth

5.25\", 5.75\", 9\", 14\"

Driver Quantity

Single, Dual
