General
10″: 13.4″ (340 mm)
10″: 10″ (254 mm)
10″: 15.86″ (403 mm)
10″: 38.2 lbs (17.3 kg)
10″: 750 W short-term
10″: 27-111 Hz (±1.5 dB)
10″: 25 Hz/118 Hz
10″: 21 Hz/143 Hz

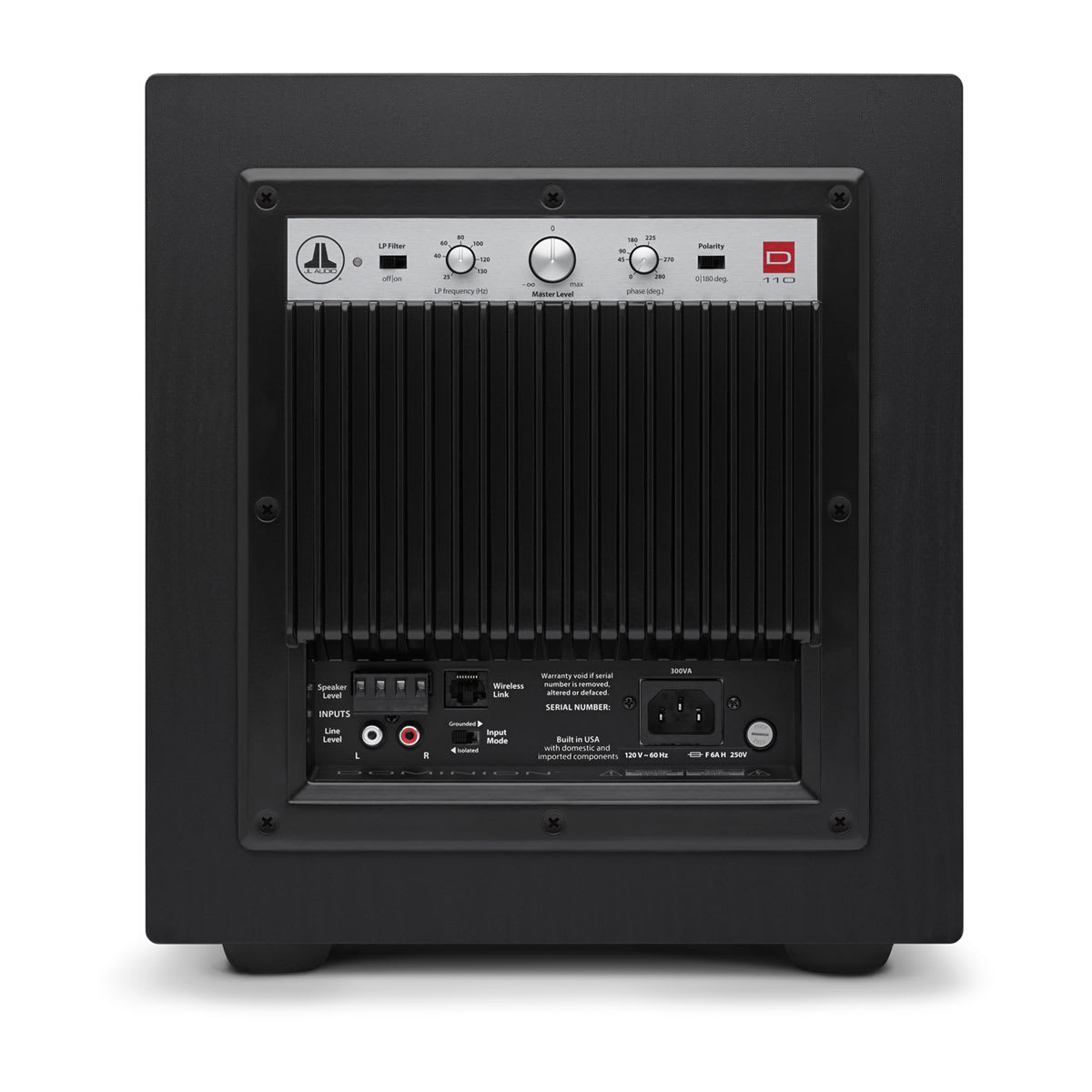

Signal Processing |
|
| Unbalanced inputs | Stereo or mono (two RCA jacks) |
|---|---|
| Speaker/High-level inputs | Stereo or mono (removeable plug) |
| Input grounding | Isolated or grounded |
| Level control | Variable, from full mute to +15 dB over reference gain |
| Filter mode(s) | Low-pass |
| Filter slope(s) | 24 dB/octave |
| Filter frequency range | 25 Hz-130 Hz |
| Filter defeat function | |
| Polarity | 0 or 180º |
| Phase | Variable, 0-280º, referenced to 80 Hz |
Parameters |
|
| Effective piston area (SD) | 8″: 32.18 in² (0.0208 m²) 10″: 48.71 in² (0.0314 m²) |
|---|---|
| Effective displacement | 8″: 80 cu in (1.3 L) 10″: 127 cu in (2.08 L) |
