Name: JL Audio® C3 Car Speakers
SKU: 010-03349-00
Availability: InStock

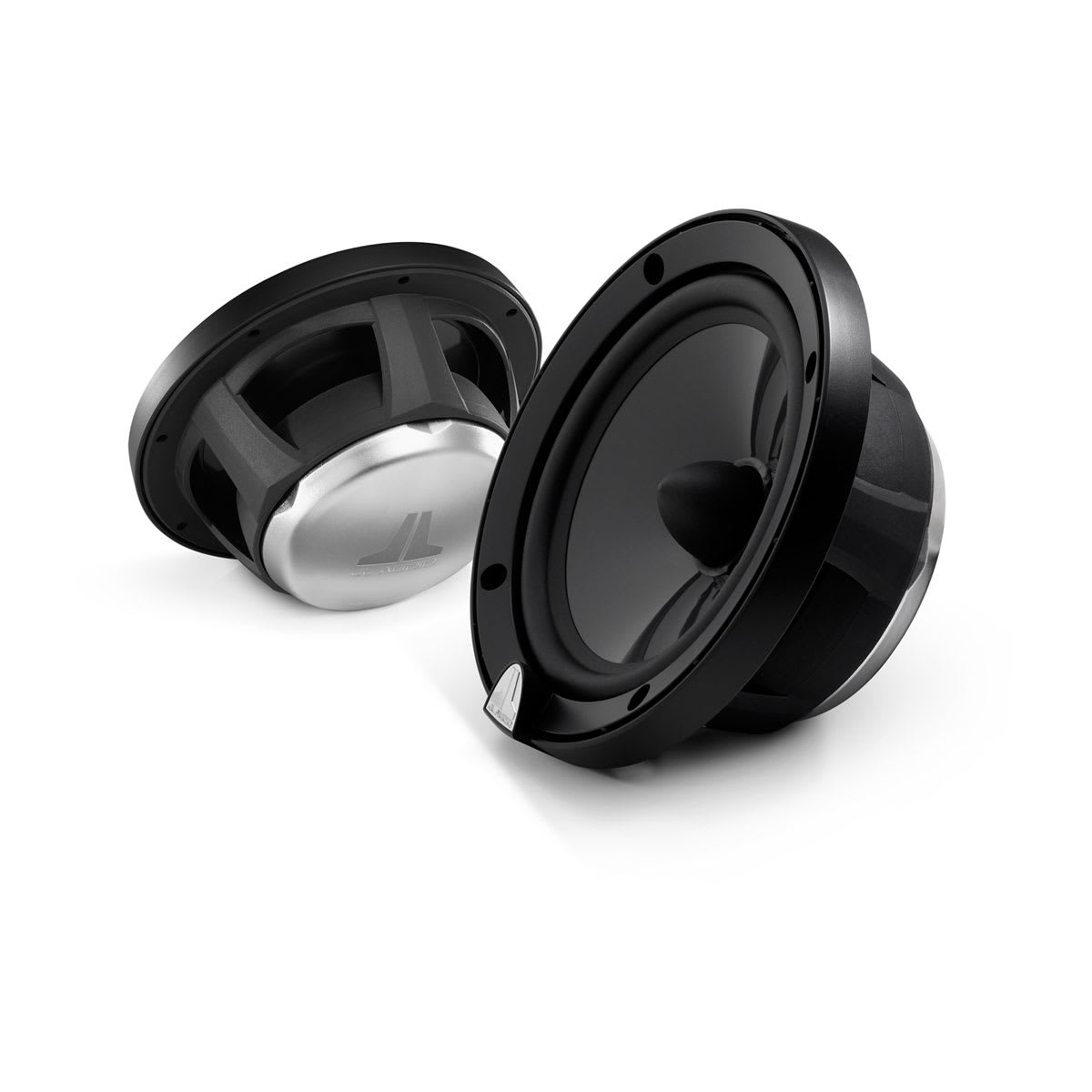

JL Audio® C3 Car Speakers

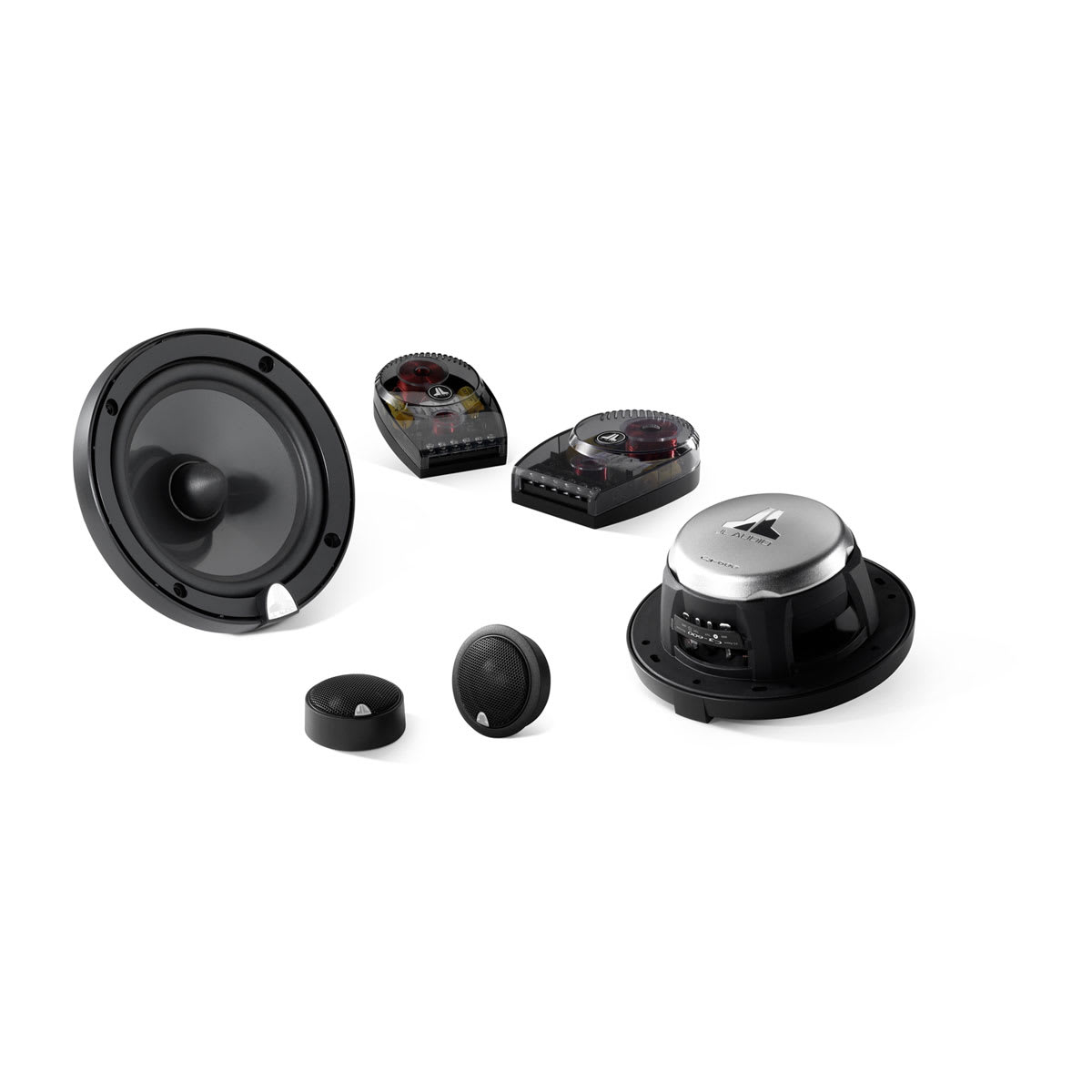

C3 component car speaker system with DMA-optimized woofers, pure silk dome tweeters, flexible installations, and a 1-year warranty.

General

Sizes 1″/5 x 7″/5.25″/6″/6.5″ Continuous power handling (RMS) 75 W Sensitivity (SPL @ 1 W/1 m) 90 dB
6″: 89.5 dB Frequency response (+/- 3 dB) 5.25″/5 x 7″/6.5″: 48 Hz-25 KHz ± 3 dB
6″: 48 Hz-25 KHz
1″: 4 kHz-25 KHz Nominal impedance 4 Ω Recommended amplifier power (RMS) 25-150 W/Channel Voice coil diameter 1.2″ (30 mm) Cone material Mineral-filled polypropylene Tweeter type Silk Dome Tweeter size 1″ (25 mm) Grille(s) included yes (5 x 7″: no) Warranty 1 year

Connections
Speaker connections	Spade connectors

Mounting Dimensions
Frame outer diameter	5.25″: 5.80″ (147 mm) 5 x 7″: 5.52 x 7.68″ (140 x 195 mm) 6″: 6.21″ (157.7 mm) 6.5″: 6.5″ (165 mm)
Mounting depth clearance	5.25″: 2.27″ (58 mm) 5 x 7″: 2.52″ (64 mm) 6″: 2.49″ (63 mm) 6.5″: 2.55″ (65 mm)
Frontal grille protrusion	5.25″: 1″ (25 mm) 6″/6.5″: 1.03″ (26.2 mm)
Mounting hole	5.25″: 4.56″ (116 mm) 6″: 5″ (127 mm) 6.5″: 5.56″ (141 mm)
Grille tray outer diameter	5.25″: 6″ (152 mm) 6″: 6.46″ (164.1 mm) 6.5″: 6.74″ (171 mm)
Motor outer diameter	4.08″ (104 mm) 5.25″: 3.38″ (86 mm)
Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface)	5.25″: 0.69″ (18 mm) 5 x 7″: 0.78″ (20 mm) 6″: 0.81″ (20.6 mm) 6.5″: 0.75″ (19 mm)

Tweeter Specifications
Flush mount fixture diameter	2.12″ (54 mm)
Surface mount fixture diameter	1.9″ (49 mm)
Flush mount mounting hole diameter	1.875″ (48 mm)
Flush mount mounting depth	0.71″ (18 mm)
Flush mount tweeter frontal protrusion	0.32″ (8 mm)
Surface mount tweeter frontal protrusion	0.95″ (24 mm)
