GTN™ 750Xi

Price range: $6,310.50 through $6,322.50

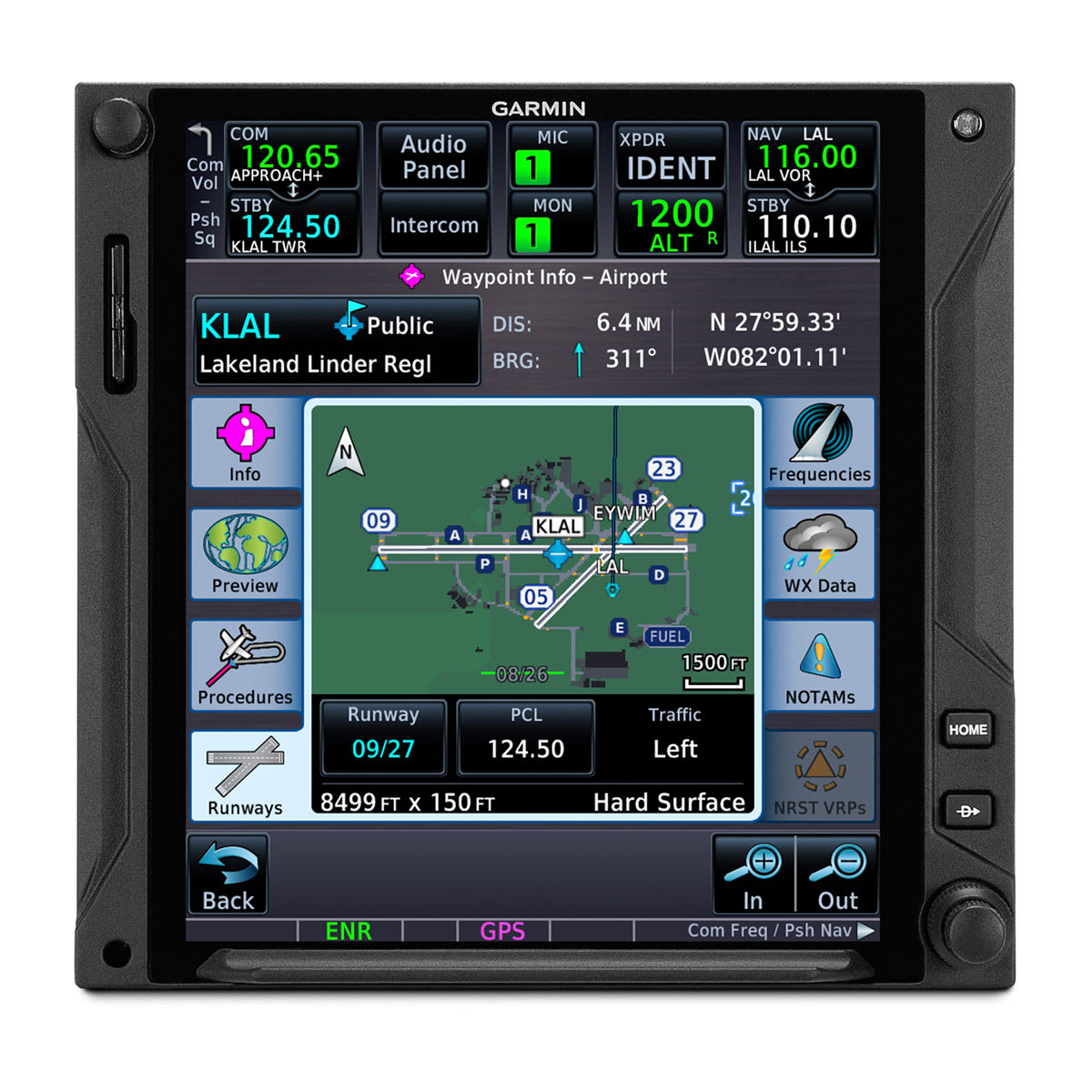

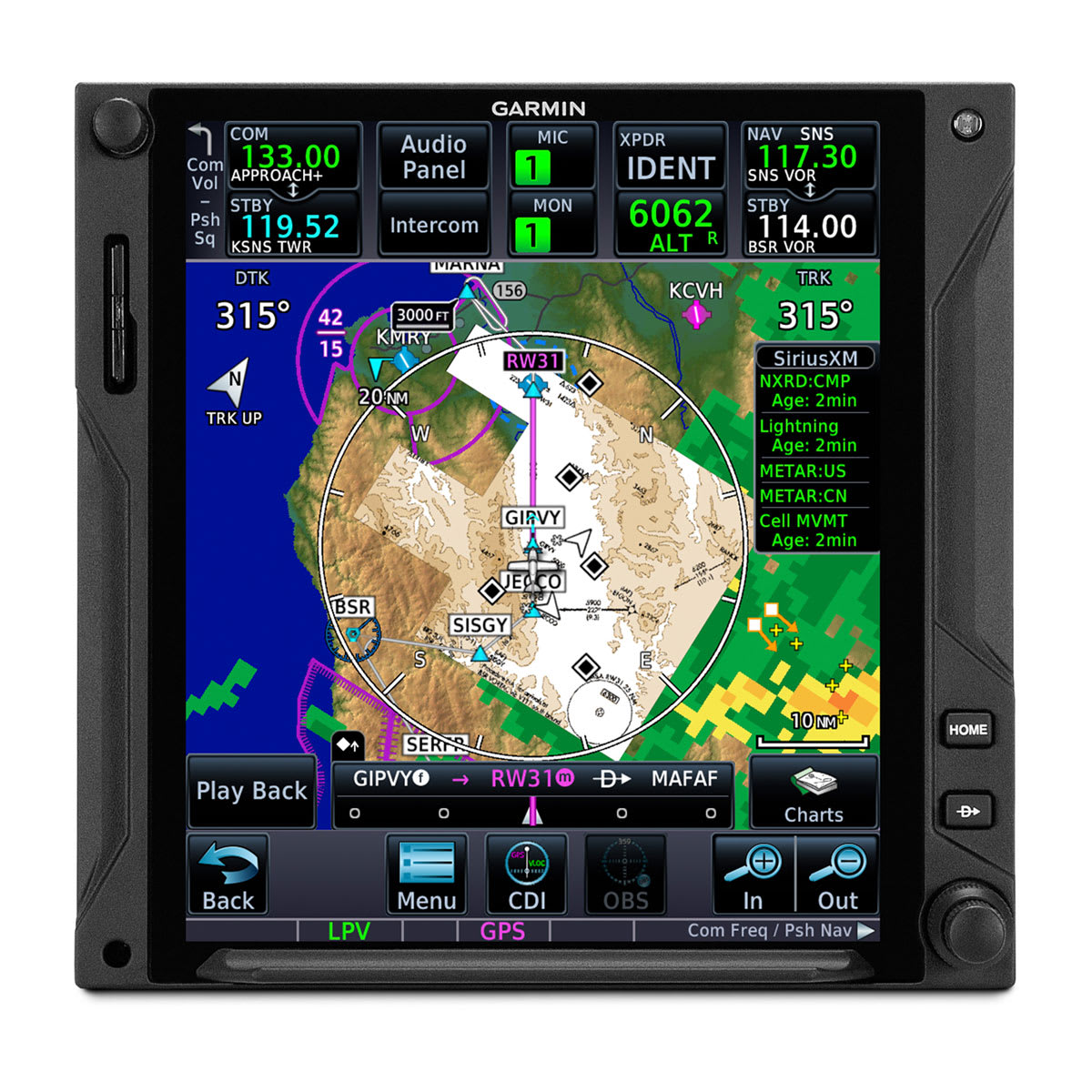

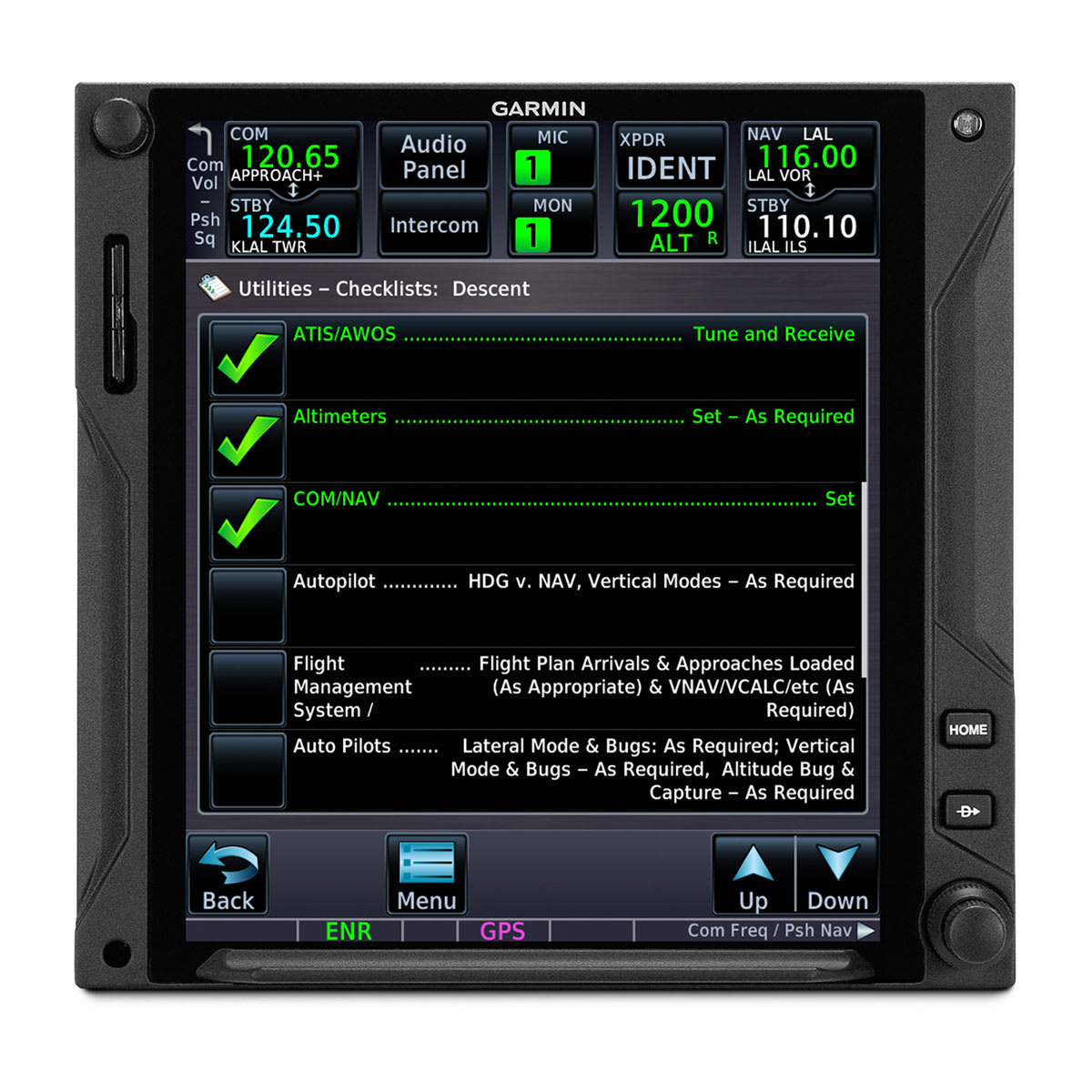

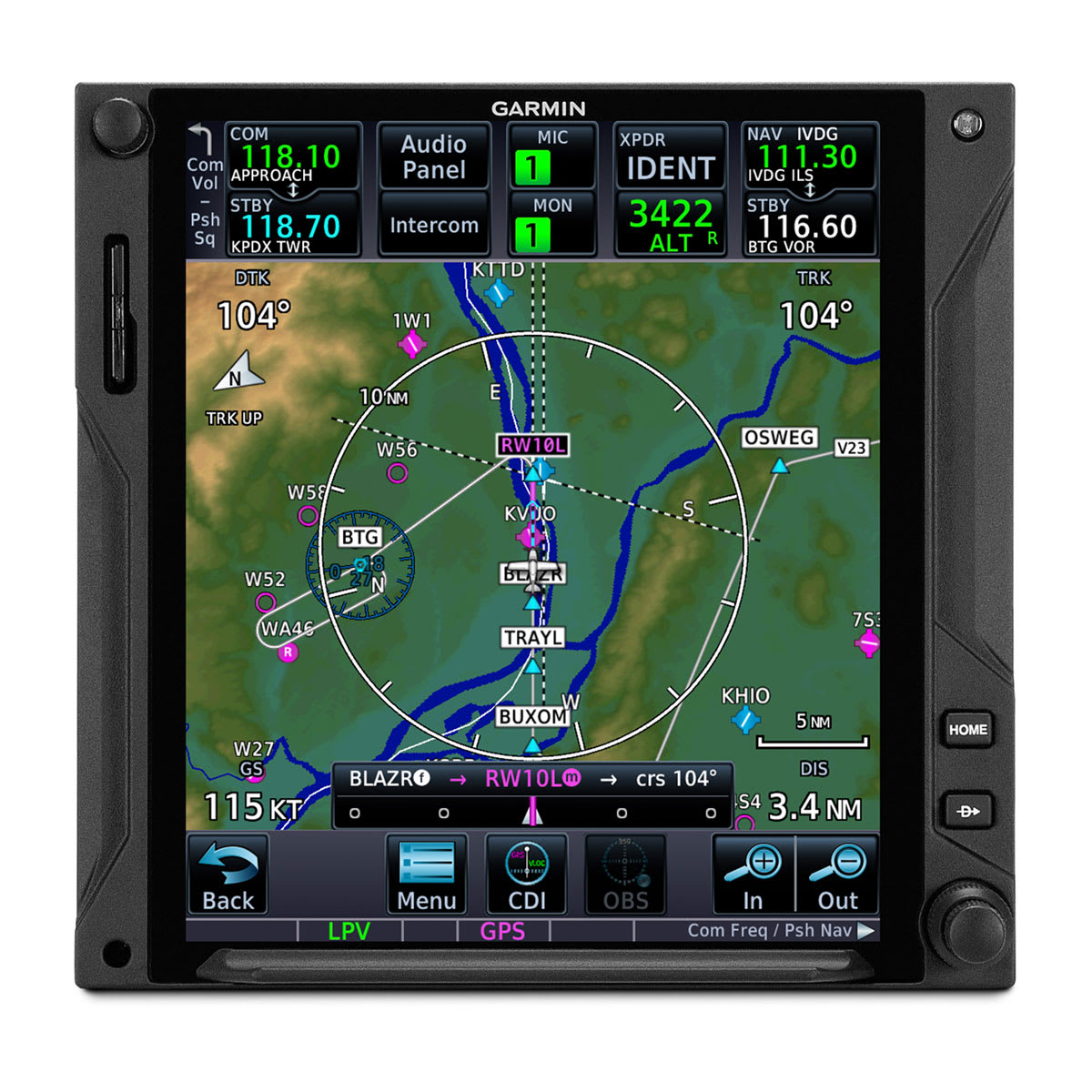

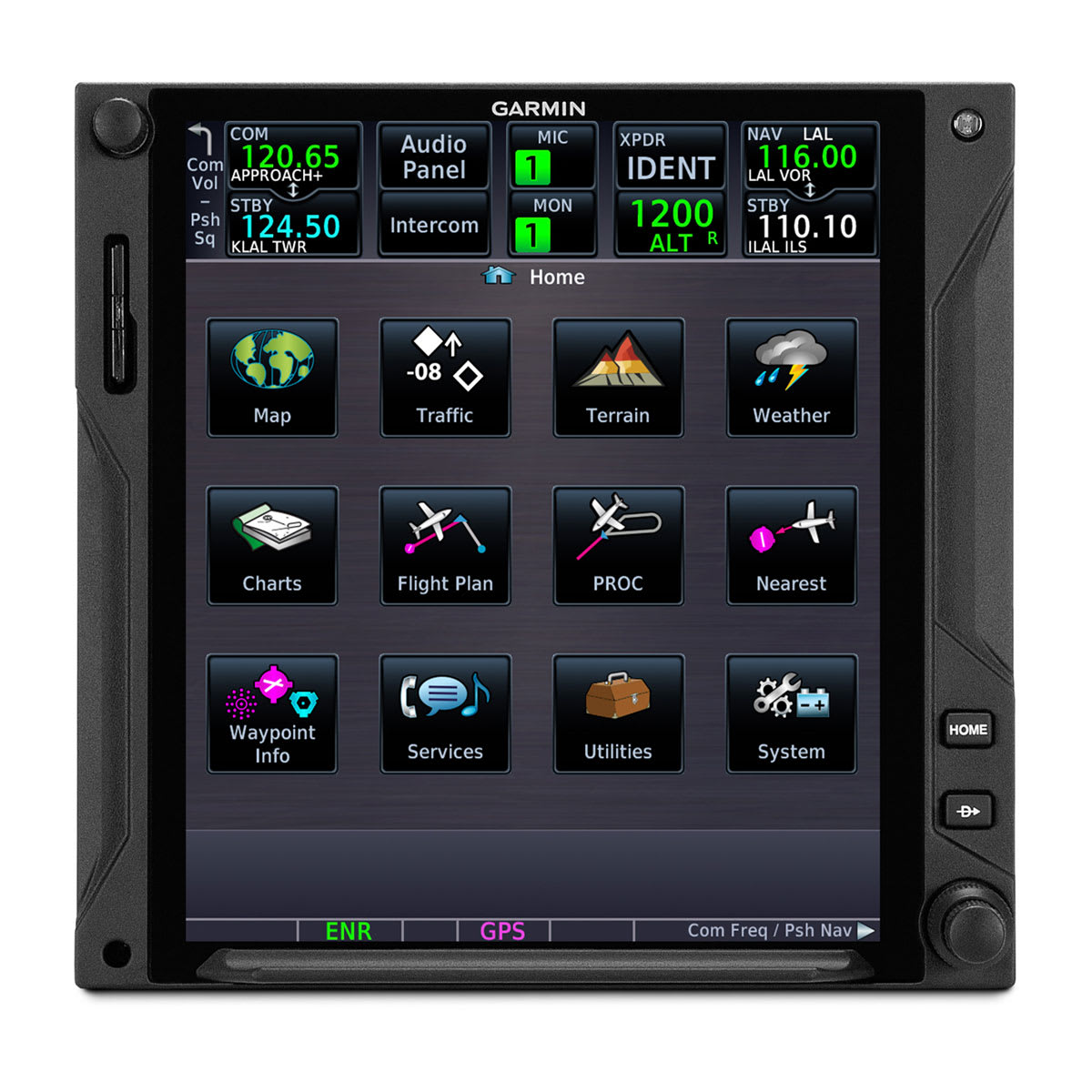

GTN™ 750Xi has a 6.9" touchscreen with a high-resolution display that that provides industry leading GPS/NAV/COMM/MFD capabilities.

Navigator Type	GPS/NAV/COMM/MFD GPS/MFD Clear

Description

TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
Display size: 6.9″ (175 mm) diagonal
Display resolution: 834 pixels (W) x 986 pixels (H)
Unit bezel height: 6.00″ (152 mm)
Unit bezel width: 6.25″ (159 mm)
Unit depth with connectors: 11.25″ (286 mm) (measured from face of aircraft panel to rear of connector backshells)
Unit weight: 7.1 lbs (3.22 kg)
Input voltage range: 11 VDC – 33 VDC
Operating temperature range: -20° C to 55° C (-4° F to 131° F)
Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
Maximum velocity: 1,166 knots
Position update Interval: 0.2 sec (5 Hz)

Additional information

Navigator Type	GPS/NAV/COMM/MFD, GPS/MFD
