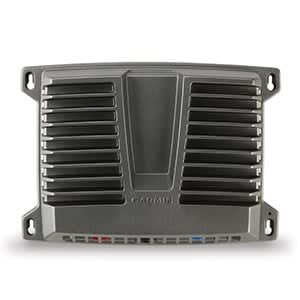

The GSD 24 features a vastly improved digital sonar design for superior target definition and deep-water performance.
Get the Whole Picture

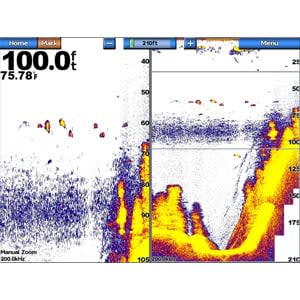

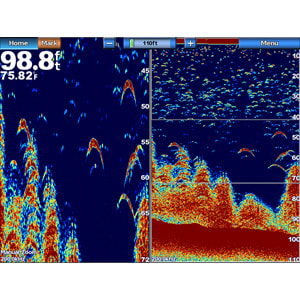

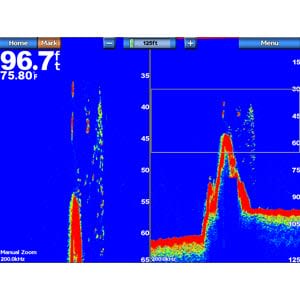

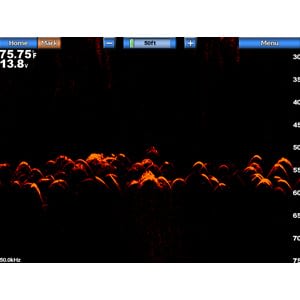

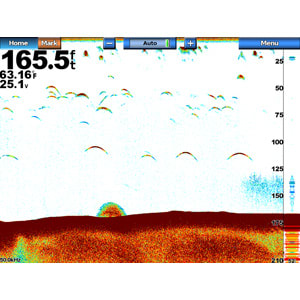

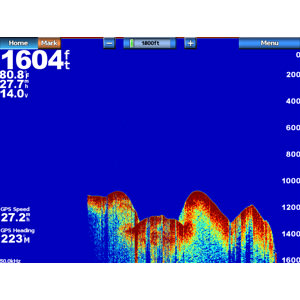

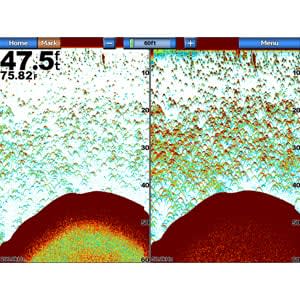

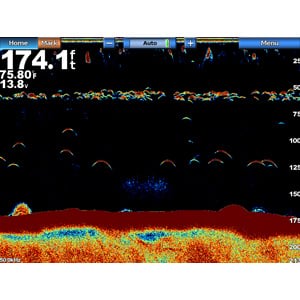

With up to 2,000 Watts of transmit power and a high-dynamic range receiver, the GSD 24 brings high-definition imaging to your compatible chartplotter. The system is dual frequency (50/200 kHz) capable and offers selectable transmit power (600 W, 1 kW and 2 kW, depending on transducer) for pin-point accuracy at depths of up to 5,000 ft (1,500 m). So whether youāre out sport fishing or just keeping an eye on hazardous terrain and reef structures beneath your boat, youāll see a clearer picture with enhanced separation of images and deeper bottom detection.
Plug and Play
Thanks to the easy connectivity of the Marine Network, installation of the GSD 24 is a snap. Once connected, your sonar data will be shared on any compatible chartplotter on the network. Plus, the network’s high-speed connections ensure that you get ultra-fast screen updates with minimal delay.
GSD 24: See what youāve been missing.
General |
|
| Case material | Fully gasketed, aluminum and steel housing |
|---|---|
| Dimension | 8″Ć11.2″Ć3.2″ (204 mm Ć 284 mm Ć 81 mm) |
| Weight | 5.27 lbs (2.39 kg) |
| Water rating | IPX7 |
| Temperature range | From 5Ā°F to 158Ā°F (from -15Ā°C to 70Ā°C) |
Electrical Features |
|
| Power input | 10-35 V |
|---|---|
| Power usage | 40 W maximum |
| Fuse | 7.5 A |
| Compass-safe distance | 15.75 in. (40 cm) |
Sonar Features |
|
| Frequency | 50/200 kHz |
|---|---|
| Transmit power | 25-2,000 W rms |
| Maximum depth | 5,000 ft. (1,524 m) |
Connections |
|
| Marine Network Ports |
1 |
|---|---|
