General

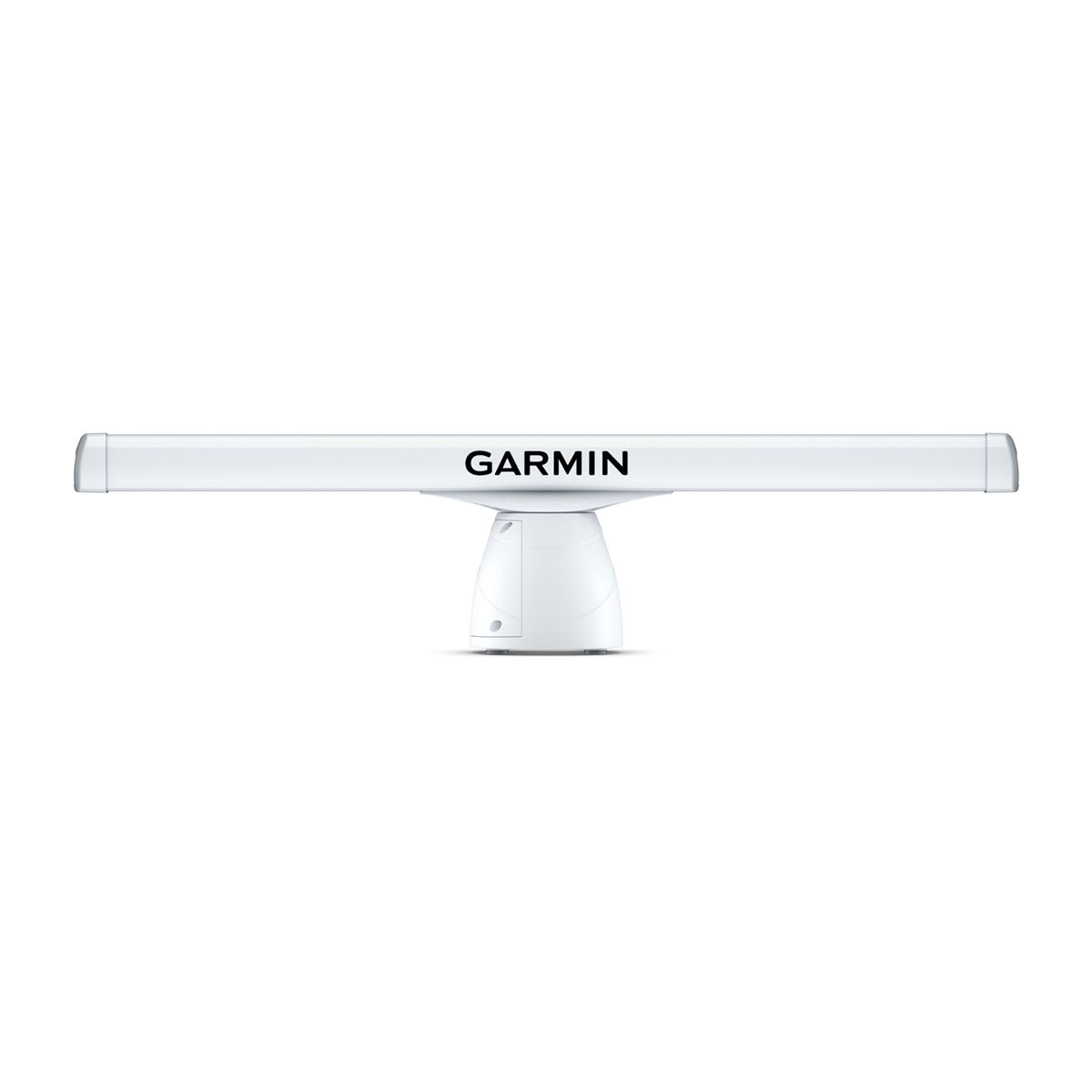

6′ array: 1938 x 122 x 170 mm (76.5″ x 4.8″ x 6.7″)
Pedestal: 520 x 328 x 314 mm (20.5″ x 12.9″ x 12.4″)
4' array and pedestal: 27.7 kg
6' array and pedestal: 29.7 kg
6′ array: 72″ (183 cm)
6′ array: 1.1° horizontal, 23° vertical
Electrical Features |
|
| Power Input | 10-32 V DC |
|---|---|
| Power Consumption (standby) | 18 W |
| Typical power consumption, transmitting (normal mode) | 70 W |
| Transmit power | 12 kW |
Radar Features |
|
| Dual range | |
|---|---|
| Overlay | |
| Dual radar support | |
| Auto Bird Gain | |
| Auto Gain | Dynamic |
| MARPA target tracking | yes (requires heading sensor, sold separately) |
| Echo Trails | True |
| Programmable antenna parking | |
| Target size | |
| Scan averaging | |
