General |
|
| Dimension | 6.25”W x 1.30”H x 7.80”D (15.9 x 3.3 x 19.8 cm) |
|---|---|
| Weight | 2.4 lb (1.1 kg) |

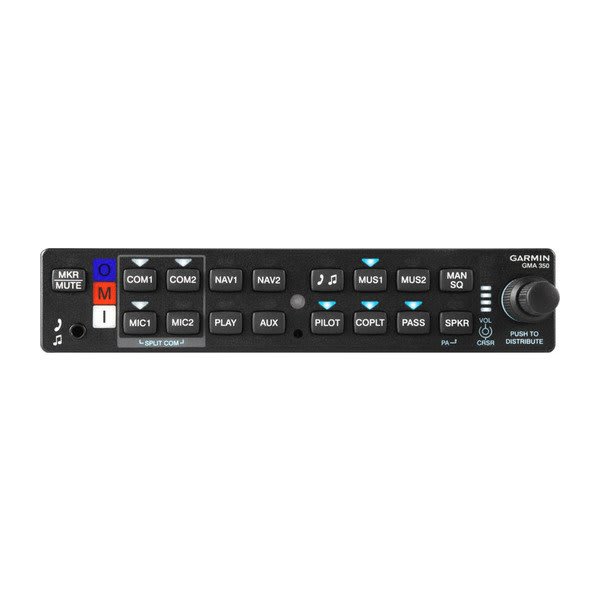

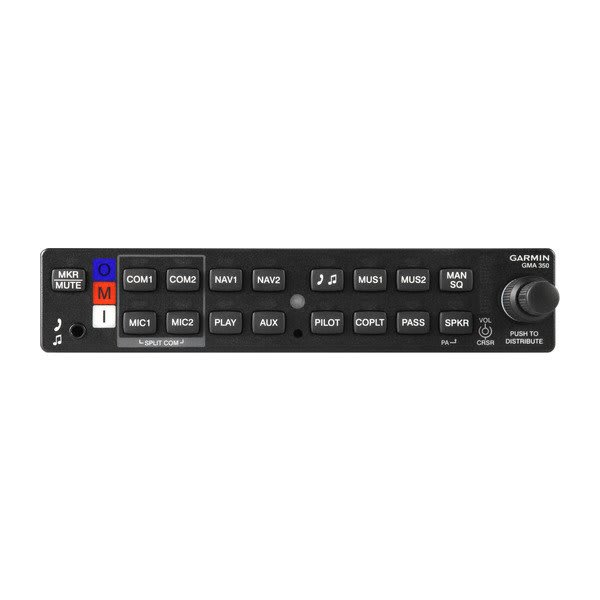

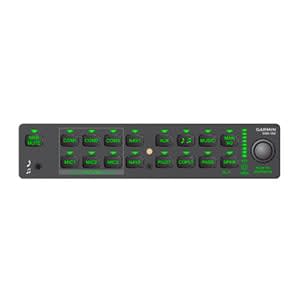

Audio Panel Features |
|
| Telephone interface | dedicated full-duplex tel interface (no PTT keying required) |
|---|---|
| ICS (intercom system) | 6 to 7 position intercom (individual VOX processing for each mic position) |
| ICS isolation modes | 5 – All, Pilot, CoPilot, Crew/Pass, None |
| Transceivers | 2 – COM1, COM2 |
| Additional receiver inputs | 5 – NAV1, NAV2, AUX1, AUX2, AUX3 |
| Music source input | 2 stereo music source inputs |
| Music input impedance | rear pins: 600 Ohms; front panel jack: 5 kOhms |
| Music frequency response | 20Hz – 20kHz |
| Speaker output | 28V aircraft — 10W into 4 Ohms, 7W into 8 Ohms; 14V aircraft — 3W into 4 Ohms |
| PA function | pilot selectable — requires pressing and holding SPKR button to change state |
| Marker beacon | dual sensitivity |
| Automatic squelch | |
| Manual VOX level controls | 1 (shared threshold, individual processing) |
| Avionics squelch (squelch processing for noise reduction) | |
| Split com (CoPilot transmits and receives on Com2 while Pilot transmits and receives on Com1) | |
| Alert/Unswitched inputs | 5 |
| Front panel jack | yes (3.5mm – smartphone compatible) |
| Front panel music volume control | yes (music and telephone volume controls) |
| TSO Authorization | |
Additional |
|
| Additional | includes marker, AUX and speaker volume controls; also features 3D spatial audio and automatic speech recognition. |
|---|---|
