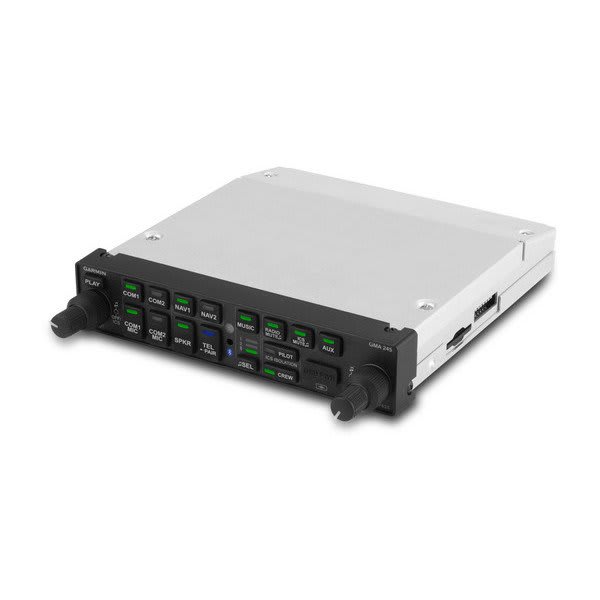

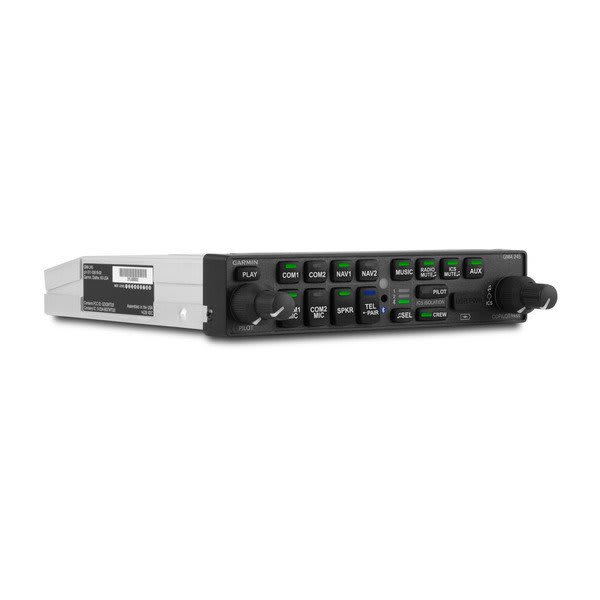

Physical & Performance

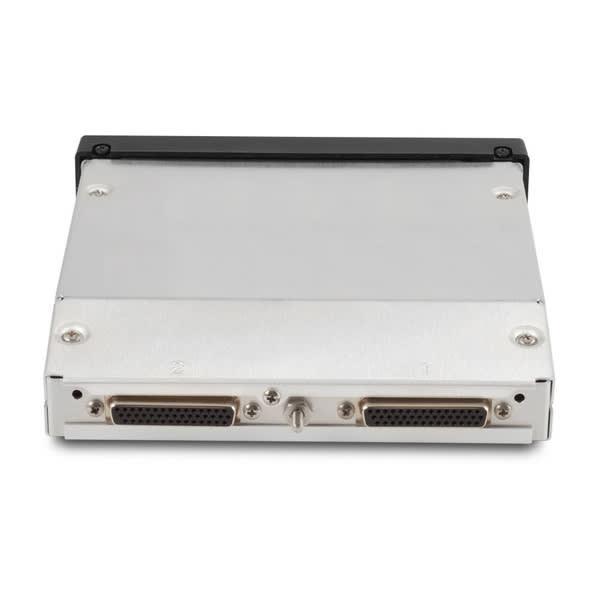

- Unit size: 6.3″>”W x 1.33″>”H x 8.09″>”D (160 x 34 x 205 mm) includes mounting rack and connectors
- Weight: 1.78 lbs (807.4 g) includes rack, backplate and connectors
- Electrical: 14-28 VDC
Environmental
- Temperature: -20° C to +55° C (operating)
- Altitude range: to +55,000 ft MSL unpressurized
- Power requirements: 11 to 33 VDC input
Audio Inputs
- Impedance: 600 ohm
- Max. input: 5 Vrms
- Isolation: 60 dB minimum
- Bandwidth: 100 Hz to 6.5 kHz
- Transceiver: 3 (including TEL)
- Receiver: 5 (NAV1, NAV2, AUX1, AUX2, AUX3)
- Alerts: 4 (unswitched)
- Telephone input: 1
Intercom Functions
- Positions: 6 (pilot,copilot, 4 passengers)
- Volume control: 2 (pilot, copilot/passengers)
- VOX: Automatic (1 per MIC input)
- Modes: Pilot, crew, all
- MIC impedance: 150 ohm
- MIC Bias: 11 VDC through 470 ohm
- Keyed ICS: Configurable
Music functions
- Inputs: 2 (independent from Bluetooth audio)
- Impedance: 600 ohm (differential)
- Max. input: 3.0 Vrms
- Gain: +24 dB Max/-96dB min
- Input level: < 200 mVrms at max gain for full power out 3dB@1kHz Bandwidth 20 Hz to 20 kHz
- Distortion: < 0.1% THD+N typical at full power over full bandwidth
- Muting: Selectable and configurable
- Volume control: Knob controlled (pilot and copilot/passenger)
Bluetooth
- Supported profiles: A2DP and AVRCP (music) and HFP (phone)
- Paired devices stored: 10
- Connections allowed: 1 device
- Supported devices: Phones, tablets, VIRB XE, G3X additional features
- Volume: Set by device, and adjustable on GMA display 3dB@1kHz Bandwidth 20 Hz to 20 kHz
- Distortion: < 0.1% THD+N typical at full power over full bandwidth
- Firmware updates: Free and field loadable by SD card
Headphone Outputs
- Output amplifiers: 3 Stereo (pilot, copilot, passenger)
- Output power: 65 mW into 150 Ohms Pilot and Copilot, 260 mW into 37.5 Ohms passenger
- Distortion: < 3% THD+N at 10% Power, < 10% THD+N at full power
- Frequency response: 20 Hz to 20 kHz
- Impedance rated: 150 Ohm pilot/copilot, 37.5 Ohm Passenger (4-150 Ohm headsets)
- Impedance supported: 150 to > 600 Ohm
USB Charge Port
- Rated power: 10 Watt
- Max charge current: 2.1 Amps
- Overcurrent protection: USB charge port protection with current > 2.3 Amps
- Device supported: Any USB device
- Charging scheme: DCP
Speaker
- Outputs: 1
- 28 Volt Aircraft : 10 Watt into 4 Ohm; 7 Watt into 8 Ohm
- 14 Volt Aircraft: 3 Watt into 4 Ohm 3dB@1kHz Bandwidth 350 Hz to 6.5 kHz
- Distortion: < 10% THD+N at full power, < 3% THD+N at 10% power
Voice Recorder
- Record time max: 1 minute
Code Load Options
- SD card or by G3X when in the G3X system
DIP Switch
- Config switches: 8 (See install manual for descriptions)
Lighting Bus
- Voltage: 14 V or 28 V
