Add Panoptix LiveScope™ Scanning Sonar to Your Compatible Chartplotter

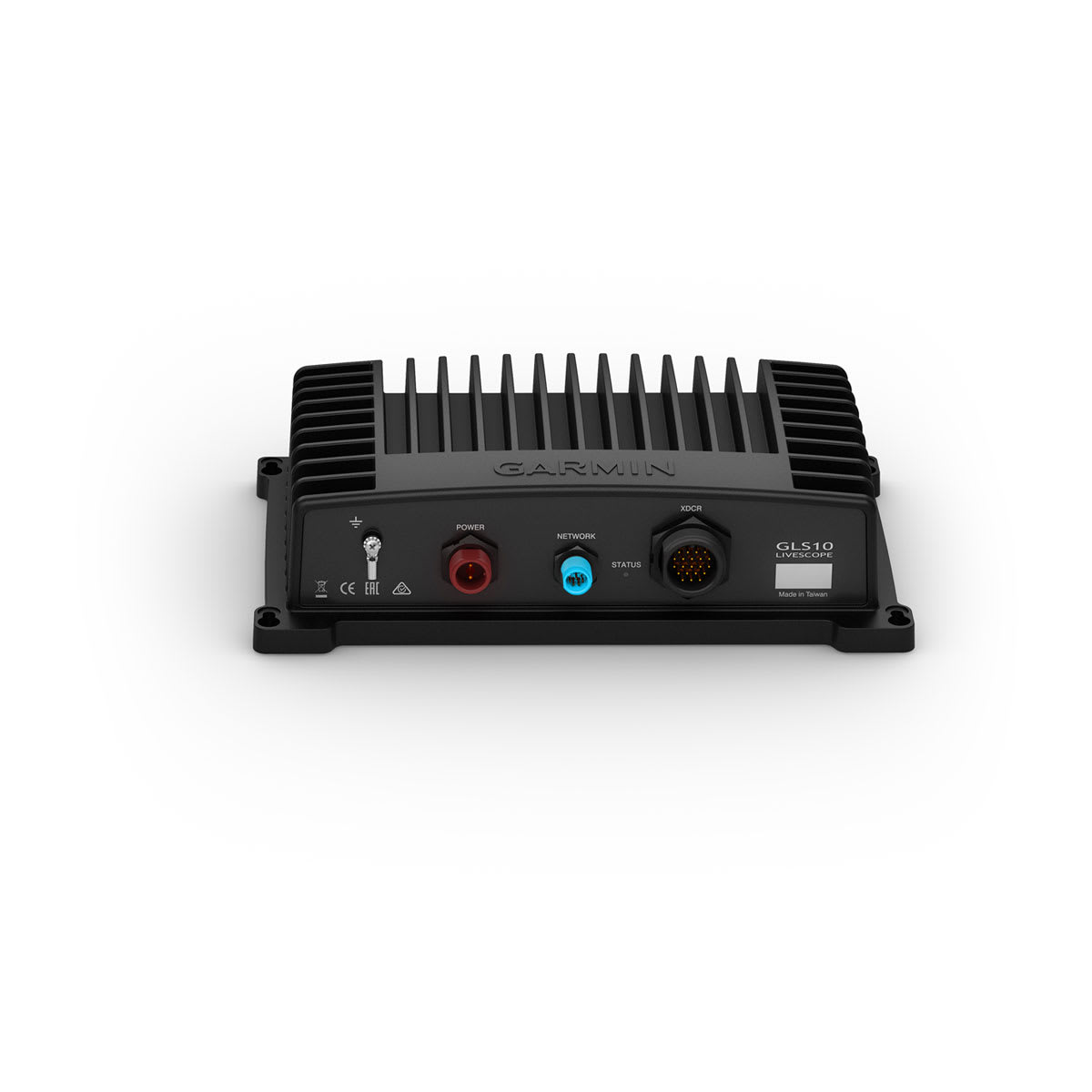

The easy-to-install, networkable GLS 10 sonar black box allows you to see live, real-time scanning sonar. Add the LVS32 transducer model to see easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat. And you can share sonar images seamlessly across multiple networked chartplotters.
Panoptix LiveScope Down
LiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boat — up to 200’ — even while your boat is stationary.
Panoptix LiveScope Forward
LiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.
General |
|
| Dimension | 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm) |
|---|---|
| Weight |
4.3 lbs (2.0 kg) |
| Water rating | IPX7 |
| Temperature range | Operating: -15 C to 70 C |
Electrical Features |
|
| Power input | 10-32 V |
|---|---|
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
Sonar Features |
|
| Frequency | 530 – 1,100 kHz |
|---|---|
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
Connections |
|
| Marine Network Ports |
1 (small connector) |
|---|---|
