Dimensions
5.5” x 4.1” x 2.0” (140 x 105 x 51 mm)
Touchscreen
yes
Display resolution
800 x 480
Display type
WVGA
Weight
11.57 oz (328 g)
Water Rating
IPX7
Mounting options
Flat or flush

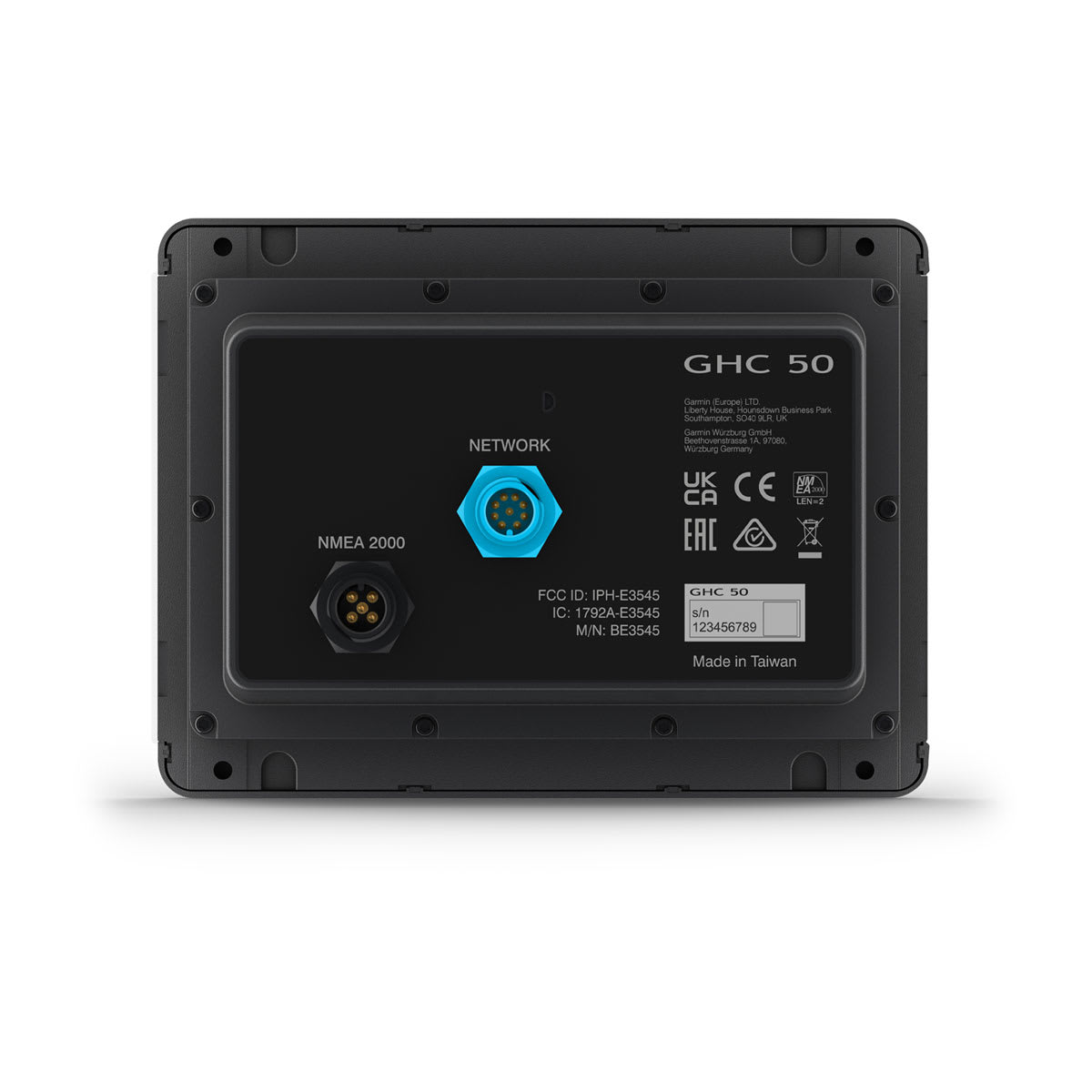

Connections
|
NMEA 2000 ports |
1 |
|
Marine Network ports |
1 |
|
ANT+ (Connectivity) |
yes |
|
Wi-Fi Network (local connection) |
yes |
Electrical Features
|
Power input |
9 to 32 Vdc |
|
Typical current draw at 12 VDC |
220 mA |
|
Maximum current draw at 12 VDC |
400 mA |
|
Maximum power usage at 10 VDC |
4.9 W |
