Name: Spectra™
SKU: 010-02829-00
Availability: InStock

Spectra™

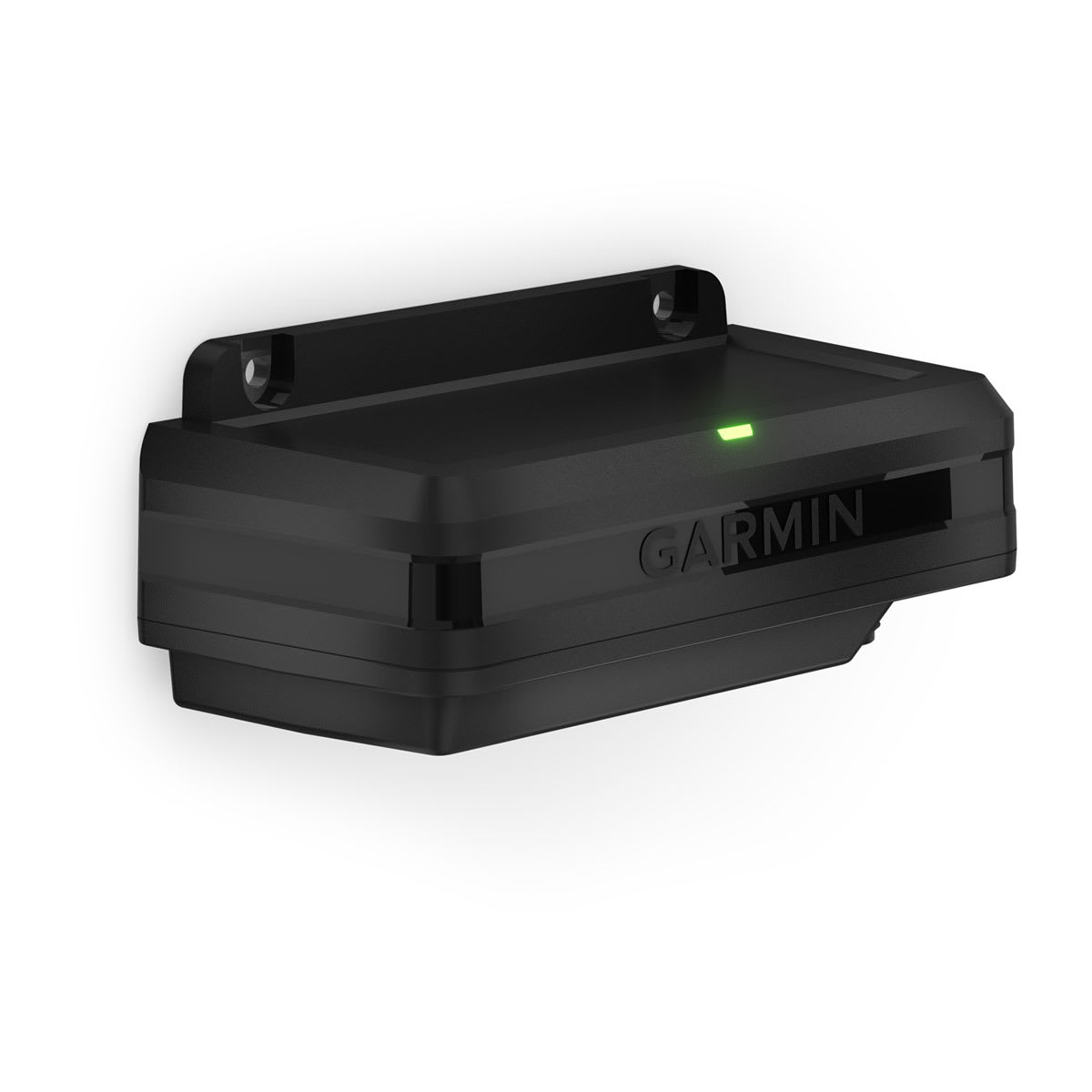

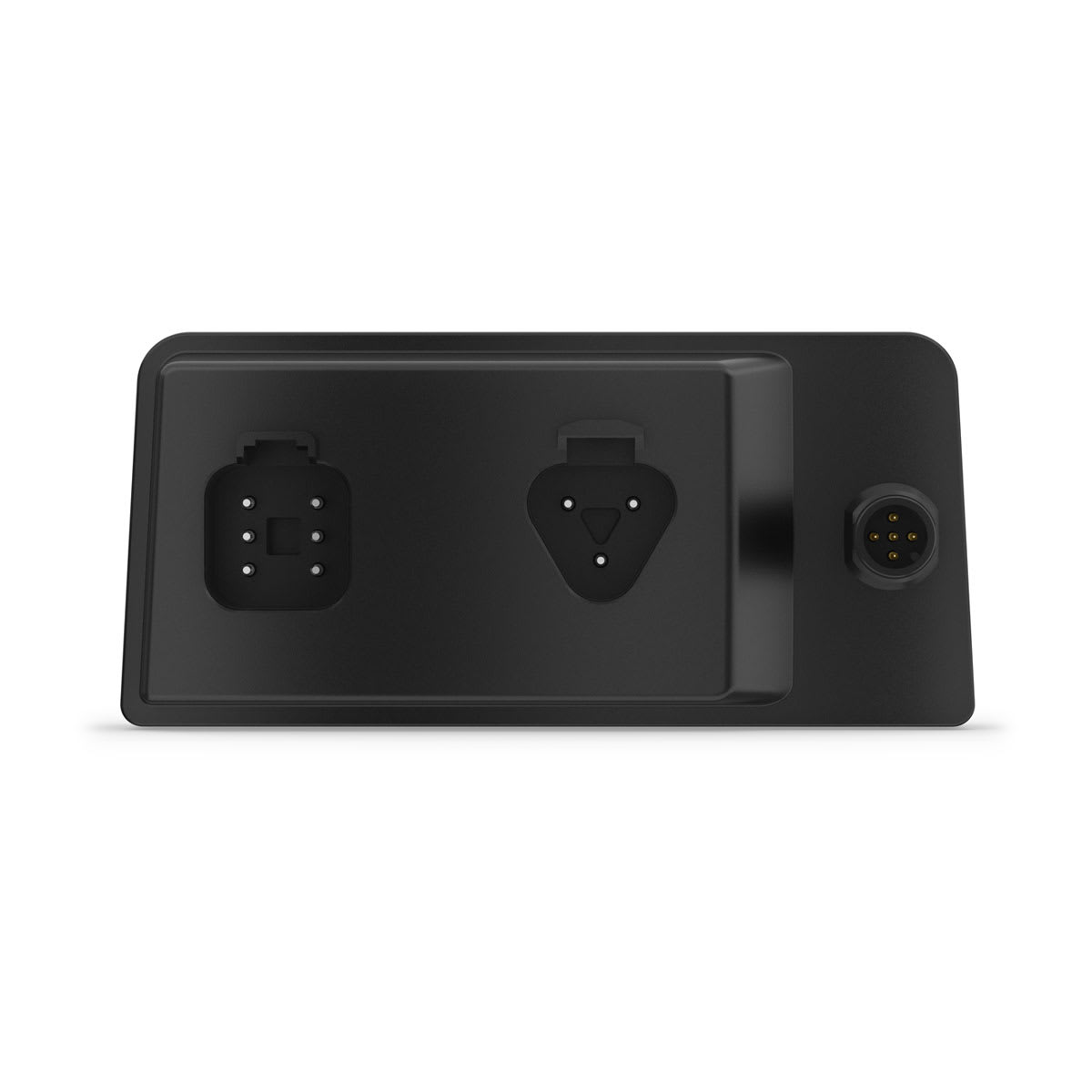

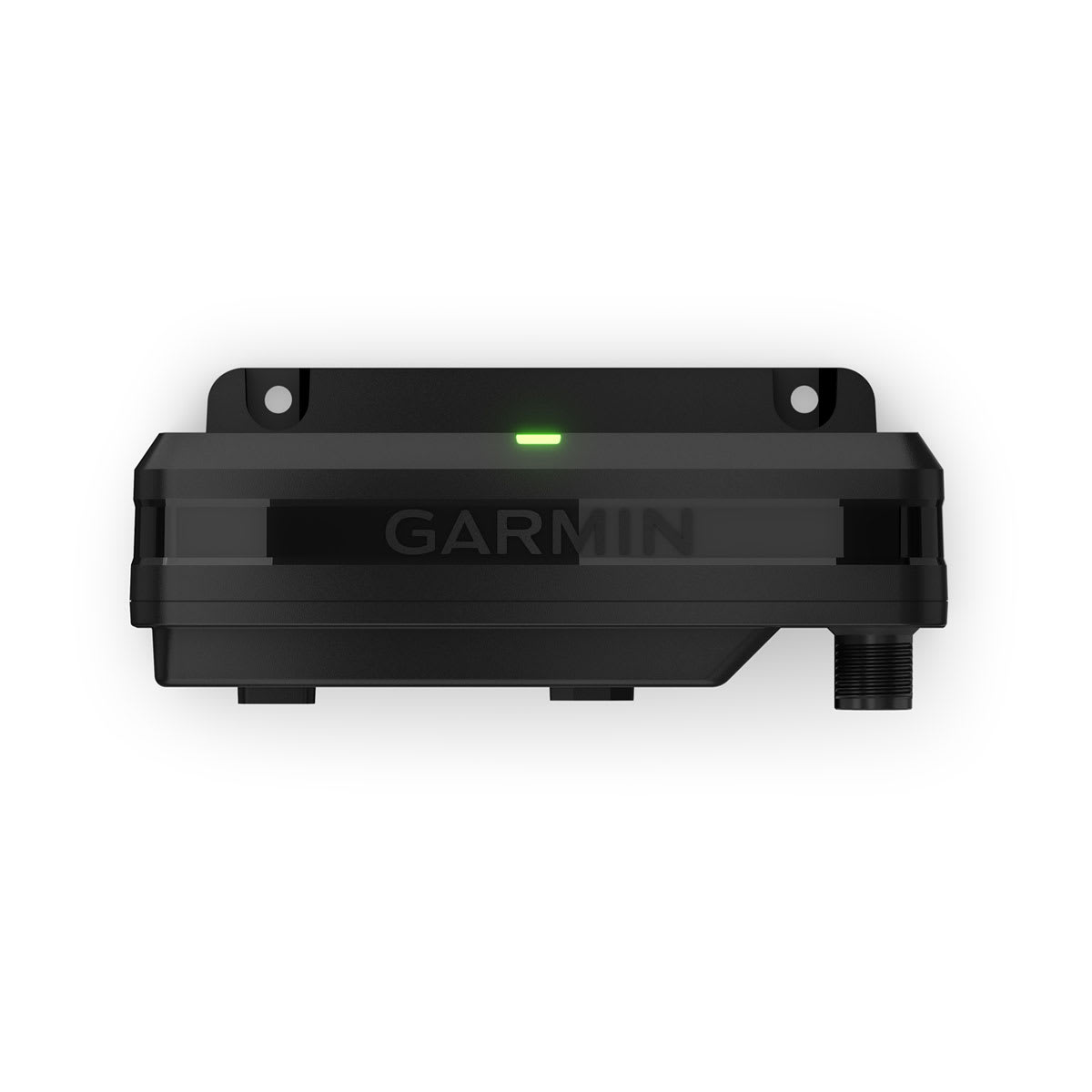

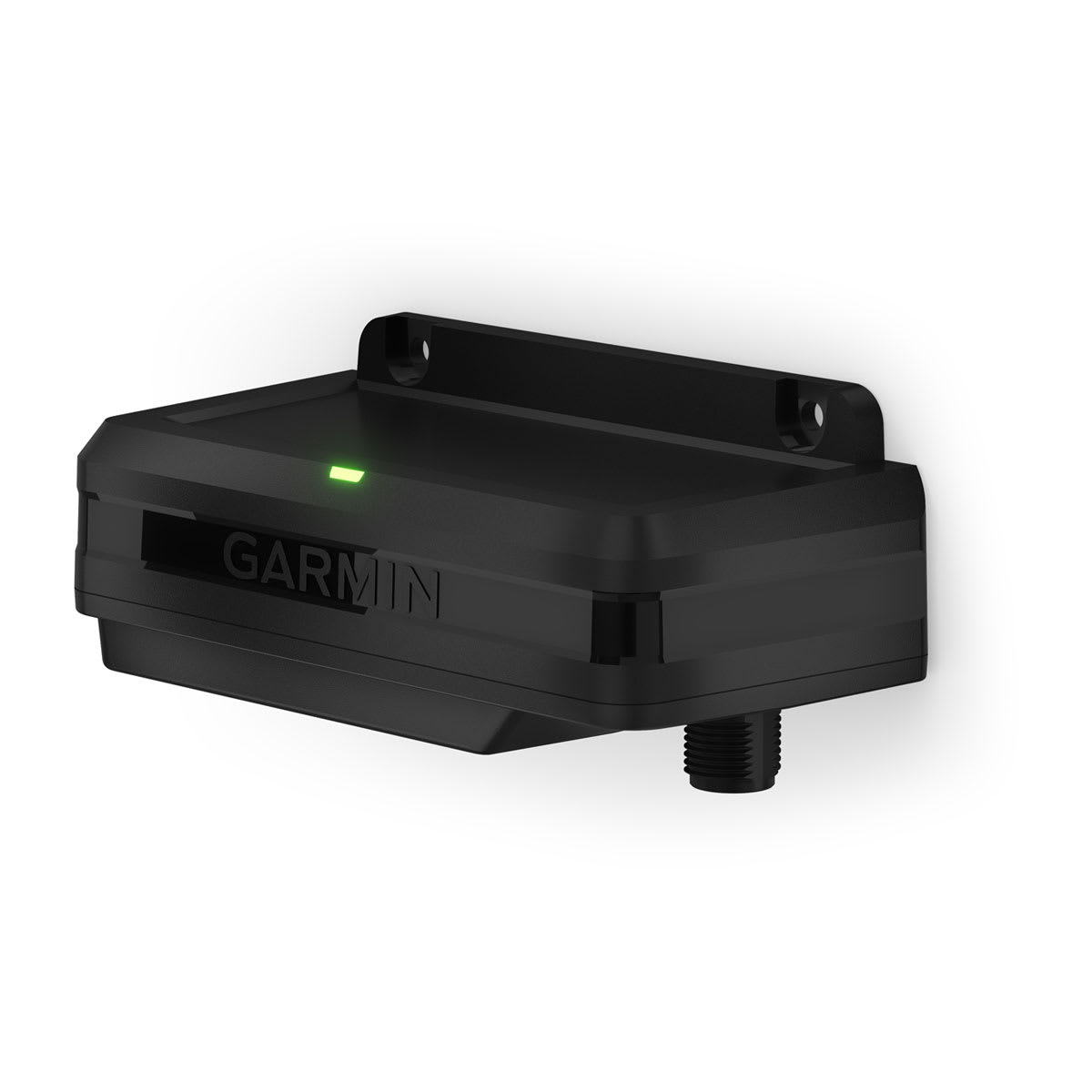

Control LED lights on your boat from your compatible chartplotter or smartphone with the Spectra LED control modules.

General

Unit dimensions (WxHxD) LC302: 7.76″>” x 2.05″>” x 1.85″>” (197 x 52 x 47 mm)
LC102: 4.45″>” x 2.05″>” x 1.85″>” (113 x 52 x 47 mm) Weight LC302: 5.57 oz (158 g)
LC102: 2.93 oz (83 g) Water rating IP66/IP67 Operating temperature range 32° to 122° F (0° to 50° C) Compass-safe distance 7.87″>” (20 cm) Warranty 2 years

Electrical

Input voltage 10.8 to 16 V (12 V system)
21.6 to 32 V (24 V system) Input current (max) LC302: 6 A
LC102: 2 A Output current (max) 2 A (per output connector) NMEA 2000® LEN 2 (≤ 70 mA) Over voltage protection yes Over current protection yes

Lighting Features

LED connection types RGB, RGBW, CRGBW, single channel Lighting modes Color pick, audio sync (color blend/audio spectrum), effects Premium control and setup via MFD or ActiveCaptain® app Control via Fusion Apollo™ Stereo
