General |
|
| Physical dimensions (Height) | 3.23″ (82 mm) |
|---|---|
| Physical dimensions (Width) | 7.56″ (192 mm) |
| Physical dimensions (Depth) | 4.7″ (119.4 mm) |
| Weight |
1.37 lbs (620 g) |
| Control Surface Dust/Water Rating (when properly installed) | IPX6 and IPX7 |
| Rear Dust/Water Rating (when properly installed) | IPX3 |
| Operating temperature range | -20 to 70° C |
| Current draw (max) | 25 A at 14.4 V; 15A at 28.8 V |
| Warranty | 3 years |
Networking |
|
| NMEA 2000® LEN | 2 (65 mA) |
|---|---|
| Bluetooth® wireless range | up to 30 ft |
| ANT® wireless range | Up to 10 ft |
| Wireless frequencies/protocols | WiFi 2.4Ghz : +12dBm nominal MIMO 2 x 2 BLUETOOTH®: 2.4 GHz @ +10 dBm nominal ANT®: 2.4GHz 0dBm nominal |
Audio |
|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 40 W x 4 |
|---|---|
Electrical Features |
|
| Power Input | 10.8 to 32 Vdc |
|---|---|
| Compass-safe distance | 5.9″ (150 mm) |
Stereo Features |
|
| Display size | 4.3″ (109 mm) |
|---|---|
| Display type | capacitive touchscreen color LCD |
| Display resolution | 800 x 480 |
| Optically bonded display | |
| Built-in amplifier | Class D (4 Ω) |
| Built-in Wi-Fi® | |
| Built-in Digital Signal Processing (DSP) | yes (with custom DSP profile setup using Fusion-Link™ app) |
| Stereo networking | yes (wired or wireless) |
| Fusion-Link™ control | yes (MFD, smart device and watch) |
| Multi-Zone™ technology | 4 zones |
| Bluetooth® wireless technology | |
| ANT® wireless technology | |
| Multi-language interface |
Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish |
| Software updates | Over-the-air updates via Fusion-Link™ app (when connected to wireless network router) / USB |
Sources |
|
| Supported sources |
AM, FM, BLUETOOTH®, Apple AirPlay® 2, HDMI ARC, USB audio, iPhone, iPod, AUX x2 |
|---|---|
| Supported audio formats (USB) | MP3, AAC, M4A, FLAC, WAV |

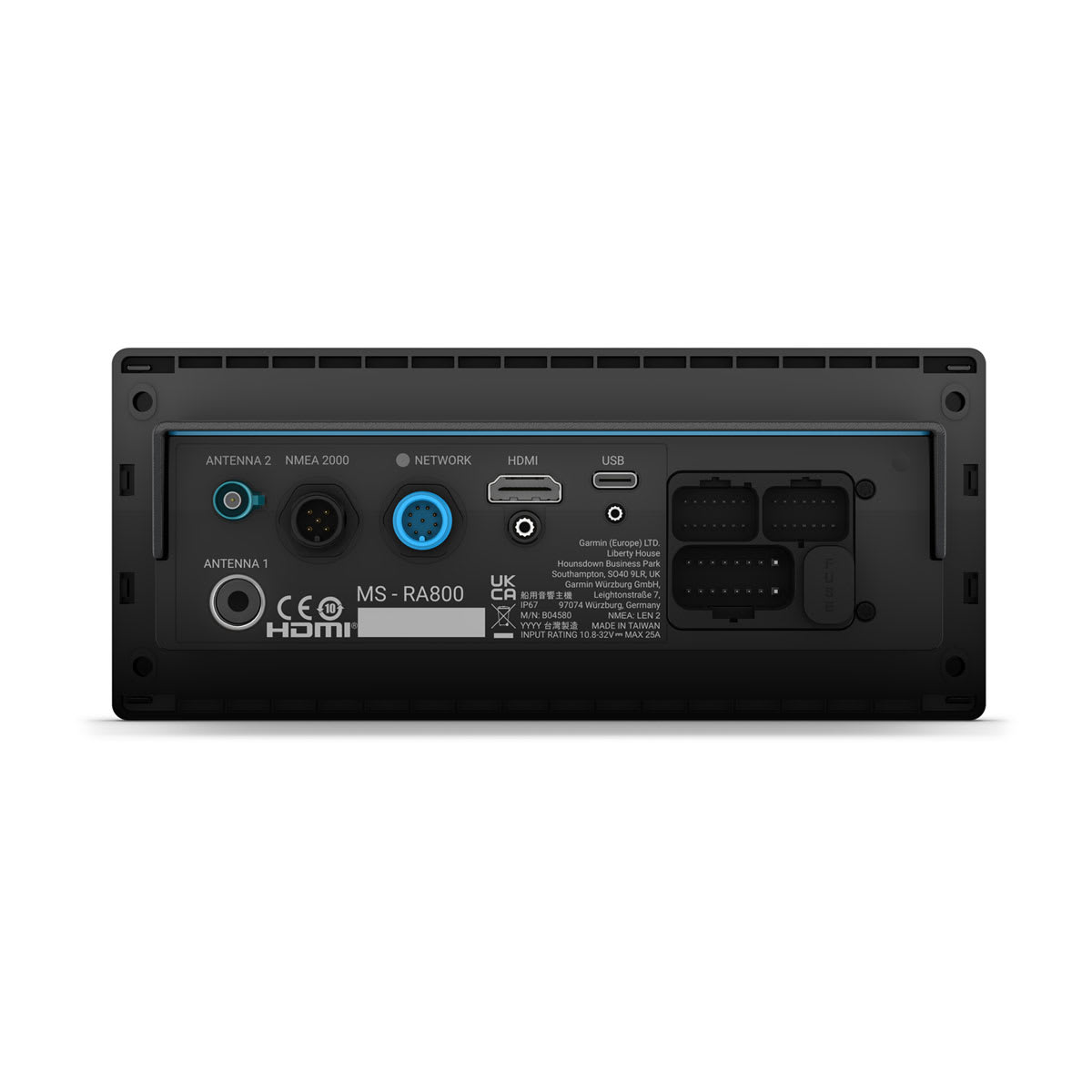

Connections |
|
| Auxiliary inputs (RCA) | 2 |
|---|---|
| HDMI ARC Ports | 1 |
| Ethernet ports | 1 |
| NMEA 2000® ports | 1 |
| USB 2.0 ports | 1 (USB-C) |
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer – requires external amplification) | 4 zones |
| Line out (requires external amplification) | 4 (L + R per zone) |
| Subwoofer out (requires external amplification) | 4 (1 mono output per zone) |
