General
80 lbs per ISO 13342 using high efficiency propeller at 24 V

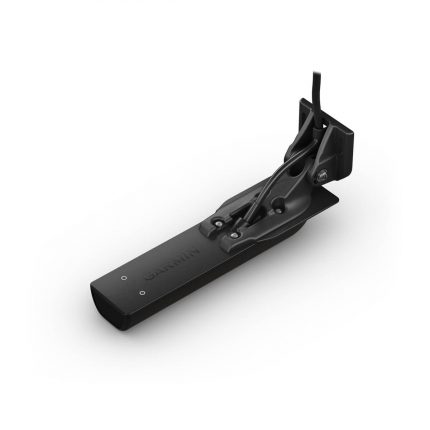

Sonar Features |
|
| Frequencies supported | Traditional: High-wide CHIRP (150-240 kHz)
ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz |
|---|---|
| Transmit power | Traditional: 350 W ClearVĆ¼/SideVĆ¼: 500 W |
| Maximum depth | CHIRP sonar: 800′ freshwater ClearVĆ¼: 400′ SideVĆ¼: 500′ |
| Depth/speed/temperature | depth and temperature |
| Number of pins | 12-pin (orange connector) |
Autopilot Features |
|
| Route following | |
|---|---|
| Anchor lock | |
| Smart Anchor Lock features | |
| Anchor lock jog | |
| Heading hold | |
| Cruise control | |
| Gesture features | yes (manual+, heading hold+, jog+) |
Foot Pedal Features |
|
| Dimensions | 12″ L x 9″ W x 4 1/2″ H |
|---|---|
| Wireless communication | |
| Power installation | 12 V/24 V/36 V wired or battery powered (2 AA) |
| AA battery life | 1 full season |
| Water rating | IPX7 |
| Adjustable pedal resistance | |
Remote Features |
|
| Display size | 1.2″ (30.2 mm) diameter |
|---|---|
| Display resolution | 240 x 240 pixels |
| Display type | color, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user-programmable keys | |
| Autopilot feature control | |
| Water rating | IPX7 |
| Battery life | typical use with backlight at low, 43 weeks |
| Floats | |
