General |
|
| Color | black |
|---|---|
| Mount style | 4-hole tilt mount |
| Max thrust | 50 lbs (ISO13342) using high efficiency propeller at 24V 30 lbs (ISO13342) using high efficiency propeller at 12V |
| Voltage | 12 V or 24 V |
| Electric steering | |
| Built-in heading sensor | |
| Built-in GPS | yes (dual frequency GPS) |
| Warranty | 3-year, limited lifetime on shaft |
| Water rating | IPX7 |
| Mounting location | stern |
| Wireless remote | yes (included) |
| Shaft length (from mount to top of drive motor) | 16.6″ (max); 11.4″ (min) |
| Power steer foot pedals (kayak) compatible | |
| Battery indicator | |
| Variable speed control | yes (20 steps) |
| quatix remote control supported | |
| Manual reverse control | |
Autopilot Features |
|
| Route following | |
|---|---|
| Anchor lock | |
| Smart Anchor Lock features | |
| Anchor lock jog | |
| Heading hold | |
| Cruise control | |
| Gesture features | yes (manual+, heading hold+, jog+) |
Power Steer Foot Pedals (Kayak) |
|
| Wireless communication | |
|---|---|
| Power installation | batteries (2 AA) |
| AA battery life | 1 full season |
| Water rating | IPX7 |

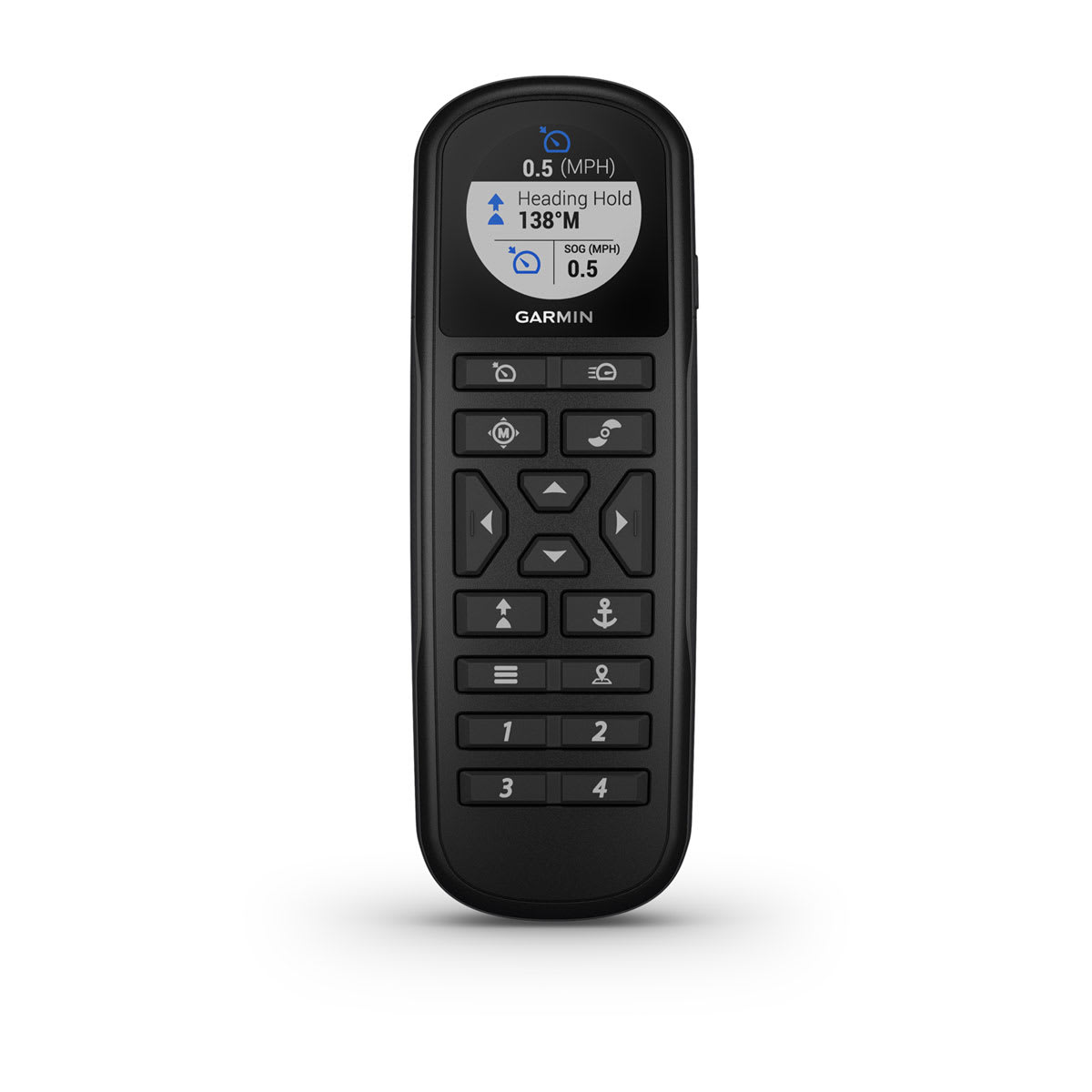

Remote Features |
|
| Display size | 1.2″ (30.2 mm) diameter |
|---|---|
| Display resolution | 240 x 240 pixels |
| Display type | color, sunlight-visible, transflective memory-in-pixel (MIP) |
| Chartplotter user-programmable keys | |
| Autopilot feature control | |
| Water rating | IPX7 |
| Battery life | typical use with backlight at low, 43 weeks |
| Floats | |
