General |
|
| Dimensions (WxHxD) | 6.1″>” x 3.6″>” x 1.9″>” (15.5 x 9.2 x 4.7 cm) |
| Weight | 7.3 oz (206 g) |
| Communication | NMEA 2000® network LEN-5 Marine Network Wi-Fi® connectivity |
| Power supply | Powered via NMEA 2000 |
| Power consumption | Max/average 195 mA @ 9 volts / 165 mA @ 9 volts |
| Supply voltage | Supply voltage 9-32 volts DC |
| Ambient temperature | -15° C to +55° C |
| Enclosure water rating | IPX7 |

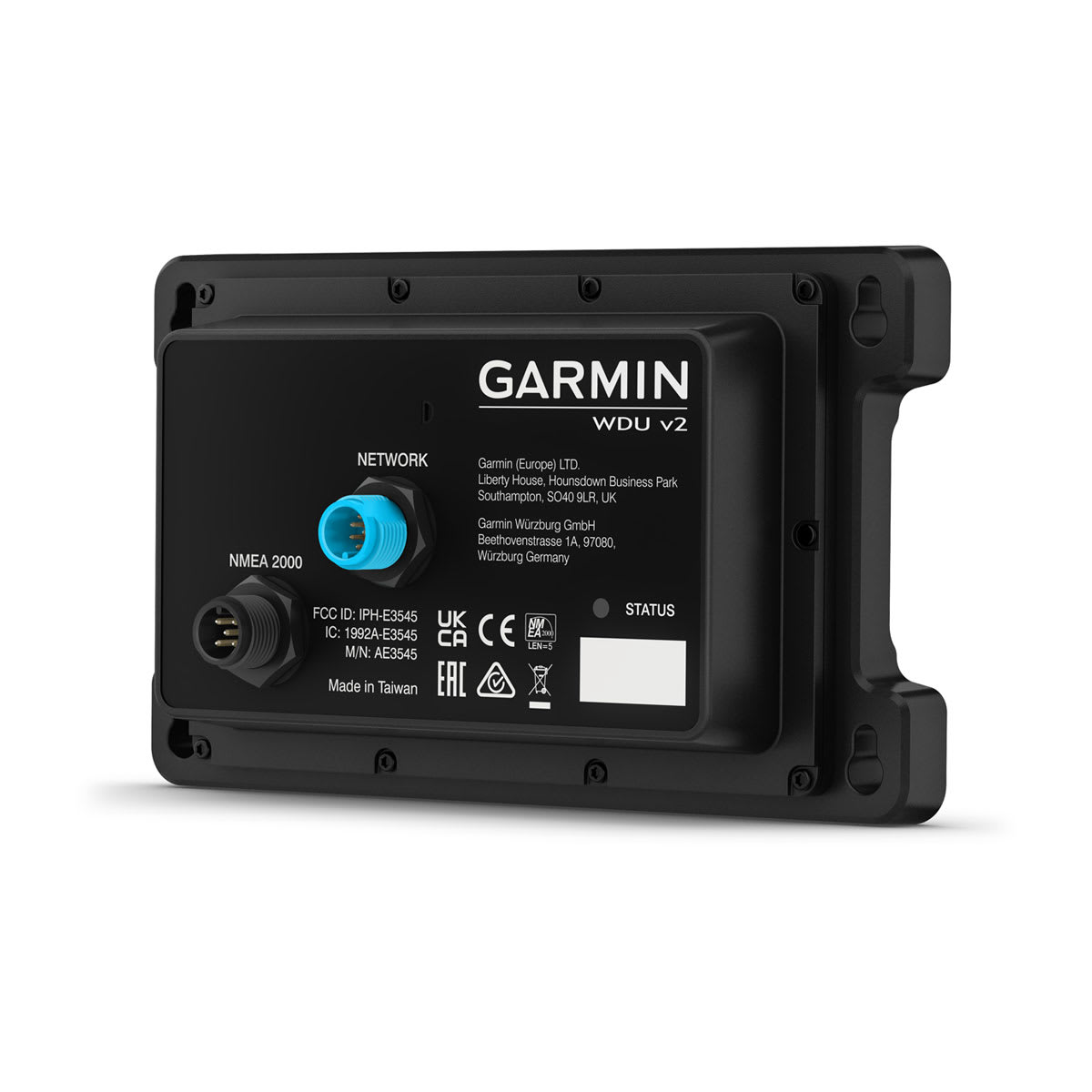

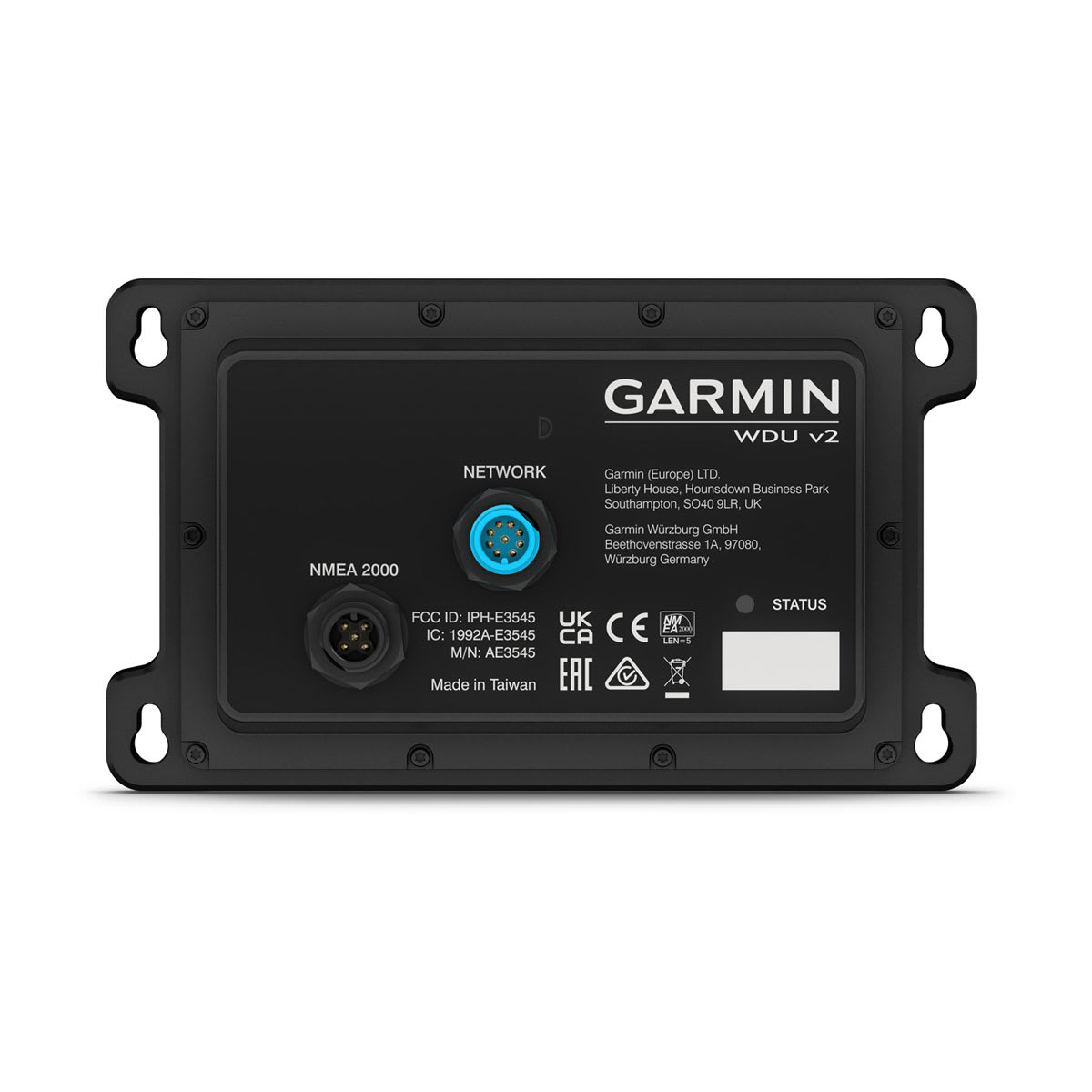

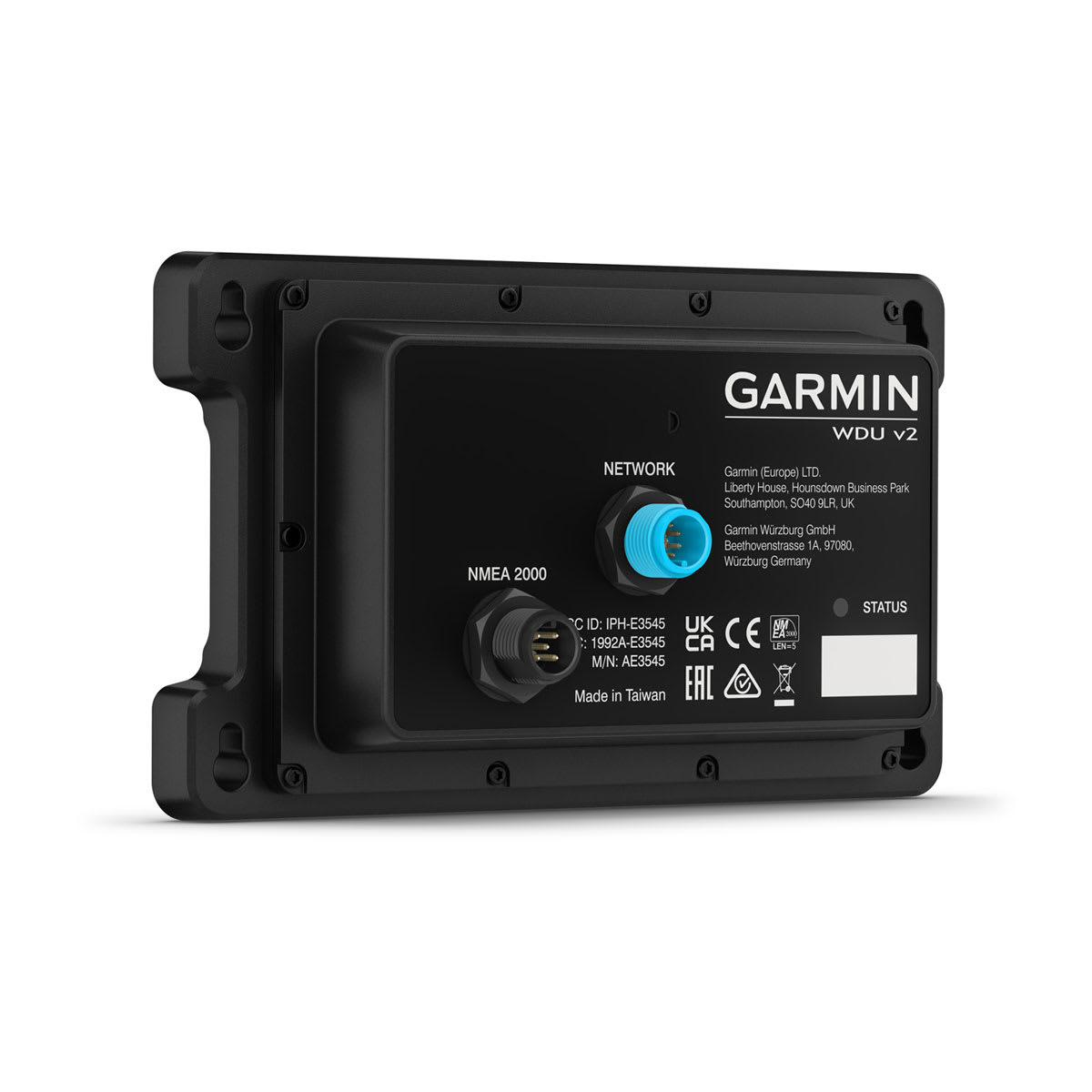

Connector |
|
| NMEA 2000 | Micro 5-pin M12 male |
| Marine Network | small connector |
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
