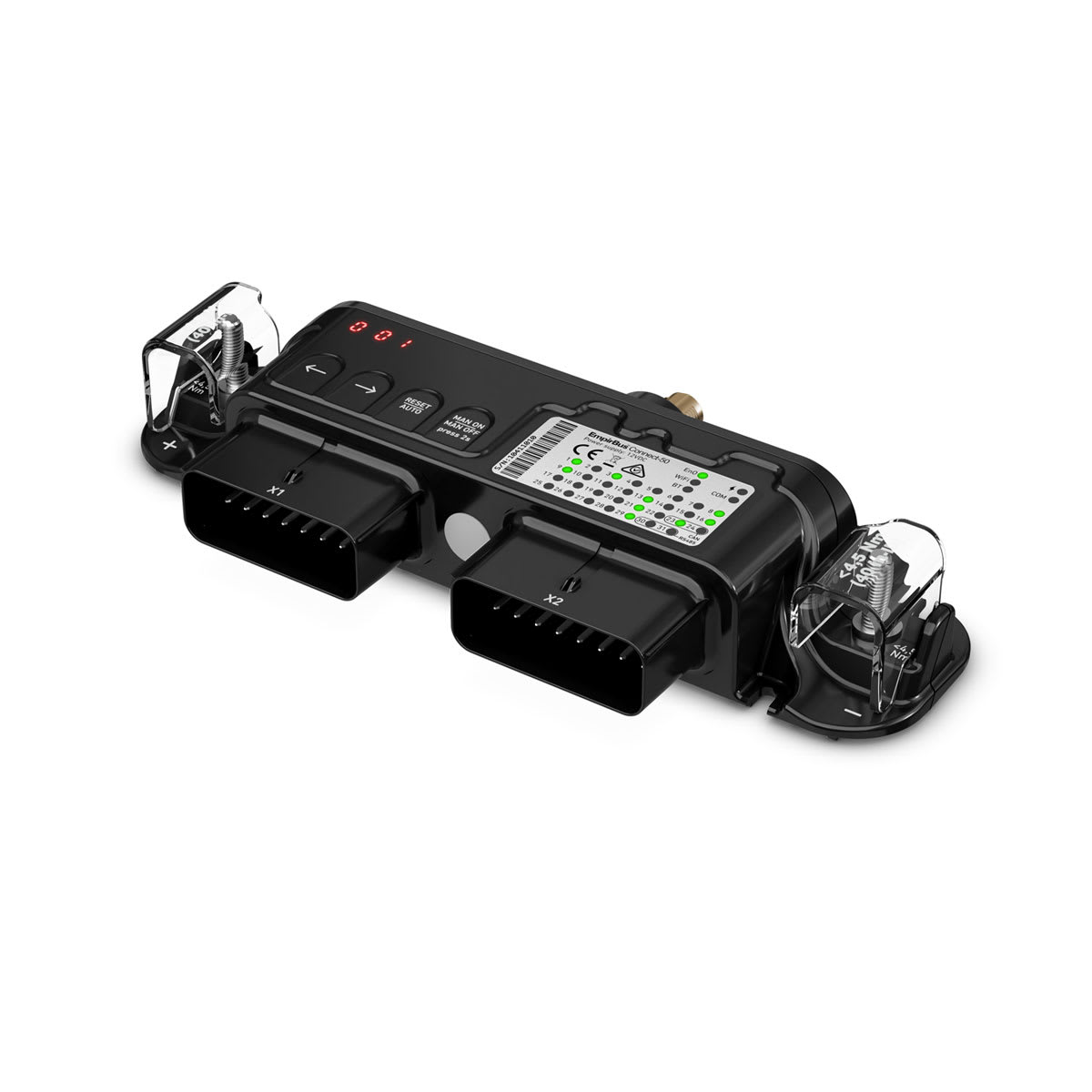

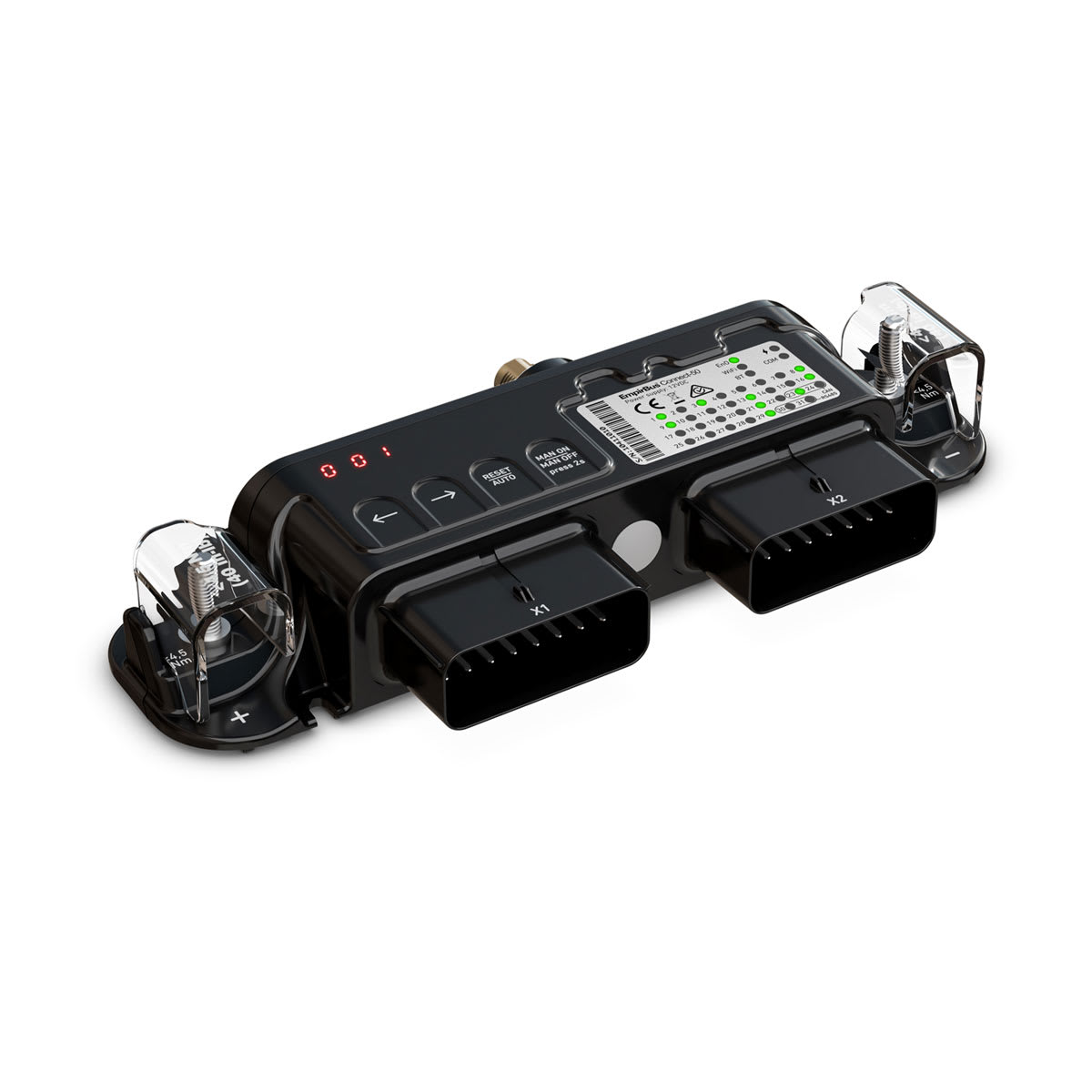

General |
|
| Dimensions (WxHxD) | 9.1″>” x 4.2″>” x 3.8″>” (23.0 x 10.6 x 3.8 cm) |
| Weight | 14.1 oz (400 g) |
| Communication* | CAN-bus NMEA 2000® CAN-bus galvanic isolated** RS485 galvanic isolated* Wi-Fi® connectivity |
| Ambient temperature | -20° C to +55° C |
| Enclosure water rating | Ingress Protection IP65 |
Power Supply |
|
| Maximum current | 50A |
| Power consumption | 1,5mA |
| Supply voltage 12V | 9-16VDC |

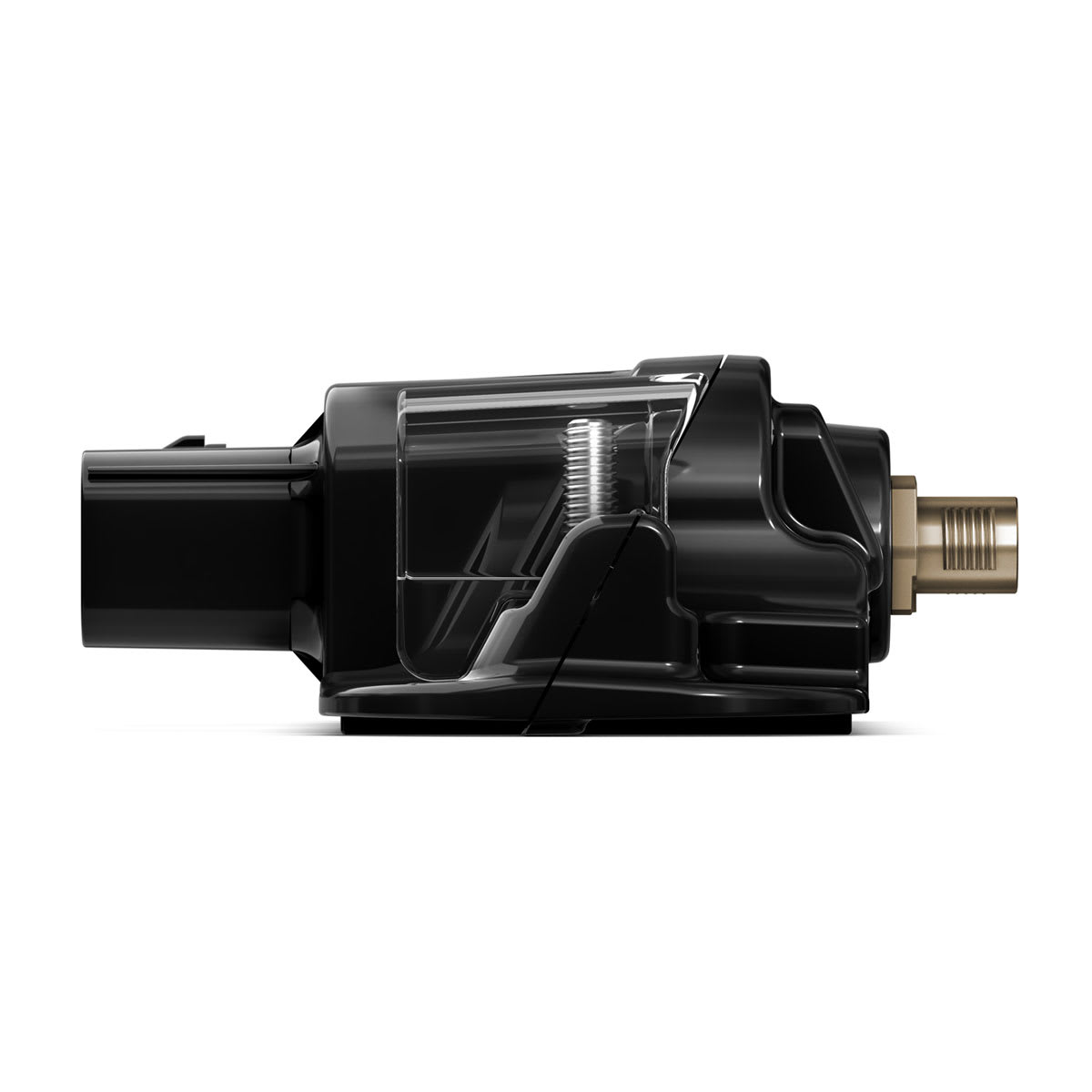

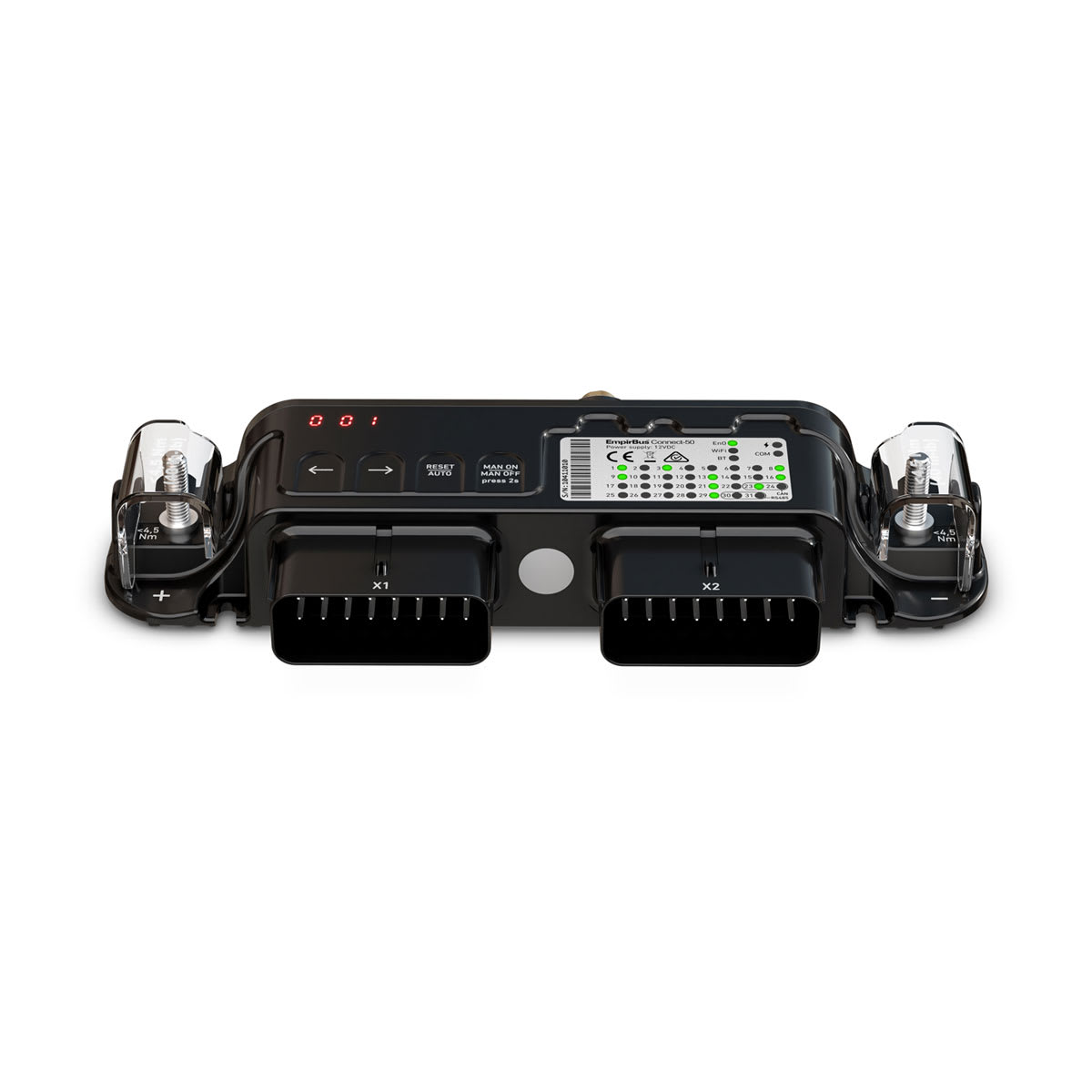

Connector |
|
| NMEA 2000 | Micro 5-pin M12 male |
| Channels | Molex MX150L 16 circuits |
| Power supply | M6 bolt (torque: <4,5 Nm) |
Input 7ch* (configurable digital/analog) |
|
|
Digital |
|
| 12V power peak/average | 170mA/1mA |
| Week signal low side/high side | 1-2mA/4-8mA |
| Current drive | 50mA |
|
Analog |
|
| Volt | 0–16 +/-1% |
| Resistance | 0–1500 ohm +/-5% |
|
Output 20ch |
|
| 16ch | High Side 10A |
| 4ch | High Side 10A/Low Side 6A |
*Dependent on model selected
**optional
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
