What You’ll Love |
|
| Built-in mapping | |
|---|---|

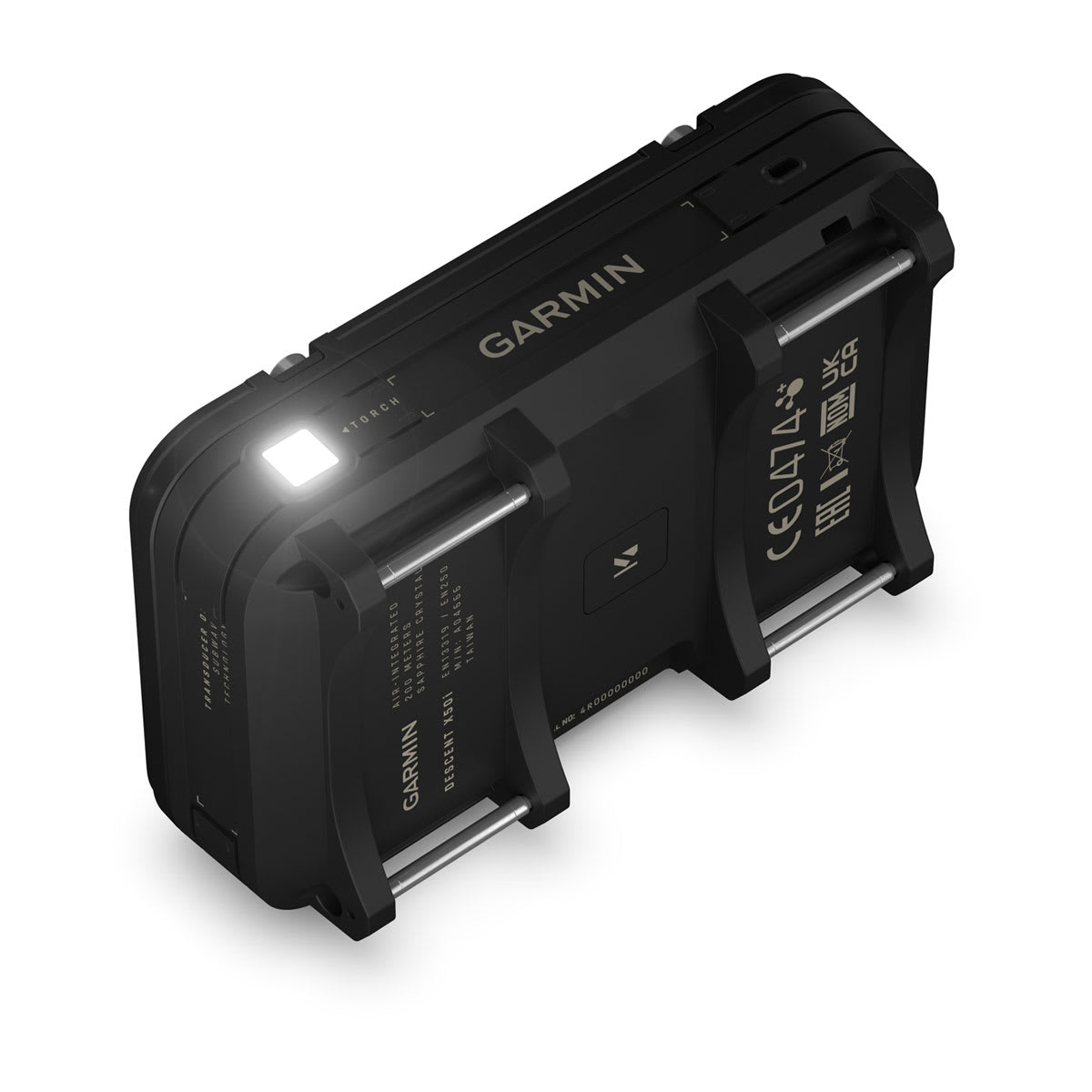

| LED flashlight | |
| Display type | LCD |
| Touchscreen | |
| Water rating | Dive (200 meters) |
General |
|

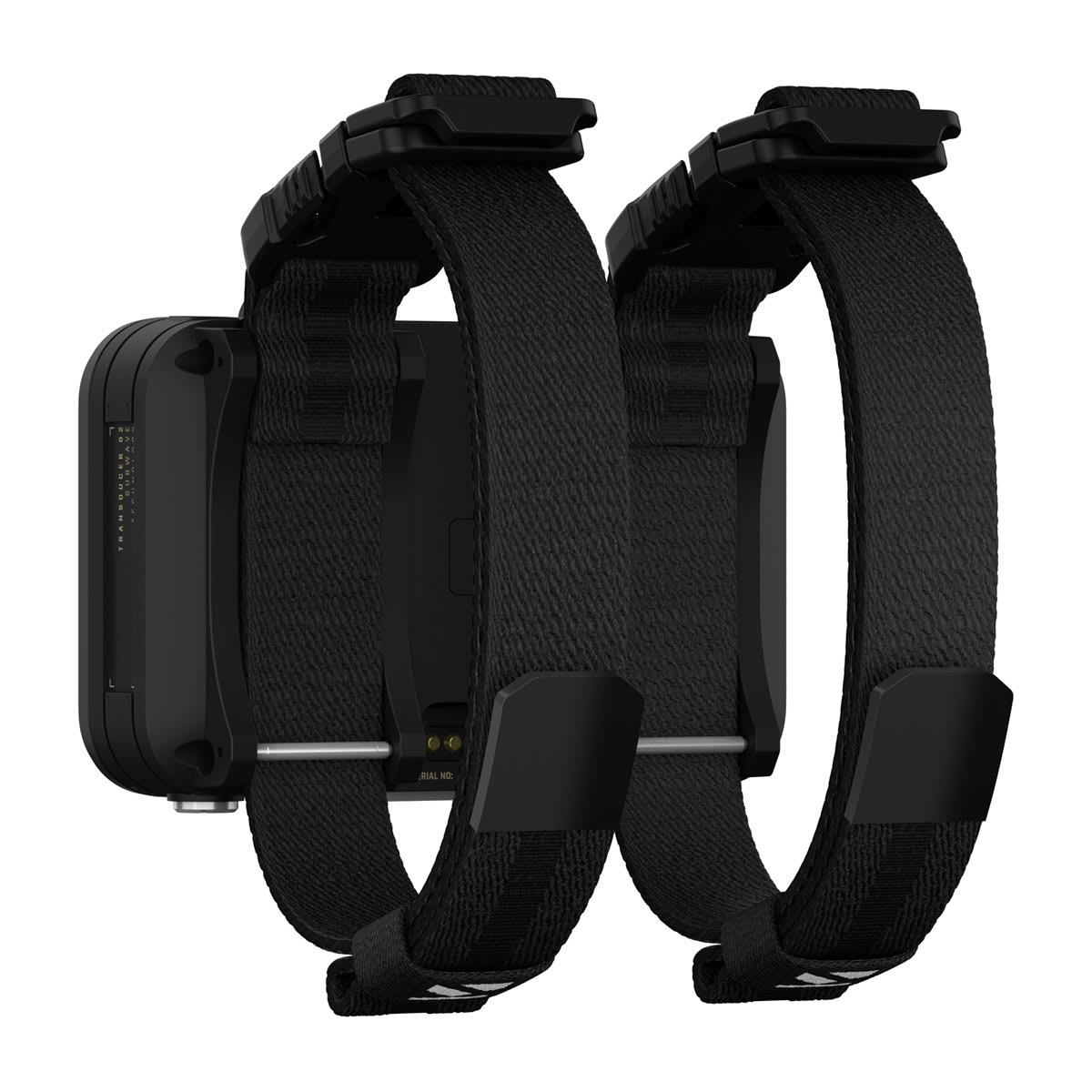

| Strap material |
elastic nylon with adjustment locking buckles |
|---|---|
| Lens Material |
sapphire crystal |
| Bezel Material |
fiber-reinforced polymer |
| Case material | fiber-reinforced polymer |
| QuickFit® watch band compatible |
yes (20 mm) |
| Physical size |
62.4 x 98.3 x 24.5 mm |
| Weight |
no bands: 253 g |
| Leakproof inductive buttons | |
| Display Size | 3.0″ diagonal |
| Display resolution | 640 x 360 pixels RGB |
| Color display | |
| Battery life |
Medium brightness (default): 16 hours |
| Charging method | proprietary clip charger |
| Memory/History | 32 GB |
Clock Features |
|
| Time/date | |
|---|---|
| GPS Time Sync | |
| Automatic daylight saving time | |
| Stopwatch | |
| Sunrise/sunset times | |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| Compass | |
| Gyroscope | |
| Accelerometer | |
| Thermometer | |
| Ambient light sensor | |
| Depth sensor | |
Daily Smart Features |
|
| Connectivity | BLUETOOTH®, ANT+®, Wi-Fi®, Subwave™ |
|---|---|
| Text response/reject phone call with text (Android™ only) | |
| Realtime settings sync with Connect™ mobile | |
| Smartphone compatibility | iPhone®, Android™ |
Tactical Features |
|
| Dual grid coordinates | |
|---|---|
Diving Features |
|
| Dive activity maximum operating depth | 200 meters |
|---|---|

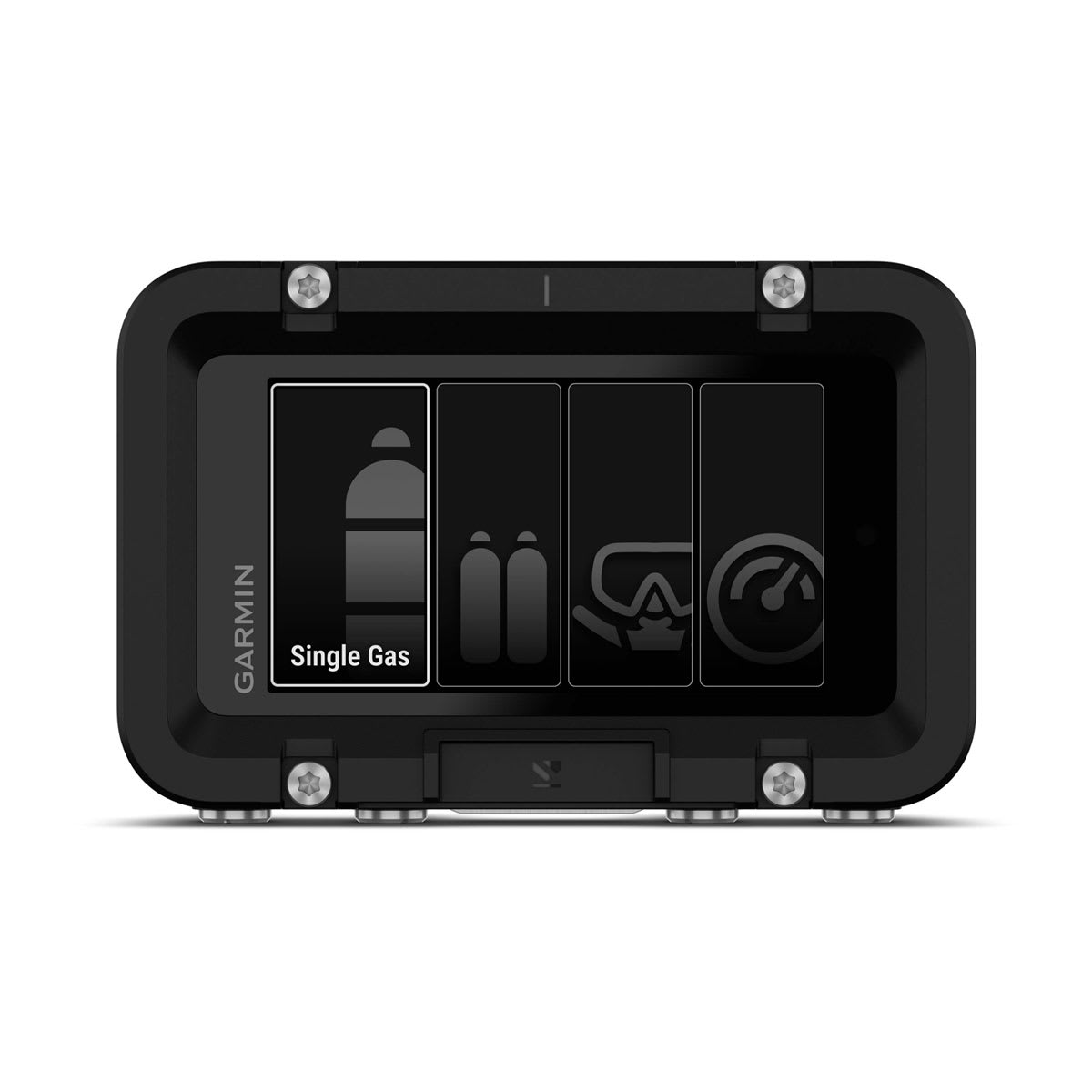

| Single-gas mode | |
| Multi-gas mode | |
| Gauge mode | |
| Decompression model | Bühlmann ZHL-16c with gradient factors |
| Nitrox support | |
| Trimix support | |
| Closed Circuit Rebreather (CCR) | |
| Gas mixes |
Air, Nitrox and Trimix, up to 100% O2; 1 bottom gas and up to 11 deco and/or backup gasses. |
| PO2 | Up to 2.0 with customizable deco PO2 setting |
| Subwave™ Support | |
| Air integration | yes (via Subwave™) |
| Number of transmitters supported | 8 |
| Gas time remaining | |
| Gas consumption rate | |
| Auto start/end dive | |
| Custom end-dive timeout | yes (20s to 10 m) |
| Safety Stop | yes (customizable off/3min/5min) |
| Deep Stops | yes (using custom gradient factors) |
| Customizable conservatism | yes (low/medium/high or custom using gradient factors) |
| Dive ascent/descent rate indicator | |
| Automatic altitude adjustment | |
| No fly time | |
| Dive planner | yes (basic NDL + multi-gas deco planner) |
| Backlight | yes (configurable time and intensity; auto-on at depth) |
| Automatically saves dive entry and exit locations | |
| Sync dive log to Dive™ Mobile app | |

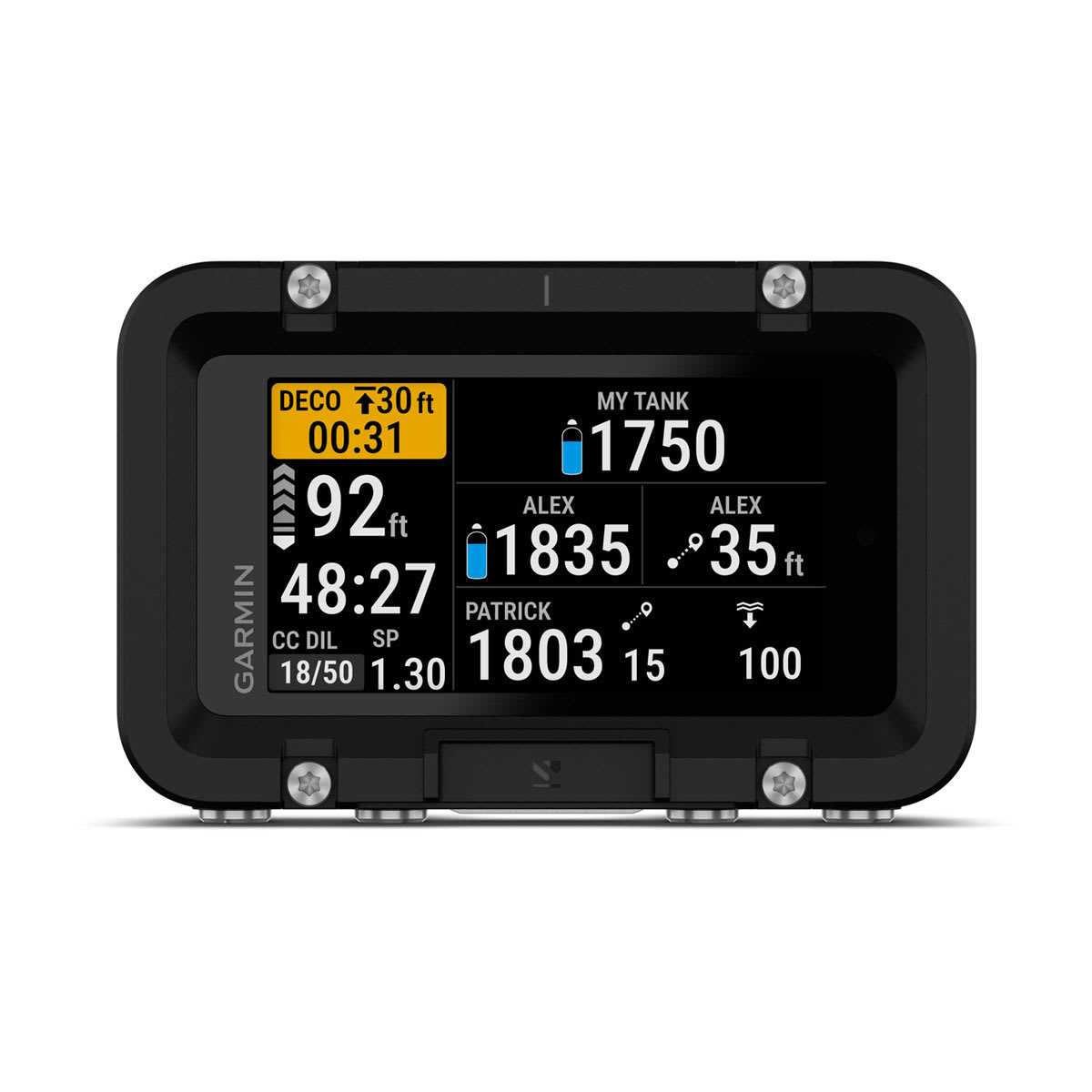

| Custom dive data screens | |
| Alerts & alarms | Audible and vibration alarms for ascent rate, PO2, CNS/OTU, NDL, deco, gas switching, tank pressure, gas consumption rate. Customizable (up to 40) audible and/or vibration per dive mode, based on depth or time |
| 3-axis dive compass | yes (with adjustable heading, quick change to 90R, 90L and reciprocal). Indicates degrees and direction back to set heading |
| Missed Deco Lockout | yes (can be disabled prior to dive with user acknowledgement) |
| Residual Tissue Loading Reset | yes (on the surface with user acknowledgement) |
| Surface diver status widget | yes (surface interval, N2/HE loading, CNS, OTU and tissue compartment status) |
Training, Planning and Analysis Features |
|
| GPS speed and distance | |
|---|---|
| Touch and/or button lock | |
| Activity history on watch | |
Outdoor Recreation |
|
| Point-to-point navigation | |
|---|---|
| Reference point | |
| Distance to destination | |
| Preloaded road and trail maps | |
| Downloadable cartography support | |
| GPS coordinates | |
