General
770 g (1.7 lbs)
Max input power 25 W
Insertion loss RX 0dB, TX < 2dB
VHF Voice |
|
| VHF frequency range Tx | 156.025–161.600 MHz |
|---|---|
| VHF frequency range Rx | 156.050–163.275 MHz |
| Dedicated Rx VHF channels | 3 |
| VHF power output | 25 W, 1 W (high, low) |
| Region | U.S., Canada, International |
| Sensitivity (12 dB SINAD) | 80 dBm |
| Adjacent VHF channel selectivity | 80 dB |
| Spurious response | 70 dB |
| VHF intermodulation | 70 dB |
| Spurious emissions | Less than -80 dBc (at 25 W) |
| Max audio output power | 10 W, < 1% THD |
| Max antenna gain | 6 dBi |
Class D DSC |
|
| Class | Class D |
|---|---|
| Dedicated Rx DSC channels | 1 |
| Sensitivity (1% BER) | -113 dBm |
| Adjacent DSC channel selectivity | 80 dB |
| DSC intermodulation | 67 dB |
AIS |
|
| Class | SOTDMA Class B |
|---|---|
| Dedicated Rx AIS channels | 2 |
| Frequency range | 156.025 – 162.025 MHz |
| AIS power output | 5W |
| AIS Sensitivity (20% PER) | -113 dBm |
| Adjacent AIS channel selectivity | 80 dB |
| AIS intermodulation | 67 dB |
GNSS |
|
| GNSS sensitivity | -167 dBm |
|---|---|
| Constellations | GPS, GLONASS, BeiDou, Galilleo |
| Channels | 72 |
| Differential support | SBAS, WAAS, EGS |
| Navigation rate | 10 Hz |
| Connector | SMA |
| Certifications | IEC 61108 |
| Features | anti-jamming, anti-spoofing |
Networking |
|
| NMEA 2000® Gateway | 1 isolated micro-C male port, AIS, GPS & MOB PGN output, gateway translations to/from NMEA 0183 |
|---|---|
| NMEA 2000® LEN | 2 |
| NMEA 0183 detail | 1 isolated NMEA 0183 port, AIS & GPS sentences, gateway translations to/from NMEA 2000®, 4800/38400 baud |
| Wireless security | WPA2 Personal |
| Cloud connectivity | LTE-Cat1 with 3G fallback (U.S., Canada), 3G (Europe, Asia), integrated SIM, integrated antenna, SMA-RP external antenna port |
| Control outputs | 2; low side driven (max 150mA) |
Sensors |
|
| NMEA 2000 Compatible | |
|---|---|
| Heading | 9-axial, accuracy: +/- 10 deg, updated rate: 10 Hz (max) |
| Barometer | update rate 1Hz max (averaged) |
| Battery voltage | measured at power input |
| External sensor inputs | 5; Digital (0-24V), analog (0-17V) |
Audio |
|
| Supported functions | VHF RX, Alarms |
|---|---|
| Amplifier | 10 W Class D, THD < 1% 4 ohm |
| External speaker | 10W, 4 ohm |
| External loudspeaker | 30W, 4 ohm |
Electrical Features |
|
| Compass-safe distance | standard 31.5″ (80 cm), steering 15.7 (40 cm) |
|---|---|

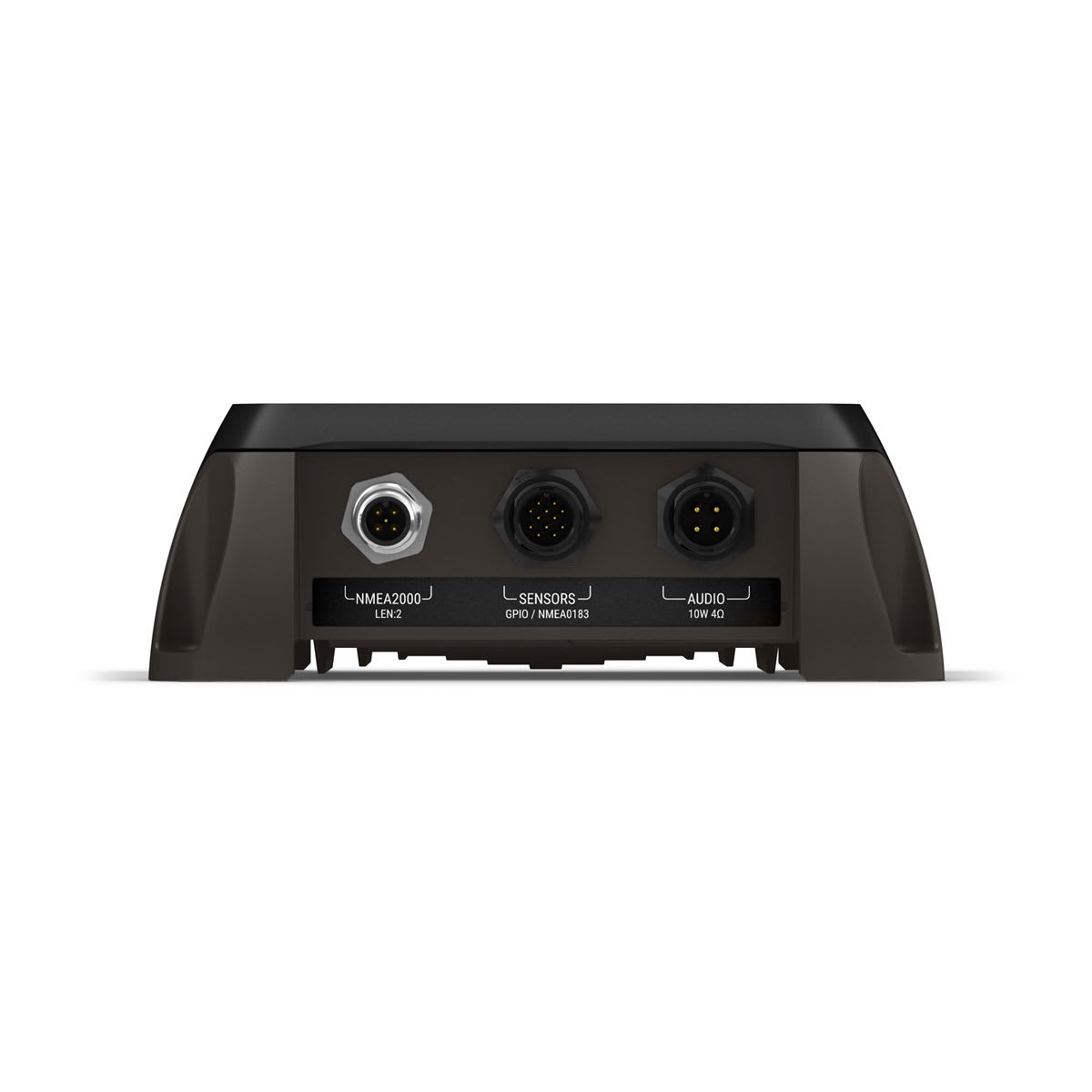

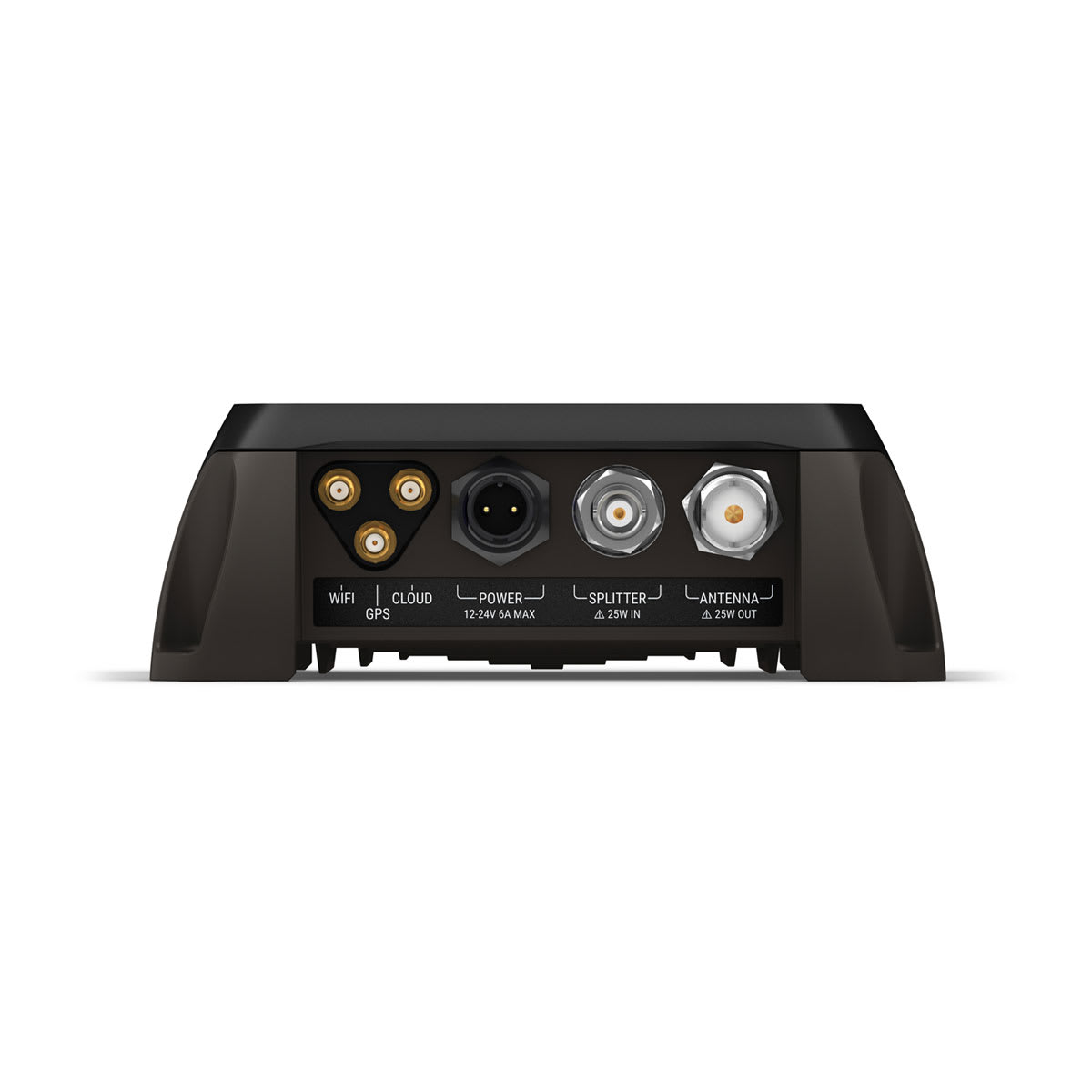

Connections |
|
| Connections Wireless Connectivity |
access point for up to 5 handsets (max 10 devices total), simultaneous client mode, 2.4 GHz, 802.11b/g/n, integrated antenna, SMA-RP external antenna port (optional) |
|---|---|
